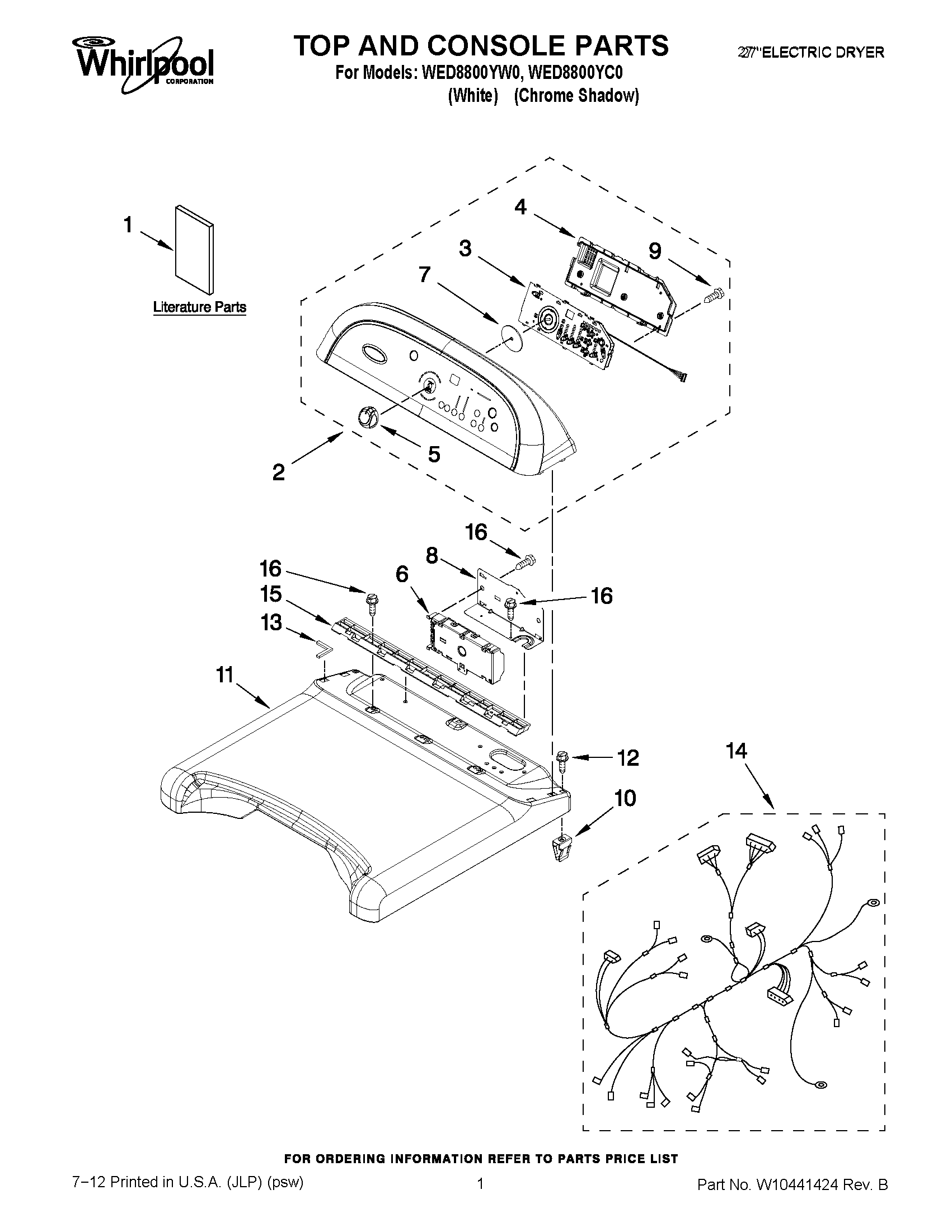

WED8800YC0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1TECH SHEET
1GUIDE, USE & CARE
2PANEL, CONSOLE (WHITE)
2PANEL, CONSOLE (CHROME SHADOW)
3WPW10388673-includeCORE Whirlpool WPW10388673 Washer Electronic Control Board + Core
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6WPW10432259-includeCORE Whirlpool WPW10432259 Refrigerator Electronic Control Board + Core
7SEAL, USER INTERFACE
8BRACKET, MACHINE CONTROLLER
9WP4449745 Whirlpool Screw
10W10112673 Whirlpool Clip
11TOP (CHROME SHADOW)
11TOP
12W10131402 Whirlpool Screw
13W10185554 Whirlpool Seal Assembly
14W10392403 Whirlpool Wire Harness
15Bracket, Console
16WP33001882 Whirlpool Screw
