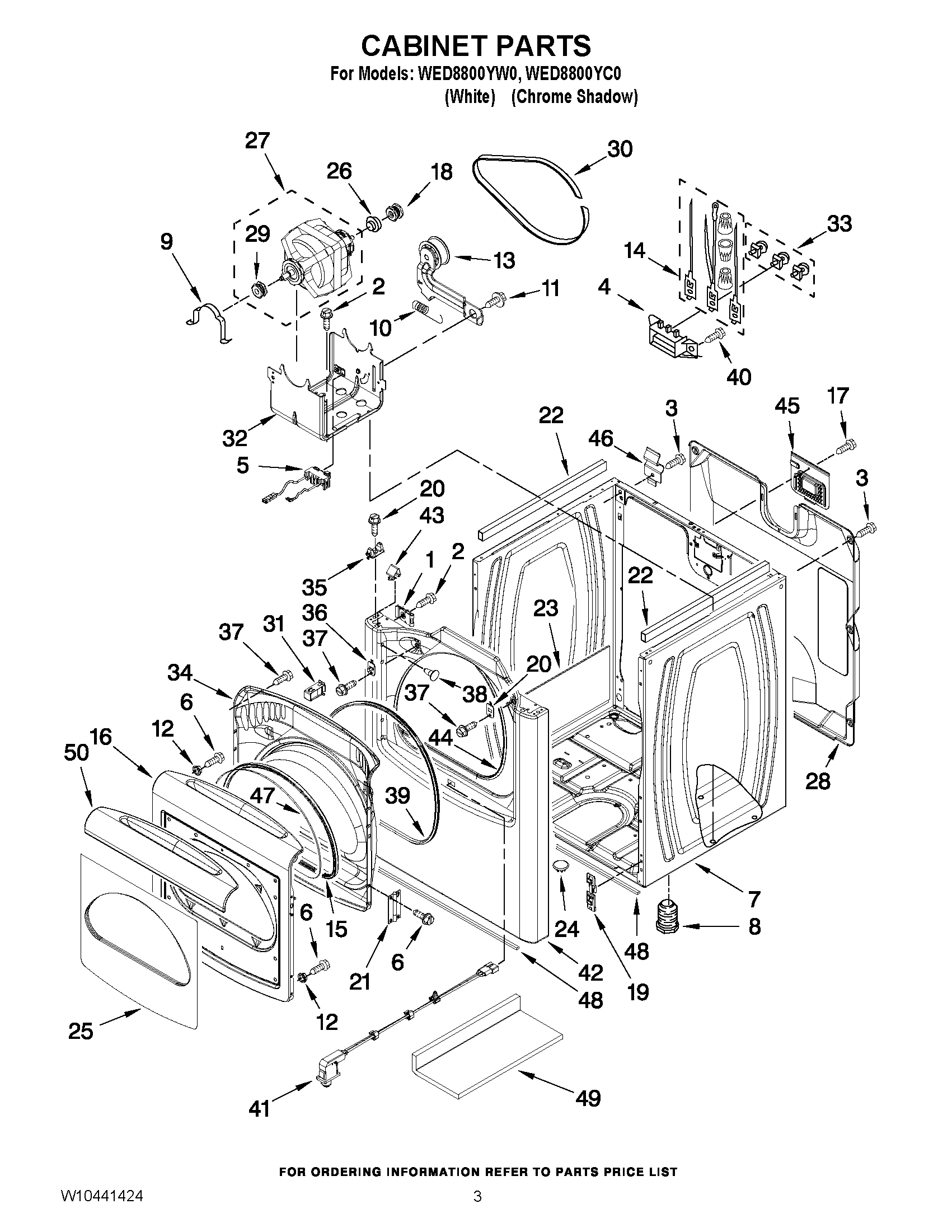

WED8800YC0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	Clip, Ground (2)
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	WPW10411937 Whirlpool Switch
6	WP488627 Whirlpool Refrigerator Screw
7	W10391494 Whirlpool Cabinet
7	W10223154 Whirlpool Cabinet Assembly
8	W10813918 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WP308499 Whirlpool Nut
13	WPW10547292 Whirlpool Dryer Idler Pulley
14	279318 Whirlpool Terminal
15	W10076050 Whirlpool Gasket
16	DOOR, OUTER (CHROME SHADOW)
16	DOOR, OUTER (WHITE)
17	W10850756 Whirlpool Screw
18	WP8547171 Whirlpool Motor Pulley
19	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
20	WPW10111888 Whirlpool Plate Assembly
21	HINGE ASSEMBLY (CHROME SHADOW)
21	WP8565018 Whirlpool Hinge
22	WPW10157932 Whirlpool Seal Foam
23	W10123957 Whirlpool Sound Absorber
24	8578560 Whirlpool Plug
25	WINDOW, OUTER DOOR
26	WP3393657 Whirlpool Belt Retainer
27	WPW10448896 Whirlpool Drive Motor
28	Panel, Rear
29	PULLEY, BLOWER
30	WP8547157 Whirlpool Dryer Drum Drive Belt
31	WPW10111905 Whirlpool Dryer Door Catch
32	WPW10308685 Whirlpool Base
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	DOOR, INNER (WHITE)
35	WP8568303 Whirlpool Lock Assembly
36	W10295405 Whirlpool Strike
37	WP3400805 Whirlpool Screw Assembly
38	PLUG, HOLE
39	W10239307 Whirlpool Door Seal
40	WP308685 Whirlpool Microwave Screw
41	W10318609 Whirlpool Dryer Door Switch
42	W10312757 Whirlpool Oven Panel
42	FRONT PANEL (CHROME SHADOW)
43	WP8576625 Whirlpool Lock
44	W10044490 Whirlpool Seal Assembly
45	WPW10110241 Whirlpool Cover Assembly
46	WP8066217 Whirlpool Hinge
47	WPL 8558846
48	WPW10224768 Whirlpool Foam Spill Guard Seal
49	W11037143 Whirlpool Shield
50	WPW10402478 Whirlpool Handle
