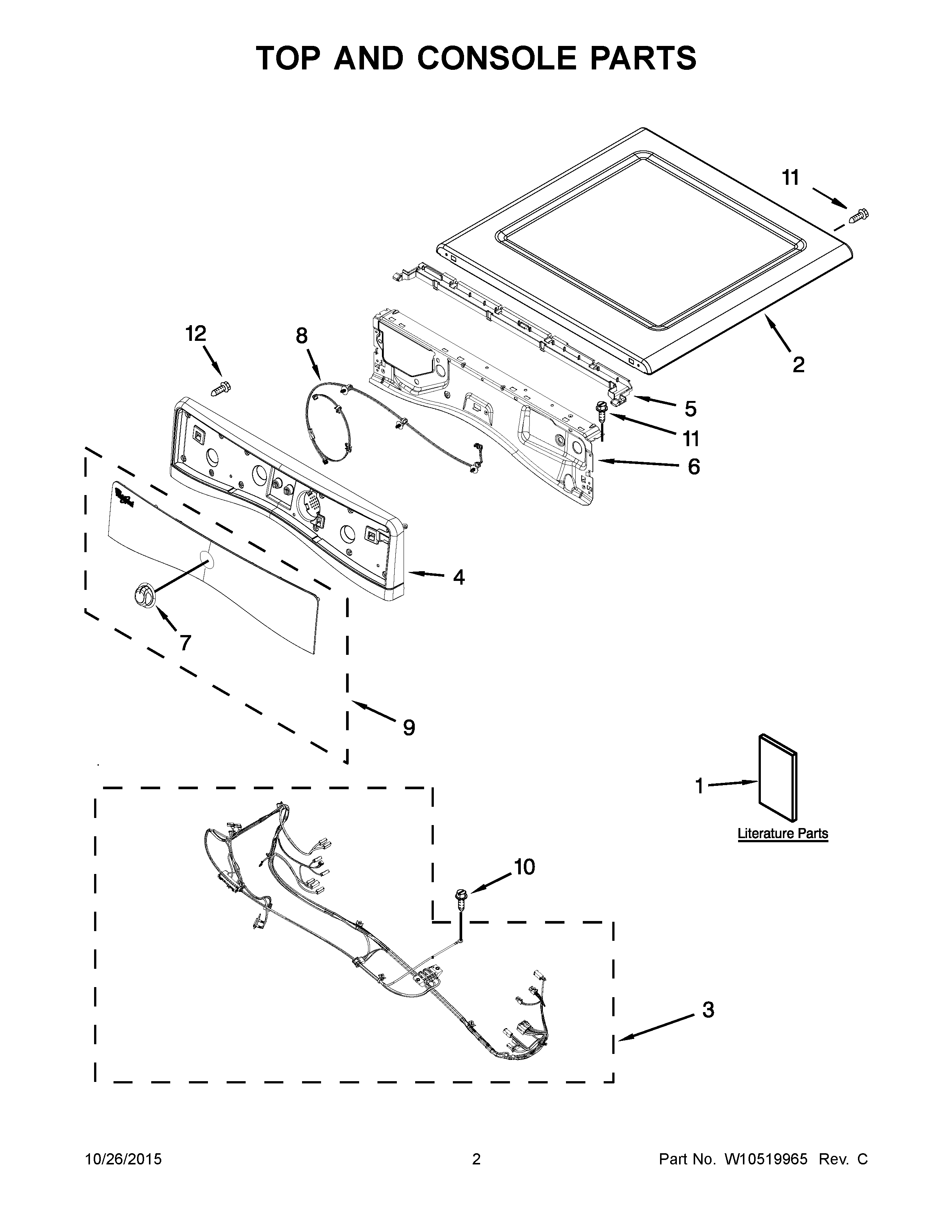

WED88HEAC0 02 – TOP AND CONSOLE PARTS

WED88HEAC0 02 – TOP AND CONSOLE PARTS

Written by

in

WED88HEAC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1ATECH SHEET
1BINSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
2AWPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN
4AW10876224 Whirlpool Console
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7KNOB ASSEMBLY
8W10443062 Whirlpool Wire Harness
9W10446435 Whirlpool Control Panel
9AIML ASSEMBLY (CHROME SHADOW)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
