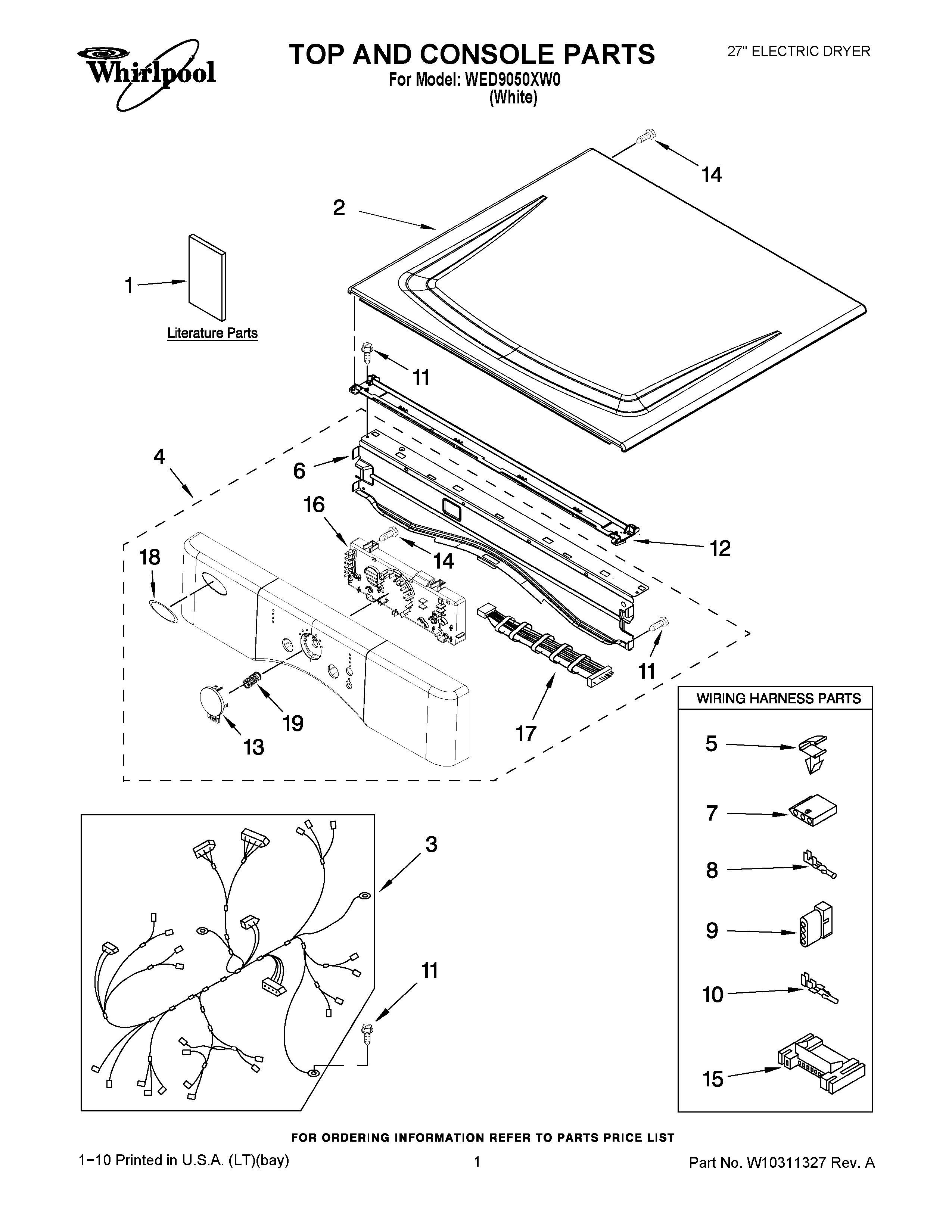

WED9050XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, QUICK START
1USE & CARE GUIDE
2WPW10336080 Whirlpool Top Assembly
3HARNESS, MAIN
4WPW10215458 Whirlpool Console
5WP3394427 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13W10212800 Whirlpool Push Button Switch
14W10006580 Whirlpool Screw
153395683 Whirlpool Connector
16ASSEMBLY, USER INTERFACE
17W10259049 Whirlpool Wire Harness
18Medallion
19W10215807 Whirlpool Spring
