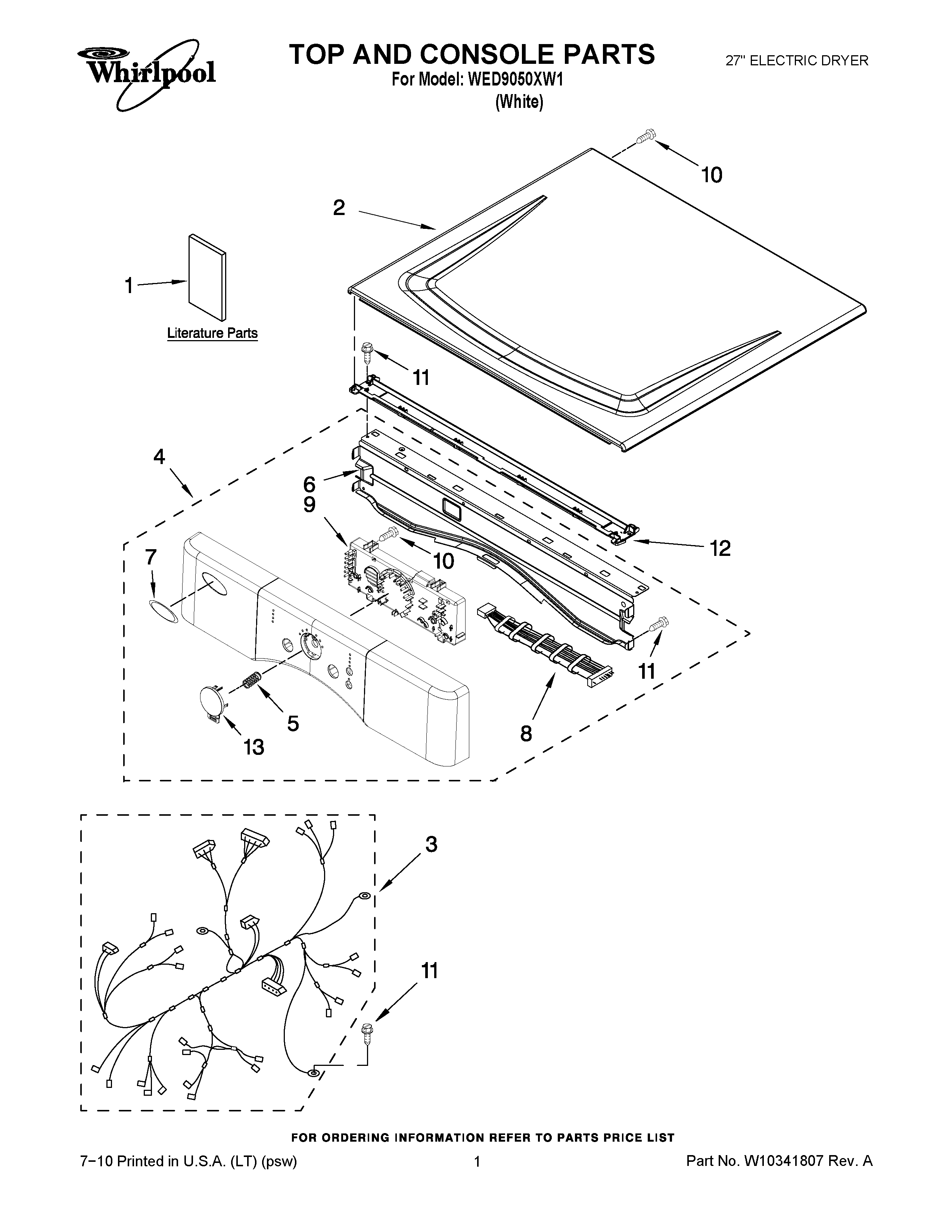

WED9050XW1 01 – TOP AND CONSOLE PARTS

WED9050XW1 01 – TOP AND CONSOLE PARTS

Written by

in

WED9050XW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, QUICK START
1USE & CARE GUIDE
2WPW10336080 Whirlpool Top Assembly
3HARNESS, MAIN
4WPW10215458 Whirlpool Console
5W10215807 Whirlpool Spring
6WP8565237 Whirlpool Bracket Assembly
7Medallion
8W10259049 Whirlpool Wire Harness
9ASSEMBLY, USER INTERFACE
10W10006580 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13W10212800 Whirlpool Push Button Switch
