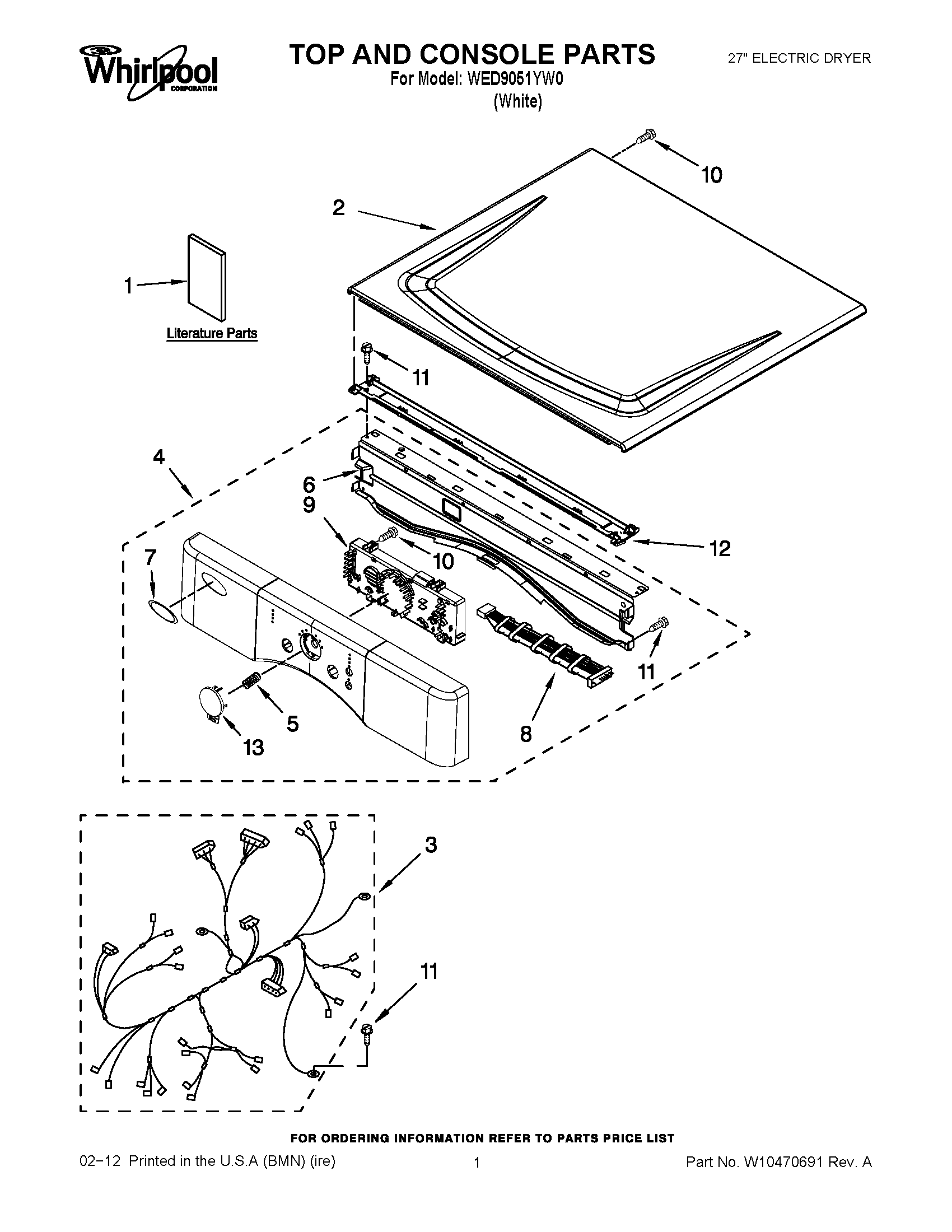

WED9051YW0 01 – TOP AND CONSOLE PARTS

WED9051YW0 01 – TOP AND CONSOLE PARTS

Written by

in

WED9051YW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1USE & CARE GUIDE
1INSTALLATION, INSTRUCTION
2WPW10336080 Whirlpool Top Assembly
3HARNESS, MAIN
4WPW10444970 Whirlpool Console
5W10215807 Whirlpool Spring
6WP8565237 Whirlpool Bracket Assembly
7Medallion
8W10259049 Whirlpool Wire Harness
9WPW10444971-includeCORE Whirlpool WPW10444971 Refrigerator Electronic Control Board + Core
10W10006580 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13W10212800 Whirlpool Push Button Switch
