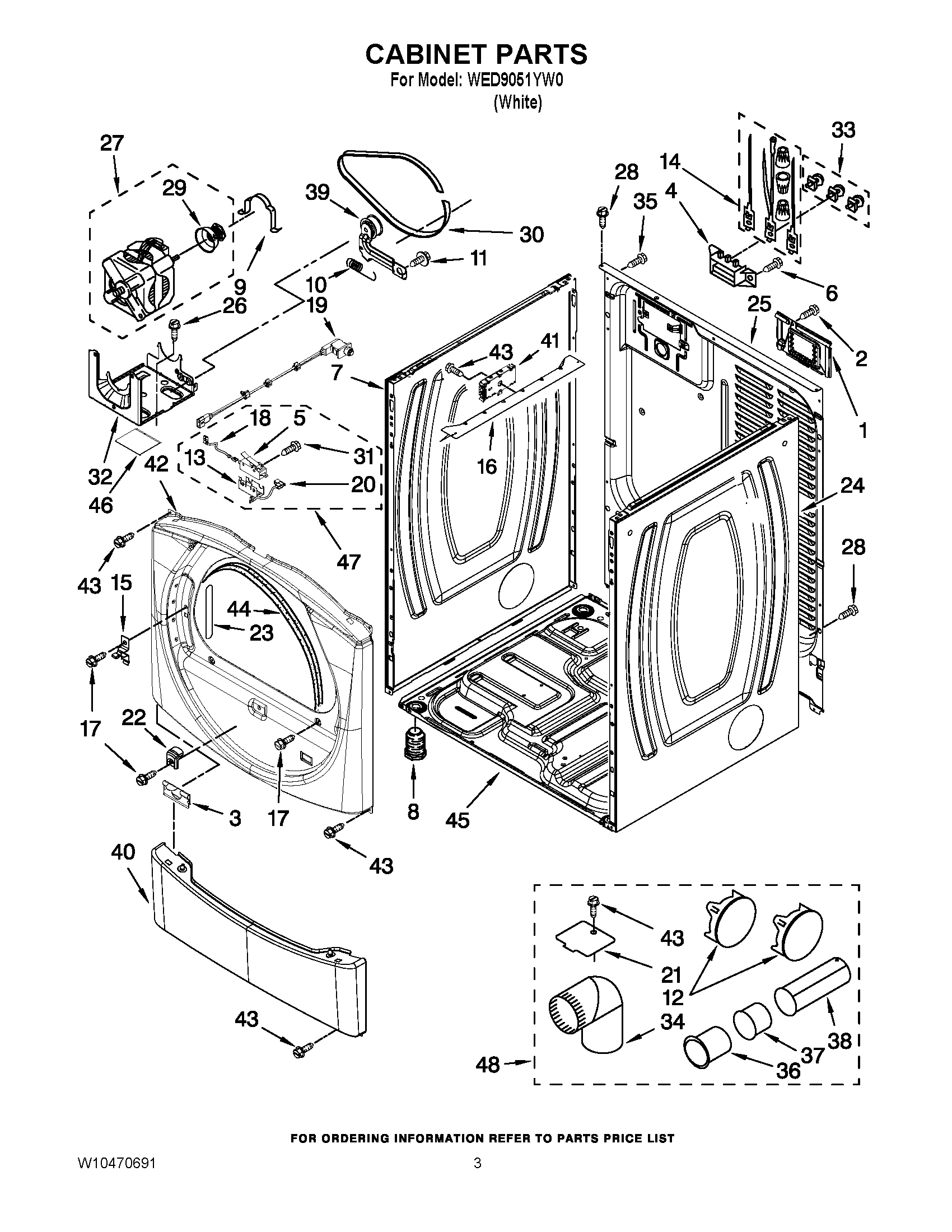

WED9051YW0 02 – CABINET PARTS

Products

Position	Product
NI	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
NI	49621 Whirlpool Leveling Feet
1	WPW10119283 Whirlpool Terminal Cover
2	WP90767 Whirlpool Screw
3	W11295573 Whirlpool Clip
4	WP3397659 Whirlpool Terminal Block
5	WP8564010 Whirlpool Plug Switch
6	WP693995 Whirlpool Screw
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	8564011 Whirlpool Bracket
14	279318 Whirlpool Terminal
15	WP8565122 Whirlpool Strike Assembly
16	WP8563727 Whirlpool Bracket
17	WP308685 Whirlpool Microwave Screw
18	W10167613 Whirlpool Wire
19	W10318609 Whirlpool Dryer Door Switch
20	WIRE, MOTOR TO BELT SWITCH
21	WPW10354249 Whirlpool Cover
22	8565083 Whirlpool Ramp Assembly
23	W10085210 Whirlpool Label
24	W10542714 Whirlpool Panel
25	Panel, Rear
26	SCREW
27	W11234001 Whirlpool Drive Motor
29	WP8066184 Whirlpool Dryer Motor Pulley
30	WPW10131172 Whirlpool Belt
31	W10002600 Whirlpool Screw
32	W11676491 Whirlpool Base
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	W10850756 Whirlpool Screw
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	WPW10344192 Whirlpool Idler Pulley
40	WP8540621 Whirlpool Toe Panel
41	WPW10450081-includeCORE Whirlpool WPW10450081 Washer Electronic Control Board + Core
42	W10251264 Whirlpool Panel
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
45	W11215531 Whirlpool Base
46	W11113654 Whirlpool Pad
47	W11247665 Whirlpool Switch
