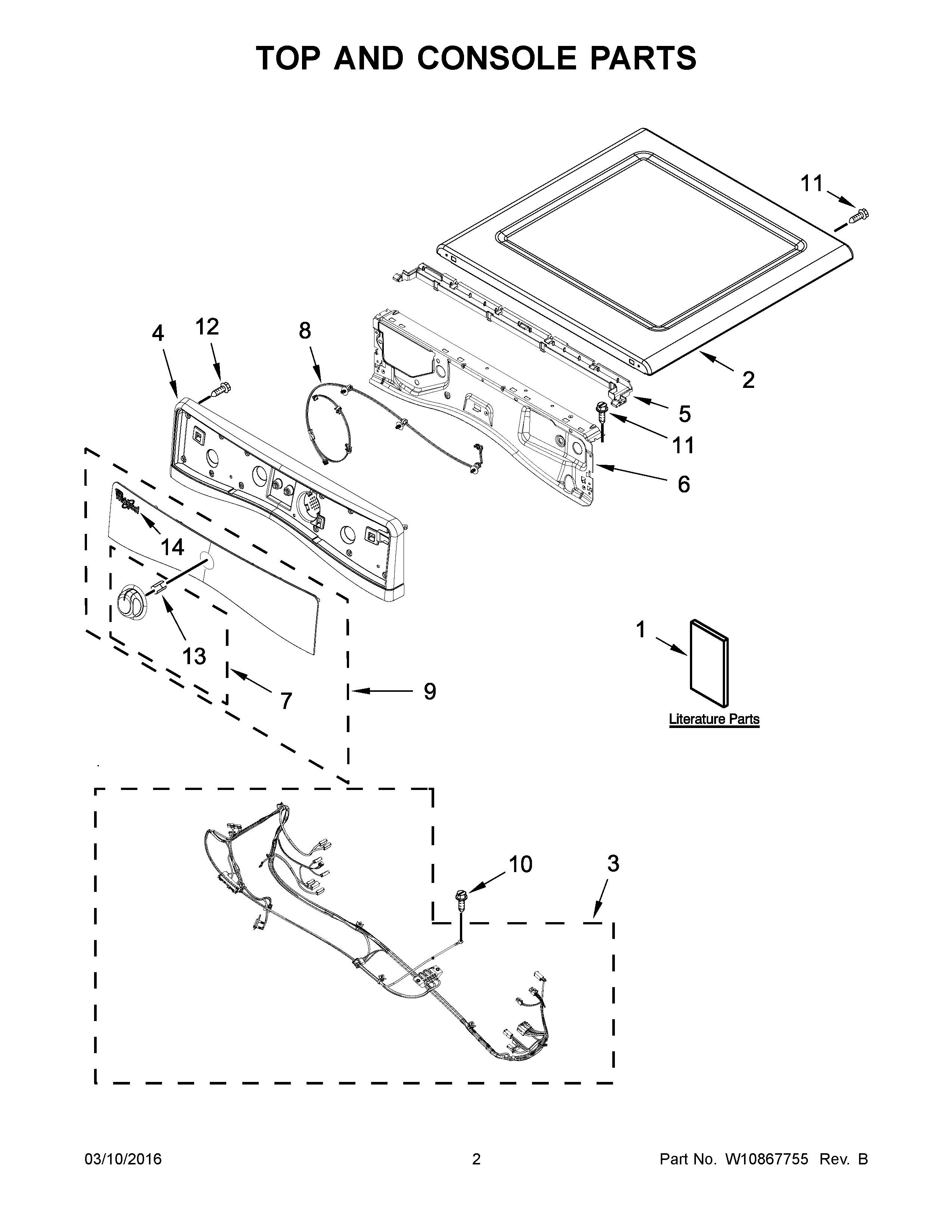

WED90HEFC0 02 – TOP AND CONSOLE PARTS

WED90HEFC0 02 – TOP AND CONSOLE PARTS

Written by

in

WED90HEFC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
NIW10510982 Whirlpool Nameplate
1AINSTALLATION INSTRUCTIONS
1BTECH SHEET
1USE AND CARE GUIDE
1CQUICK START GUIDE
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3W10637533 Whirlpool Wire Harness
4AW10876224 Whirlpool Console
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
8W10837344 Whirlpool Wire Harness
9AW10919215 Whirlpool Control Panel
9W10919212 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14W11178521 Whirlpool Dishwasher Nameplate
