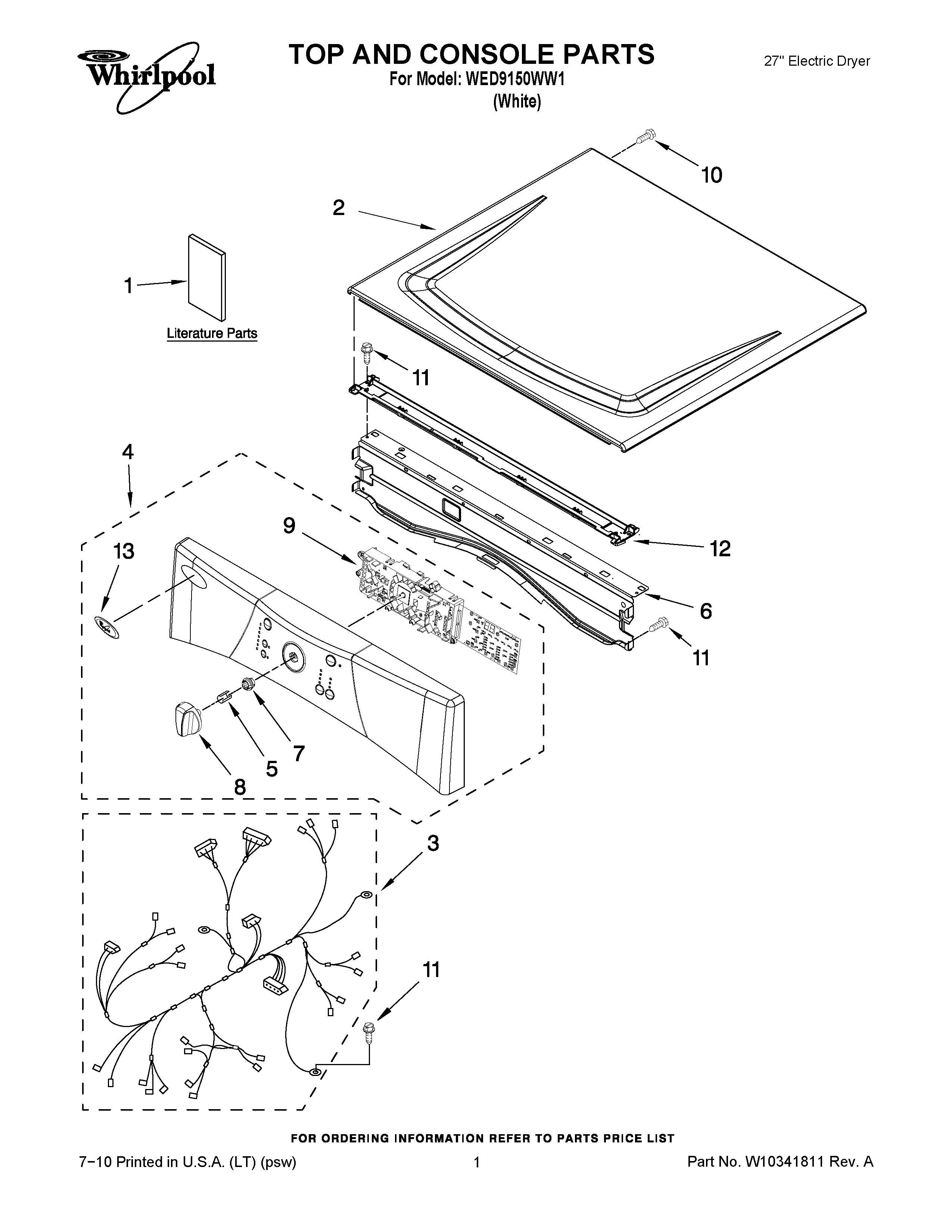

WED9150WW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	TECH SHEET
1	GUIDE, QUICK START
1	USE & CARE GUIDE
2	WPW10336080 Whirlpool Top Assembly
3	HARNESS, MAIN
4	PANEL, CONSOLE
5	W10153920 Whirlpool Clip
6	WP8565237 Whirlpool Bracket Assembly
7	BUSHING, SHAFT KNOB
8	WPW10236098 Whirlpool Knob Assembly
9	ASSEMBLY, USER INTERFACE
10	Screw, 2-28 x 1/2
11	WP488729 Whirlpool Refrigerator Door Screw
12	WPW10266747 Whirlpool Channel
13	Medallion
