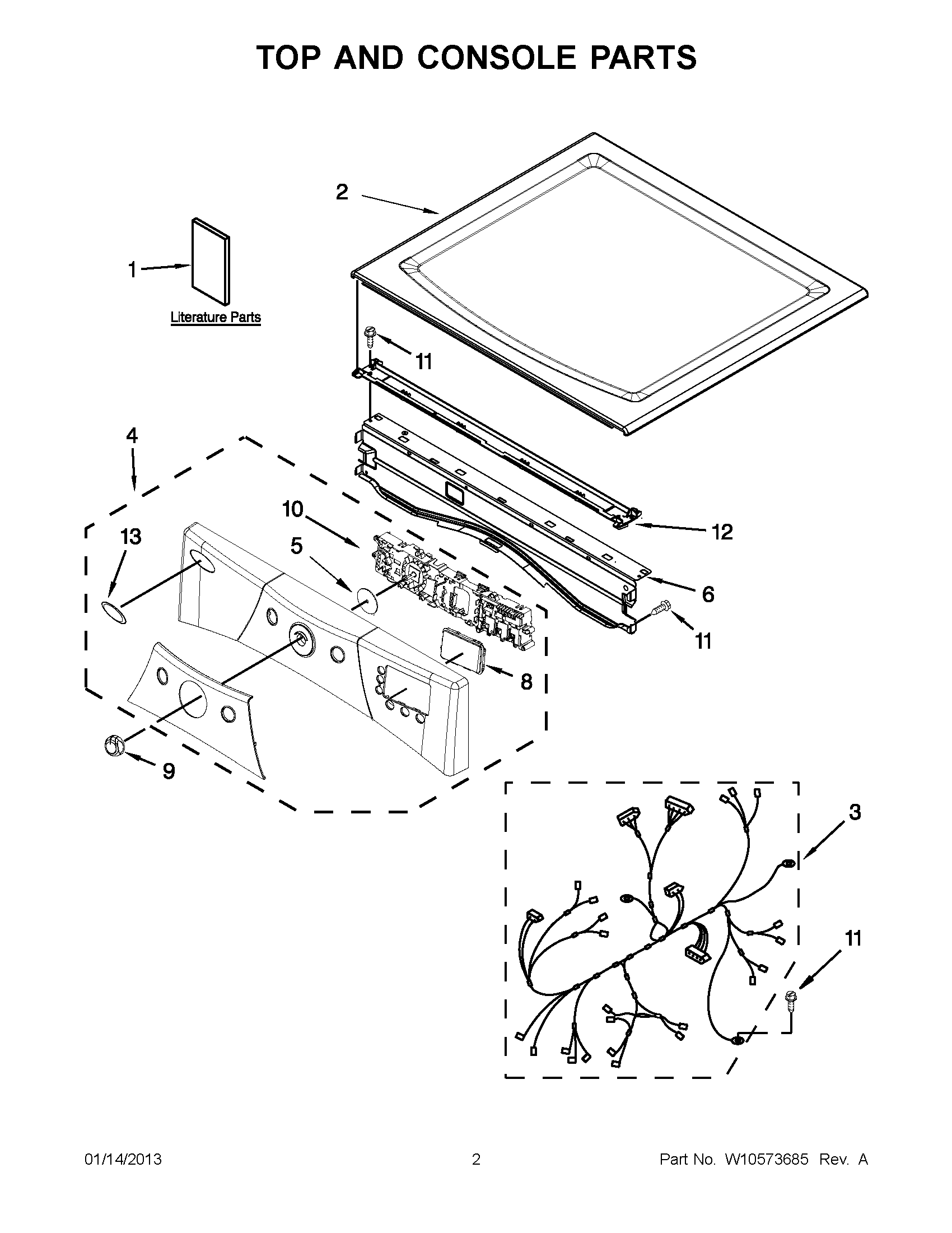

WED9151YW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION, INSTRUCTION
1USE & CARE GUIDE
2WPW10336080 Whirlpool Top Assembly
3W10555104 Whirlpool Wire Harness
4PANEL, CONSOLE
5SEAL, USER INTERFACE
6WP8565237 Whirlpool Bracket Assembly
8WINDOW, DISPLAY
9WPW10416463 Whirlpool Knob
10ASSEMBLY, USER INTERFACE
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13BADGE
