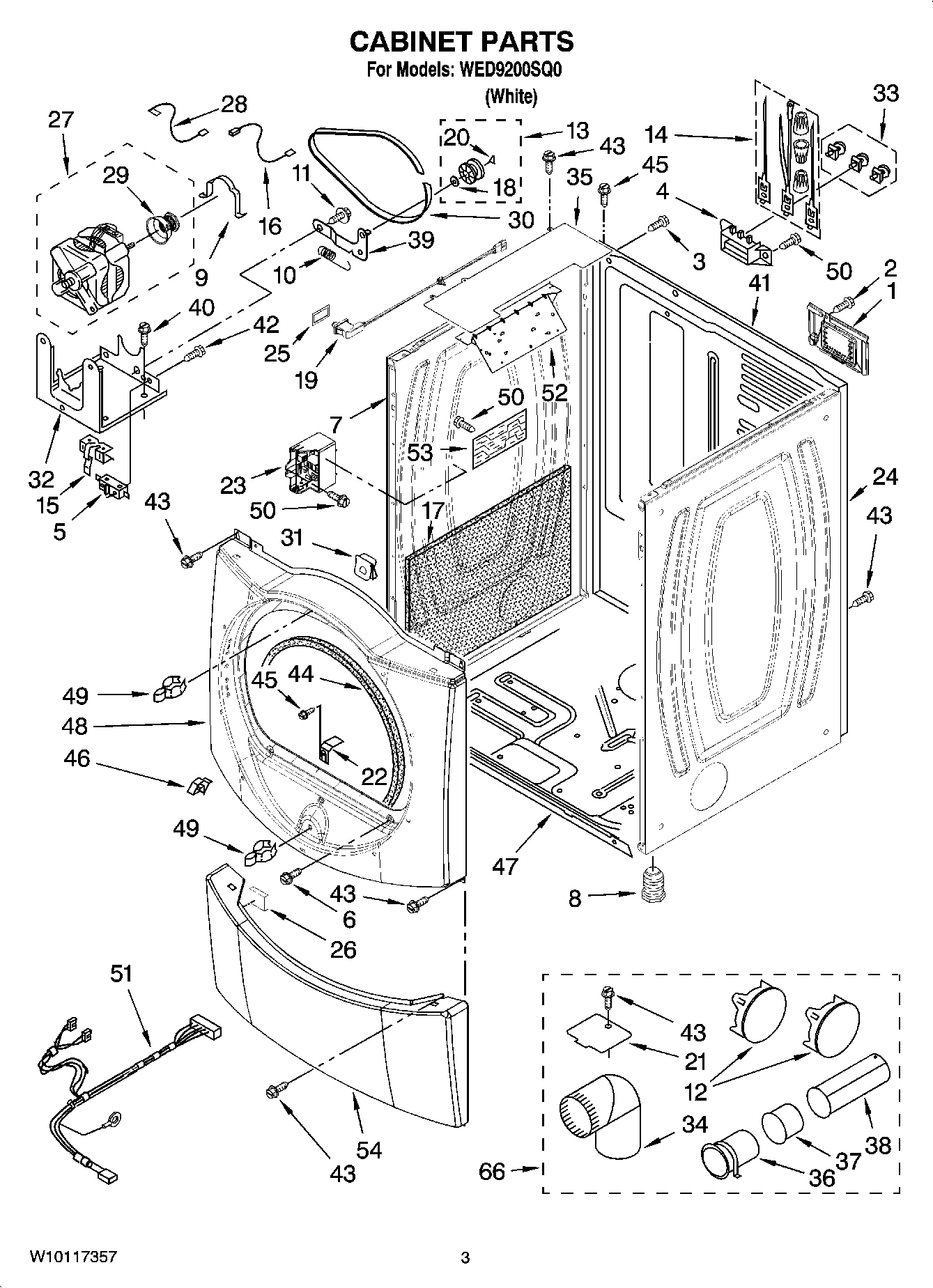

WED9200SQ0 02 – CABINET PARTS

Products

PositionProduct
1WPW10119283 Whirlpool Terminal Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5279782 Whirlpool Lid Switch
6WP308685 Whirlpool Microwave Screw
7Panel, Side (L.H.)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15WP8066120 Whirlpool Lever Assembly
16Wire, Belt Switch
17Sound Panel
18WPW10121334 Whirlpool Washer
19Assembly, Door Switch
21WPW10354249 Whirlpool Cover
22Ramp, Door
23Power Cube
24Panel, Side (R.H.)
25Seal, Door Switch
263389682 Whirlpool Spacer
27279787 Whirlpool Dryer Drive Motor
283398948 Whirlpool Wire
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31Clip, Mounting (2)
32WP3387118 Whirlpool Base Assembly
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35Cover, Control Bracket
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40SCREW
41WPL W10133207
42WP98129 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
46W11295573 Whirlpool Clip
47Base, Cabinet
48WPL 8578388
49279570 Whirlpool Dryer Door Latch Kit
51Harness, Digital Interface
52WP8563727 Whirlpool Bracket
53Control Board
54Toe, Panel
54WPL ARI164766A
66W10470674 Whirlpool Dryer Side Vent Exhaust Kit
