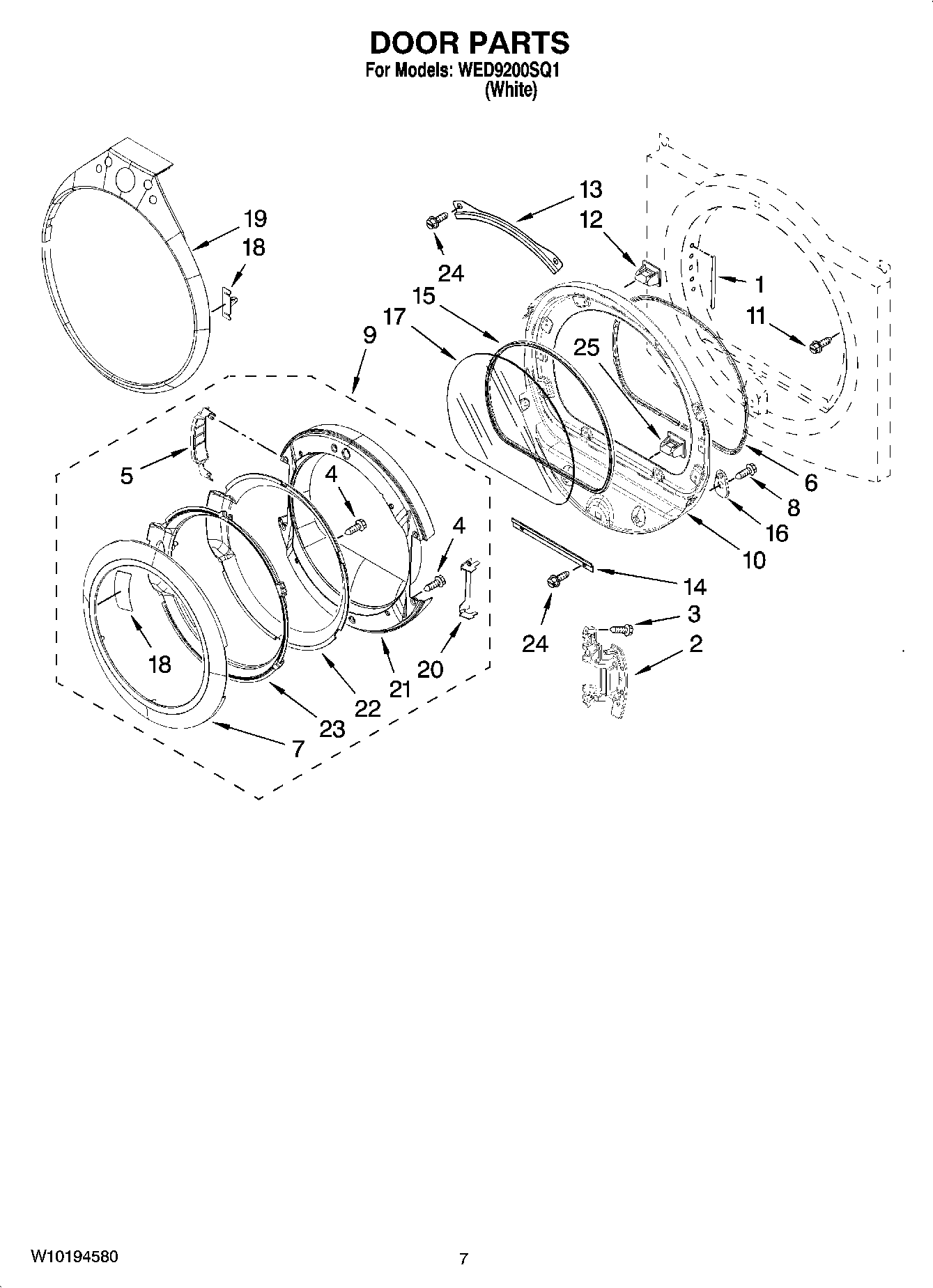

WED9200SQ1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	8541503 Whirlpool Stacking Kit
	8212450A Whirlpool Dryer Rack Assembly
	ACCESSORY PARTS, KIT, HOLD DOWN
	PAINT, TOUCH-UP (1/2oz.) (Black)
	4392067 Whirlpool Dryer Repair Kit
	WPL 786020
	PAINT, BULK (1 qt.) (Black (Uncut))
	ACCESSORY PARTS
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	8579666ARP Whirlpool Door Kit
1	W10085210 Whirlpool Label
2	WPW10310366 Whirlpool Hinge
3	WPW10159996 Whirlpool Screw
4	SCREW
5	(Following Parts Not Included)
5	COVER HINGE (STATIONARY (RH))
5	Cover-Hinge, Stationary (LH)
6	WPW10139457 Whirlpool Door Seal
7	HANDLE RING, DOOR
8	Screw, 1/4-20 x 1/2
9	Door Assembly (Outer)
10	Door Assembly (Inner) (Includes Illus. 12 & 18)
11	WP355515 Whirlpool Screw
12	279570 Whirlpool Dryer Door Latch Kit
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	Screw-Plug
17	WP8566254 Whirlpool Window Assembly
18	WPW10129065 Whirlpool Clip
19	Tear-Drop Trim & Clip Assembly
20	Door Shield
21	Door, Intermediate
22	Door Mask
23	Door Screen
24	WP3373329 Whirlpool Dishwasher Screw
