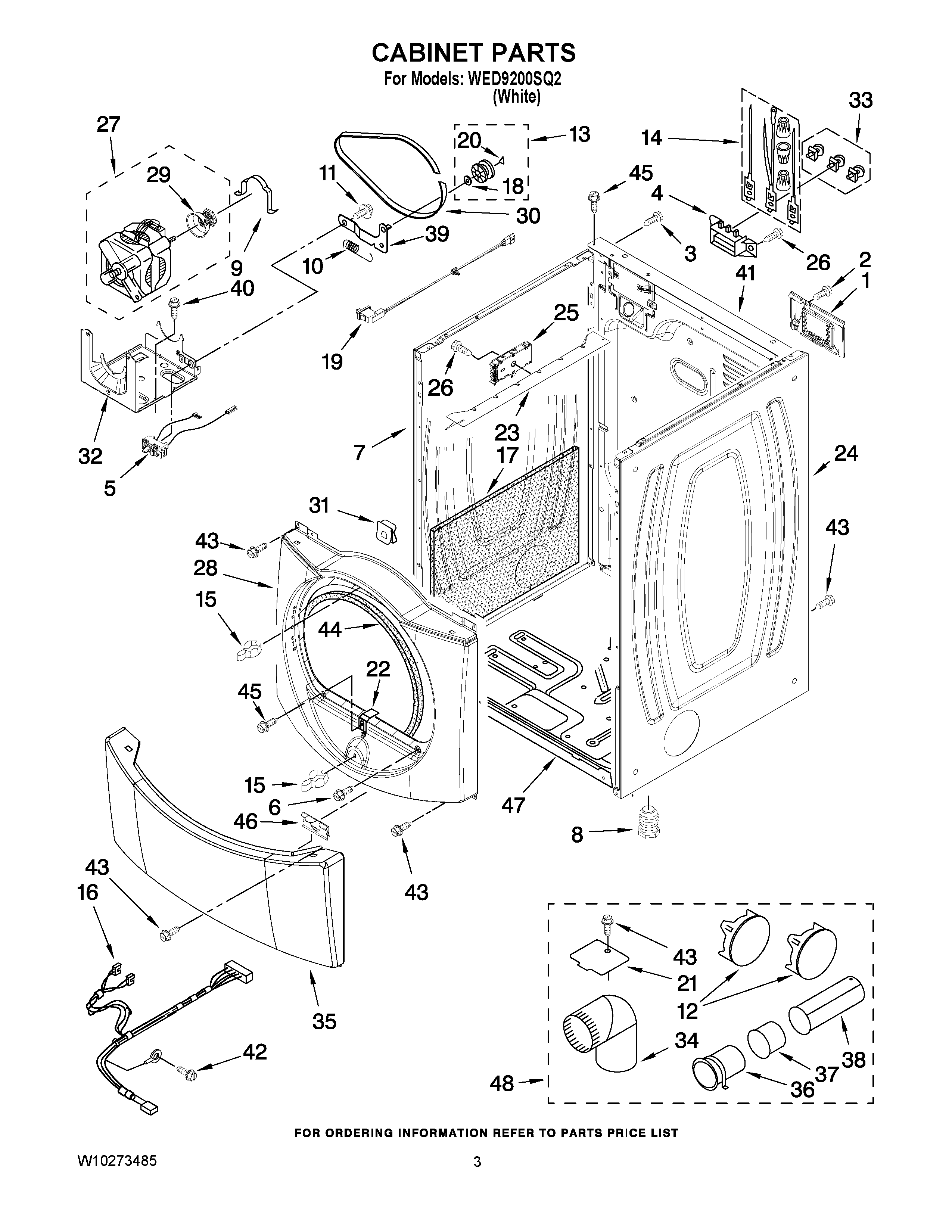

WED9200SQ2 02 – CABINET PARTS

Products

PositionProduct
1WPW10119283 Whirlpool Terminal Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5WPW10411937 Whirlpool Switch
6WP308685 Whirlpool Microwave Screw
7W11233548 Whirlpool Panel
849621 Whirlpool Leveling Feet
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15279570 Whirlpool Dryer Door Latch Kit
16W10242904 Whirlpool Wire Harness
17W10123956 Whirlpool Sound Absorber
18WPW10121334 Whirlpool Washer
19W10128087 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22Ramp, Door
23WP8563727 Whirlpool Bracket
25CONTROL BOARD
27279787 Whirlpool Dryer Drive Motor
28WPL W10180423
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31Clip, Mounting (2)
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35TOE-PANEL (WHITE)
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40SCREW
41PANEL, REAR
42WP693995 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
46W11295573 Whirlpool Clip
47BASE, CABINET
48W10470674 Whirlpool Dryer Side Vent Exhaust Kit
