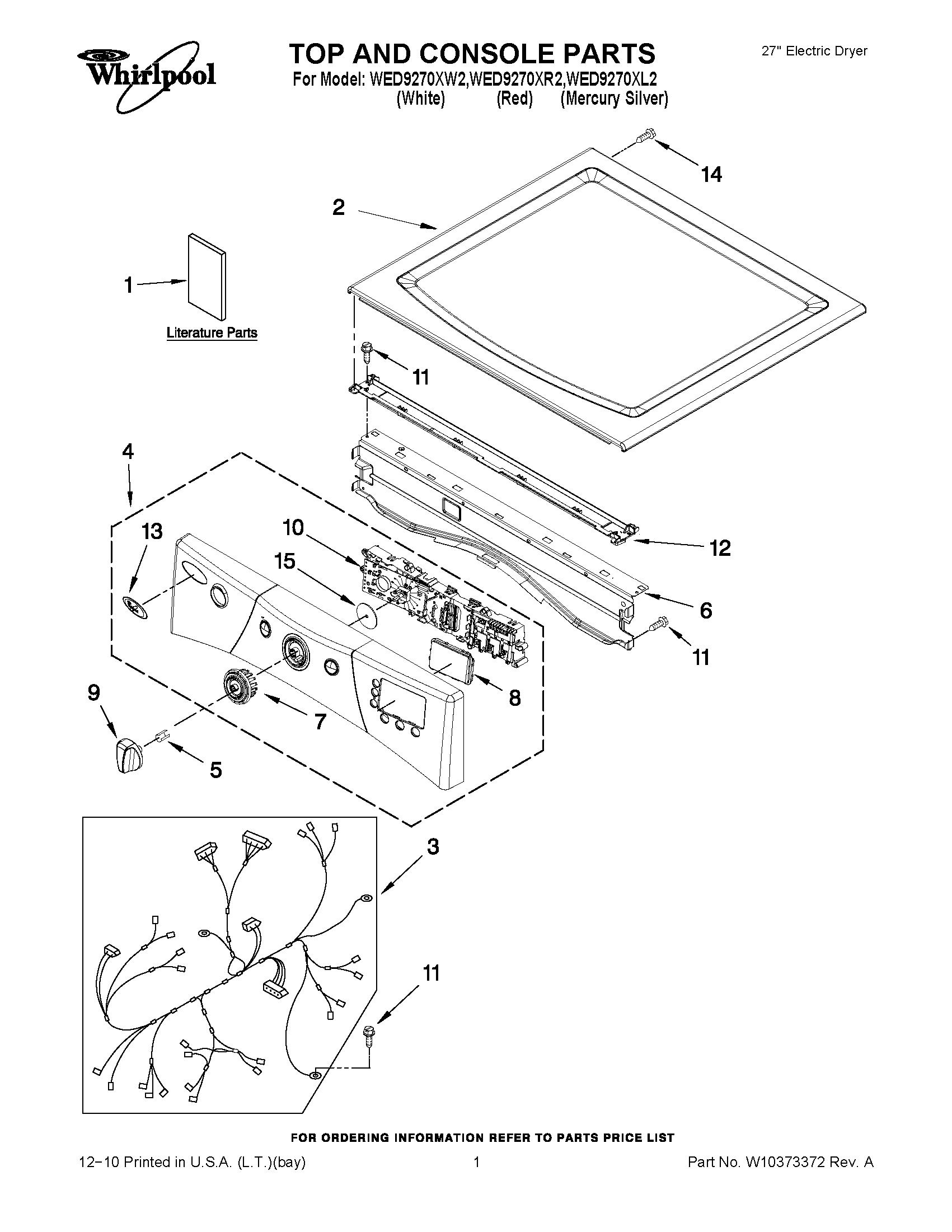

WED9270XL2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, QUICK START
1TECH SHEET
1USE & CARE GUIDE
2TOP (RED)
2WPW10336080 Whirlpool Top Assembly
2WPW10336091 Whirlpool Top
3HARNESS, MAIN
4PANEL, CONSOLE (WHITE)
4PANEL, CONSOLE (SILVER)
4WPW10215463 Whirlpool Console Assembly
5W10153920 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7W10237301 Whirlpool Ring
8WINDOW, DISPLAY
9WPW10247262 Whirlpool Knob
9WPW10215781 Whirlpool Knob
10WPW10215475 Whirlpool Electronic Control Board
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13Medallion
14Screw, 2-28 x 1/2
15SEAL, USER INTERFACE
