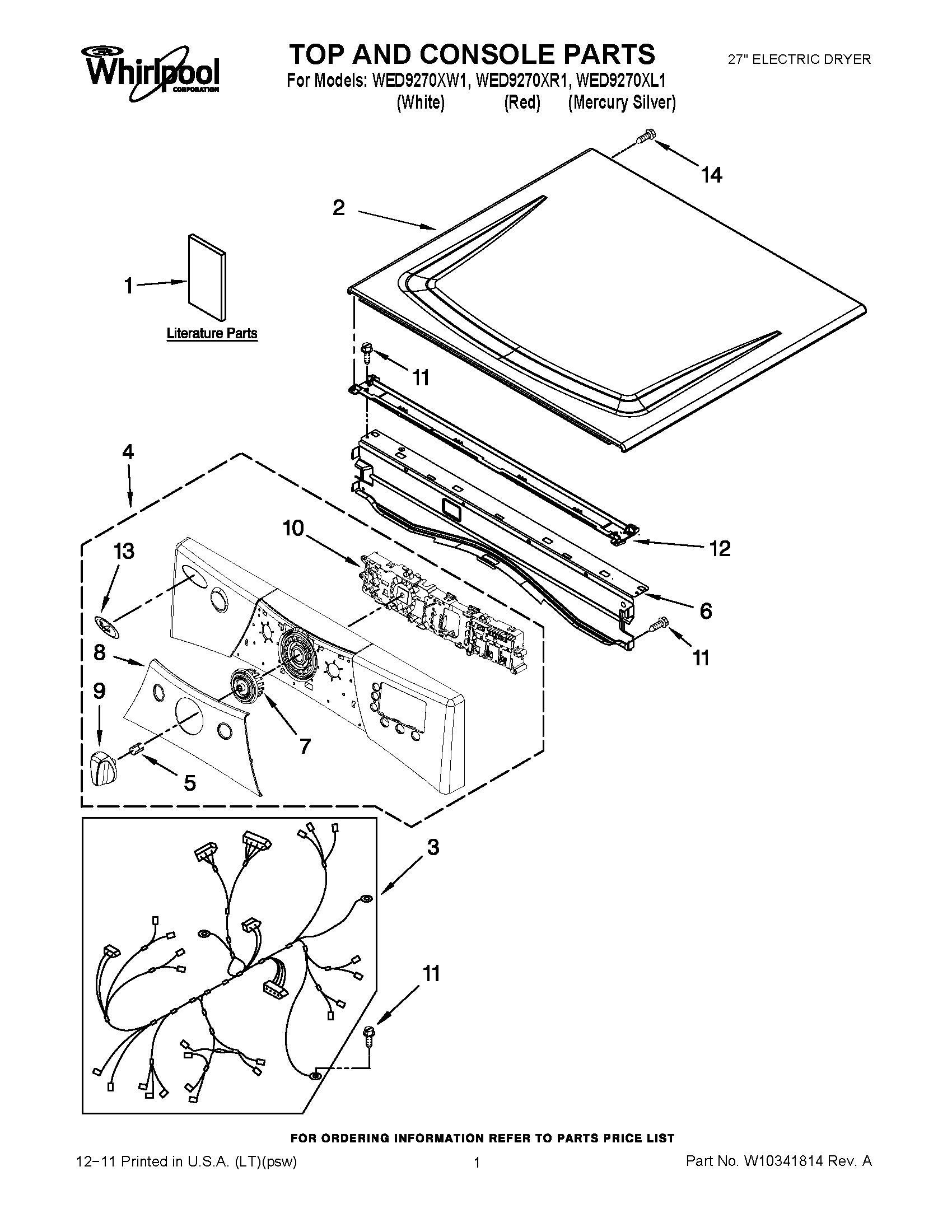

WED9270XR1 01 – TOP AND CONSOLE PARTS

WED9270XR1 01 – TOP AND CONSOLE PARTS

Written by

in

WED9270XR1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, QUICK START
1TECH SHEET
1USE & CARE GUIDE
2WPW10336091 Whirlpool Top
2WPW10336080 Whirlpool Top Assembly
2TOP (MAGNA RED)
3HARNESS, MAIN
4WPW10215463 Whirlpool Console Assembly
4PANEL, CONSOLE (INCLUDE ITEMS, 13,16,18 & 19) (MERCURY)
4PANEL, CONSOLE (INCLUDE ITEMS, 13,16,18 & 19) (WHITE)
5W10153920 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7W10237301 Whirlpool Ring
8COVER, CENTER (RED)
8COVER-CENTER (SILVER)
8COVER, CENTER (WHITE)
9WPW10247262 Whirlpool Knob
9WPW10215781 Whirlpool Knob
10ASSEMBLY, USER INTERFACE
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13Medallion
14Screw, 2-28 x 1/2
