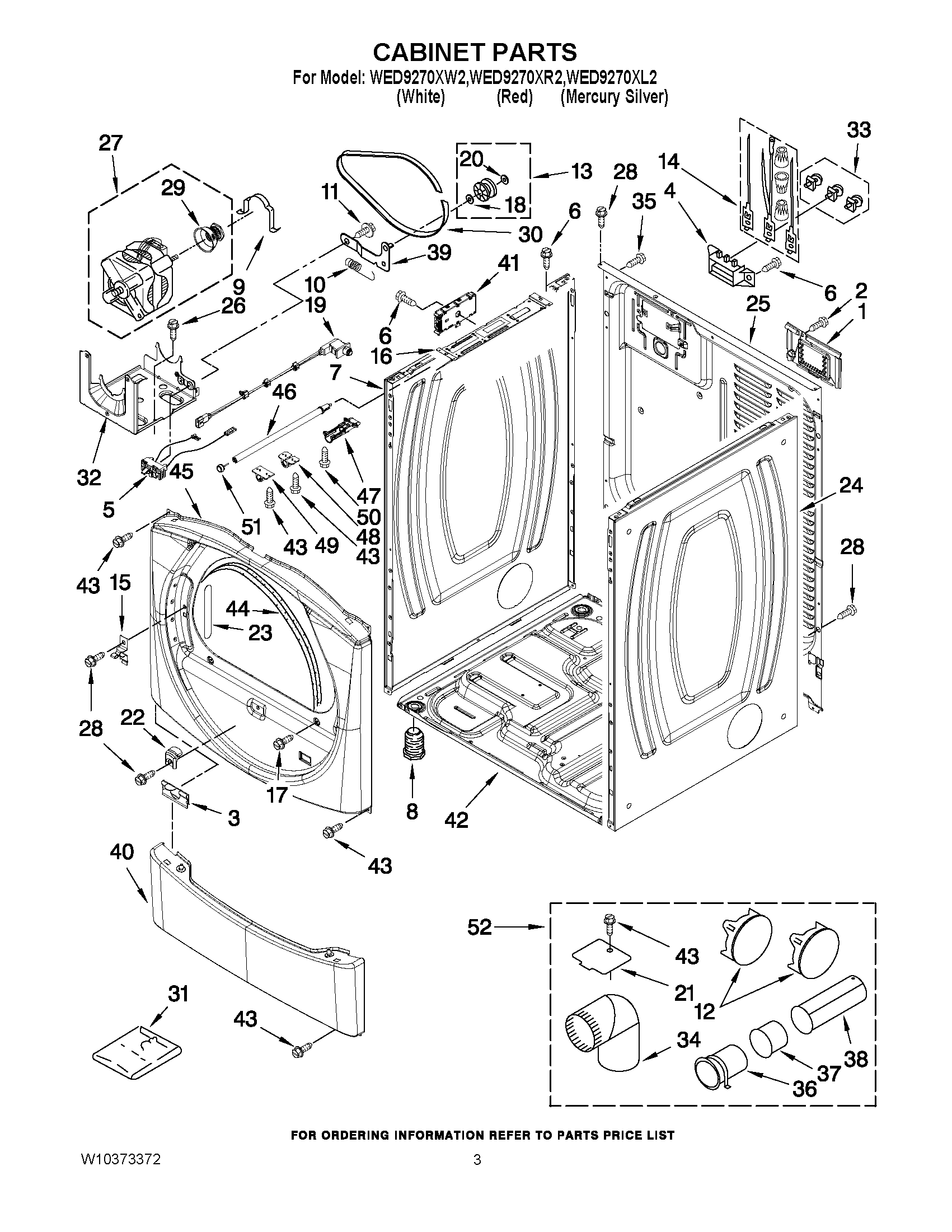

WED9270XW2 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
NIW10331132 Whirlpool Plug
1WPW10119283 Whirlpool Terminal Cover
2WP90767 Whirlpool Screw
3W11295573 Whirlpool Clip
4WP3397659 Whirlpool Terminal Block
5WPW10411937 Whirlpool Switch
7PANEL, SIDE (L.H.) (RED)
7W10542715 Whirlpool Panel
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15WP8565122 Whirlpool Strike Assembly
16BRACKET, CONTROL POGO
17WP308685 Whirlpool Microwave Screw
18WPW10121334 Whirlpool Washer
19W10318609 Whirlpool Dryer Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
228580015 Whirlpool Ramp
23W10085210 Whirlpool Label
24W10542714 Whirlpool Panel
24PANEL, SIDE (R.H.) (RED)
25PANEL, REAR
26SCREW
27279787 Whirlpool Dryer Drive Motor
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
318572546 Whirlpool Washer Duet Sport Epic Stack Kit
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35W10850756 Whirlpool Screw
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40PANEL, TOE (RED)
40W10251210 Whirlpool Toe Panel
40WP8540621 Whirlpool Toe Panel
41WPW10405846-includeCORE Whirlpool WPW10405846 Refrigerator Electronic Control Board + Core
42W11215531 Whirlpool Base
43WP488729 Whirlpool Refrigerator Door Screw
44WINDOW, DISPLAY
45WPL W10251201
45WPL 8580257
45WPL W10251202
46POGO BAR ASSEMBLY
47HOUSING ASSEMBLY
48BUSHING-SLEEVE (STOP)
49BUSHING-SLEEVE (REAR)
51END CAP
