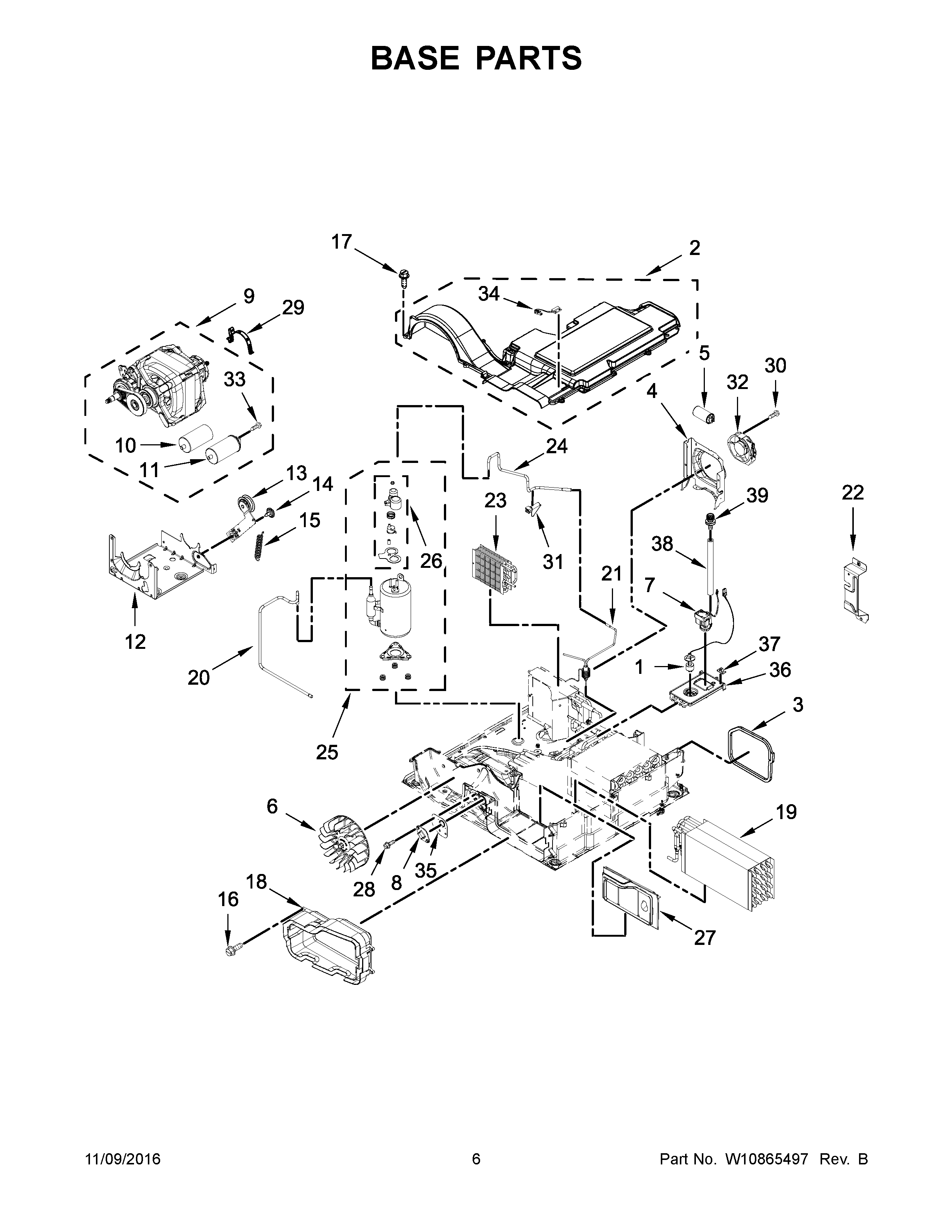

WED9290FC0 04 – BASE PARTS

Products

Position	Product
1	W11110114 Whirlpool Wire Harness
2	W10608831 Whirlpool Cover
3	W10459416 Whirlpool Seal
4	HOUSING, AUXILLARY FAN
5	W10724418 Whirlpool Washer Capacitor
6	W11573366 Whirlpool Flywheel
7	W10903190 Whirlpool Pump
8	WP8577274 Whirlpool Dryer Thermistor
9	W11209428 Whirlpool Drive Motor
10	W10442513 Whirlpool Capacitor
11	W10724414 Whirlpool Capacitor
12	W10578065 Whirlpool Base
13	W10837240 Whirlpool Dryer Idler Pulley
14	WP3389420 Whirlpool Screw
15	WPW10446781 Whirlpool Spring
16	WP693995 Whirlpool Screw
17	W10853898 Whirlpool Screw
18	W10897399 Whirlpool Outer Housing
19	W11406520 Whirlpool Evaporator
20	SUCTION TUBE, COMPRESSOR/EVAPORATOR
21	W10585594 Whirlpool Filter
22	W10645092 Whirlpool Bracket
23	W11406521 Whirlpool Condenser Assembly
24	W10872117 Whirlpool Tube
25	W10540767 Whirlpool Compressor
26	W10834235 Whirlpool Switch
27	W11715723 Whirlpool Filter Assembly
28	WP90767 Whirlpool Screw
29	CLAMP
30	W10709795 Whirlpool Refrigerator Screw
31	W10834236 Whirlpool Switch Assembly
32	W11342035 Whirlpool Fan Blade
33	W10759923 Whirlpool Washer Pulley Nut
34	W10651558 Whirlpool Switch Assembly
35	W10574749 Whirlpool Bracket
36	W10574747 Whirlpool Cover
37	W11501419 Whirlpool Refrigerator Clip
38	W10683172 Whirlpool Hose
39	W11307123 Whirlpool Connector
