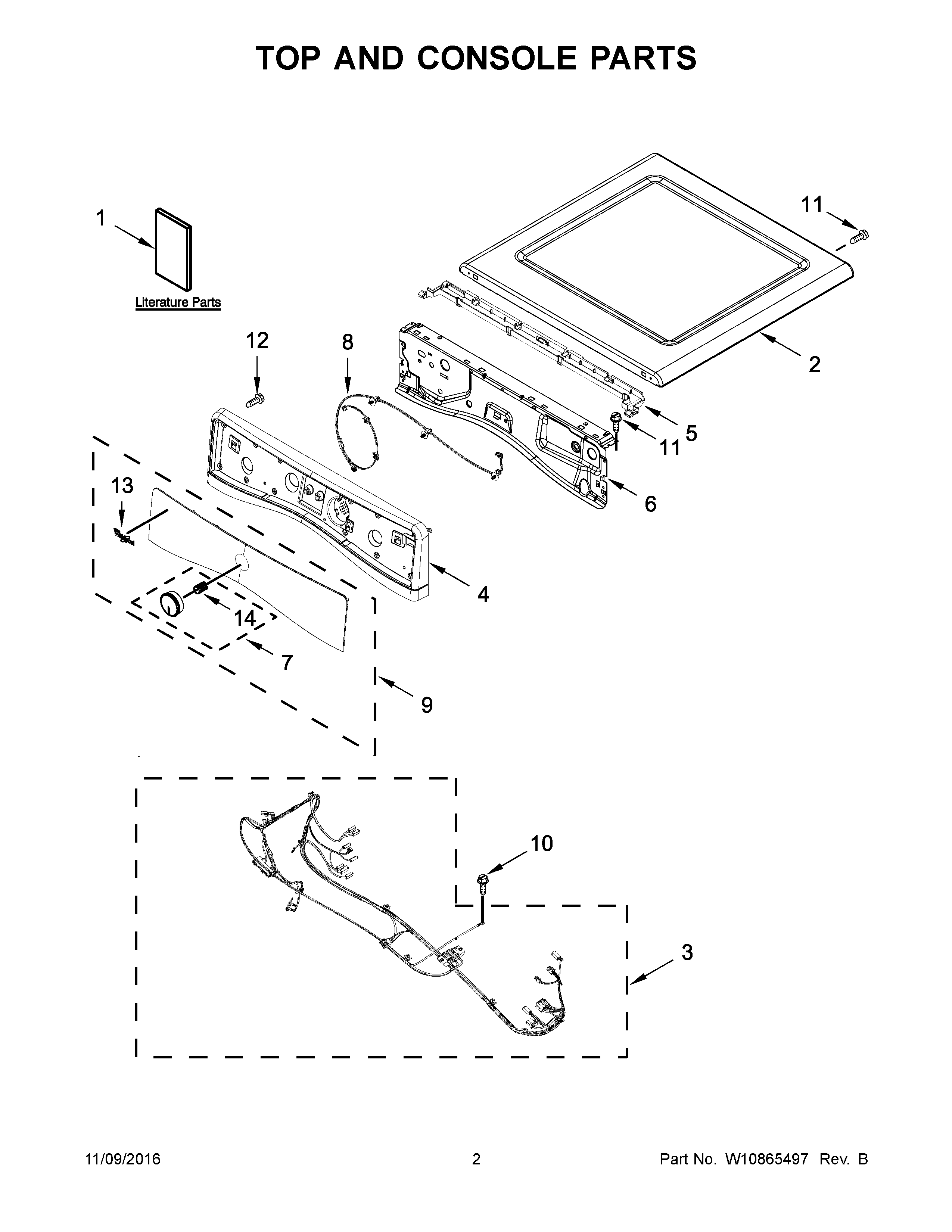

WED9290FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CQUICKSTART GUIDE
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
1OWNERS MANUAL
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3W10635057 Whirlpool Wire Harness
4WPW10391519 Whirlpool Console
4AW10876224 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
8W10837344 Whirlpool Wire Harness
9W10919220 Whirlpool Control Panel
9AW10919221 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10853898 Whirlpool Screw
13BADGE (WHITE)
13AW10510982 Whirlpool Nameplate
14WP8536939 Whirlpool Spring Clip
