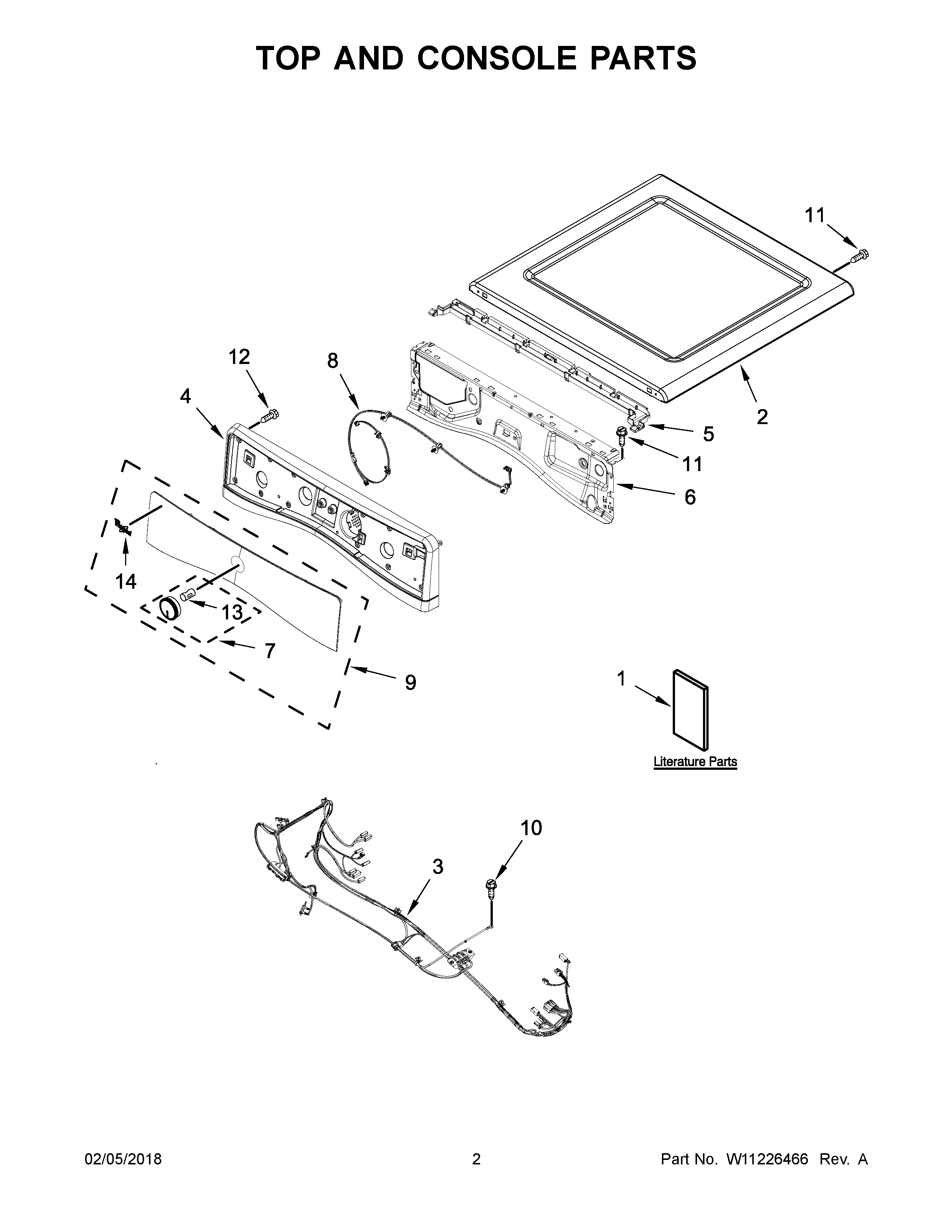

WED92HEFBD2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1C	WIRING DIAGRAM
1A	INSTALLATION INSTRUCTIONS
1D	QUICK START GUIDE
1	USE AND CARE GUIDE
1B	TECH SHEET
2C	W10628221 Whirlpool Top
2A	WPW10460919 Whirlpool Top
2B	WPW10316282 Whirlpool Top Assembly
2	WPW10208383 Whirlpool Top Panel
3	W10637533 Whirlpool Wire Harness
4	WPW10391519 Whirlpool Console
4B	W10875910 Whirlpool Console Assembly
4C	W10876286 Whirlpool Console
4A	W10876224 Whirlpool Console
5	WPW10653575 Whirlpool Channel
6	W11480682 Whirlpool Bracket
7	W10875909 Whirlpool Timer Knob
8	W10837344 Whirlpool Wire Harness
9B	W10919218 Whirlpool Control Panel
9	W10919216 Whirlpool Control Panel
9A	W10919217 Whirlpool Control Panel
9C	ASSEMBLY, OVERLAY (BLACK)
10	WP693995 Whirlpool Screw
11	WP488729 Whirlpool Refrigerator Door Screw
12	W10489172 Whirlpool Screw
13	WP8536939 Whirlpool Spring Clip
14	BADGE (WHITE)
14A	W10510982 Whirlpool Nameplate
