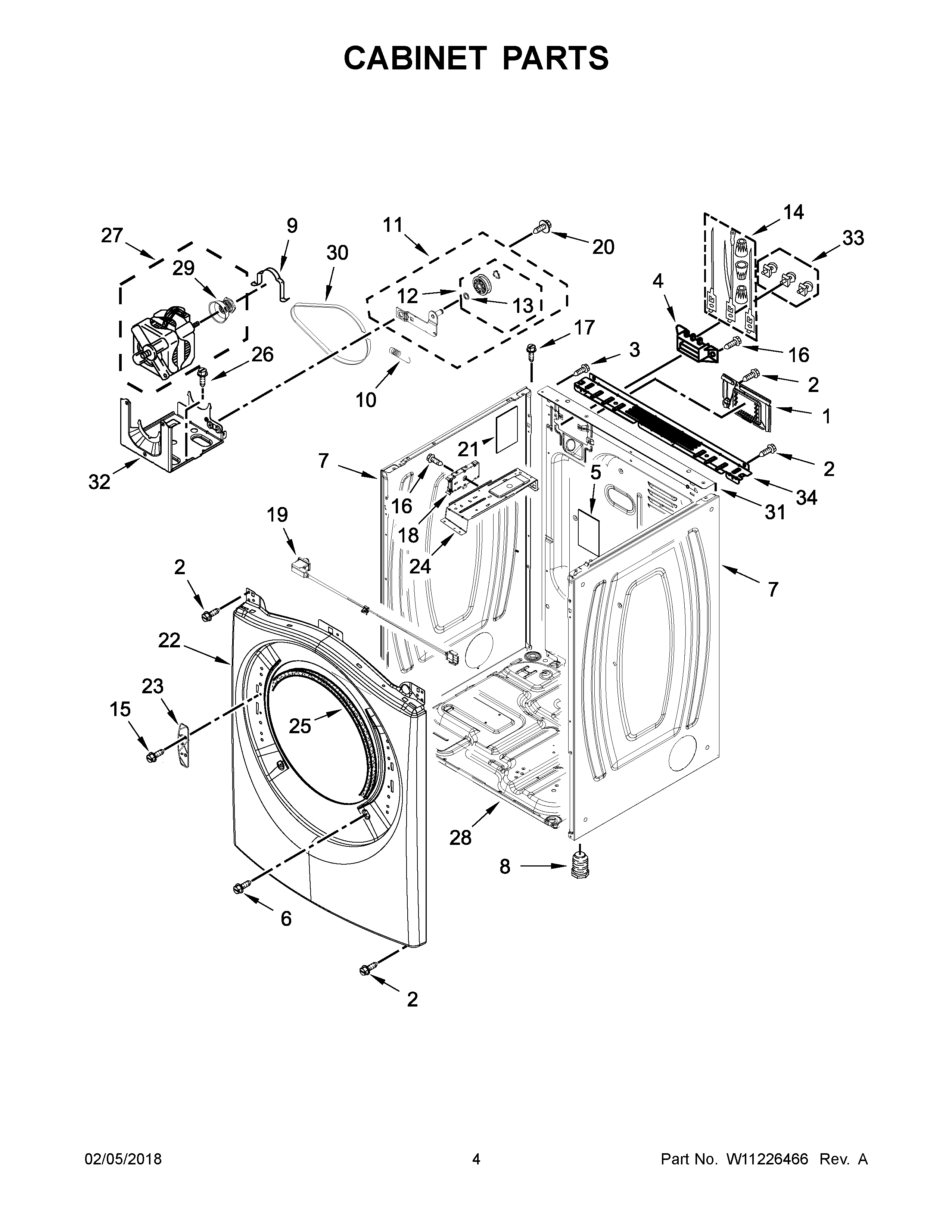

WED92HEFC2 03 – CABINET PARTS

WED92HEFC2 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
NIW10704365 Whirlpool Dryer Exhaust Kit
1WPW10316167 Whirlpool Dishwasher Terminal Cover
2WP488729 Whirlpool Refrigerator Door Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
6WP308685 Whirlpool Microwave Screw
7BWPW10468499 Whirlpool Panel
7CW10628249 Whirlpool Panel Assembly
7W11233548 Whirlpool Panel
7AW11315726 Whirlpool Panel Assembly
9CLAMP
10WPW10446781 Whirlpool Spring
11W10837240 Whirlpool Dryer Idler Pulley
12279640 Whirlpool Dryer Idler Pulley Kit
13WPW10121334 Whirlpool Washer
14279318 Whirlpool Terminal
15SCREW
16WP489463 Whirlpool Refrigerator Screw
18W11537215-includeCORE Whirlpool W11537215 Control Board + Core
19WPW10350906 Whirlpool Door Switch
20WP3389420 Whirlpool Screw
21W11409002 Whirlpool Pad
22WPW10363953 Whirlpool Dishwasher Panel
22AWPW10463309 Whirlpool Dishwasher Panel
22BWPW10460923 Whirlpool Panel
22CW10433063 Whirlpool Panel
23WPW10208250 Whirlpool Strike
24BRACKET, CONTROL
25WP3387242 Whirlpool Seal
26SCREW
27MOTOR-DRVE
28W11215531 Whirlpool Base
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10487430 Whirlpool Rear Panel
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10208382 Whirlpool Dryer Bracket
