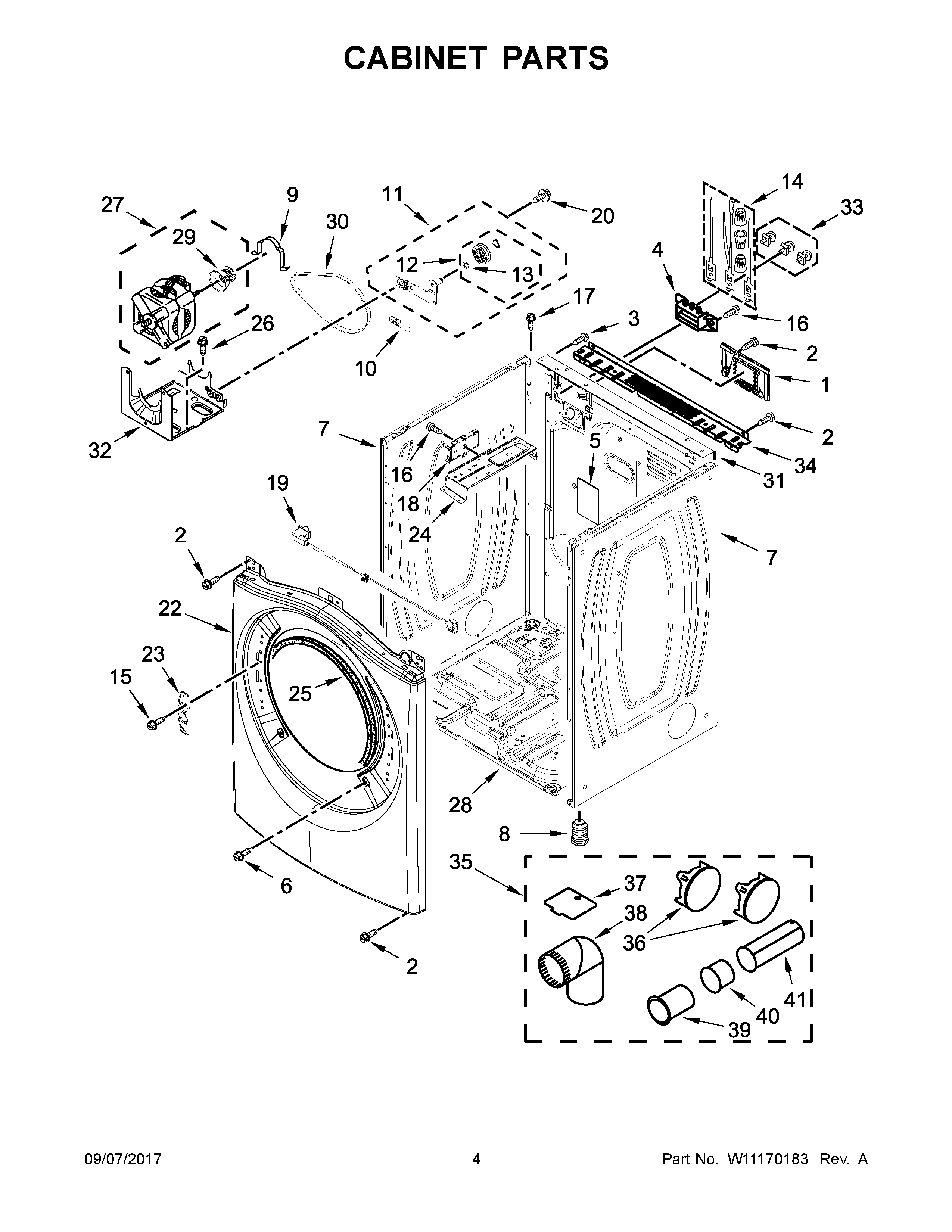

WED92HEFU1 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	WP488729 Whirlpool Refrigerator Door Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
6	WP308685 Whirlpool Microwave Screw
7C	W10628249 Whirlpool Panel Assembly
7A	W11315726 Whirlpool Panel Assembly
7	W11233548 Whirlpool Panel
7B	WPW10468499 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	W10837240 Whirlpool Dryer Idler Pulley
12	279640 Whirlpool Dryer Idler Pulley Kit
13	WPW10121334 Whirlpool Washer
14	279318 Whirlpool Terminal
15	SCREW
16	WP489463 Whirlpool Refrigerator Screw
18	W11537215-includeCORE Whirlpool W11537215 Control Board + Core
19	WPW10350906 Whirlpool Door Switch
20	WP3389420 Whirlpool Screw
21	W11409002 Whirlpool Pad
22	WPW10363953 Whirlpool Dishwasher Panel
22B	WPW10460923 Whirlpool Panel
22A	WPW10463309 Whirlpool Dishwasher Panel
22C	W10433063 Whirlpool Panel
23	WPW10208250 Whirlpool Strike
24	BRACKET, CONTROL
25	WP3387242 Whirlpool Seal
26	SCREW
27	MOTOR-DRVE
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10487430 Whirlpool Rear Panel
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10208382 Whirlpool Dryer Bracket
35	W10704365 Whirlpool Dryer Exhaust Kit
36	WPW10404617 Whirlpool Plug Assembly
37	WPW10354249 Whirlpool Cover
38	WPW10416072 Whirlpool Elbow
39	PIPE, EXHAUST (MEDIUM)
40	WPW10331278 Whirlpool Exhaust Pipe
41	WP8563749 Whirlpool Exhaust Pipe
