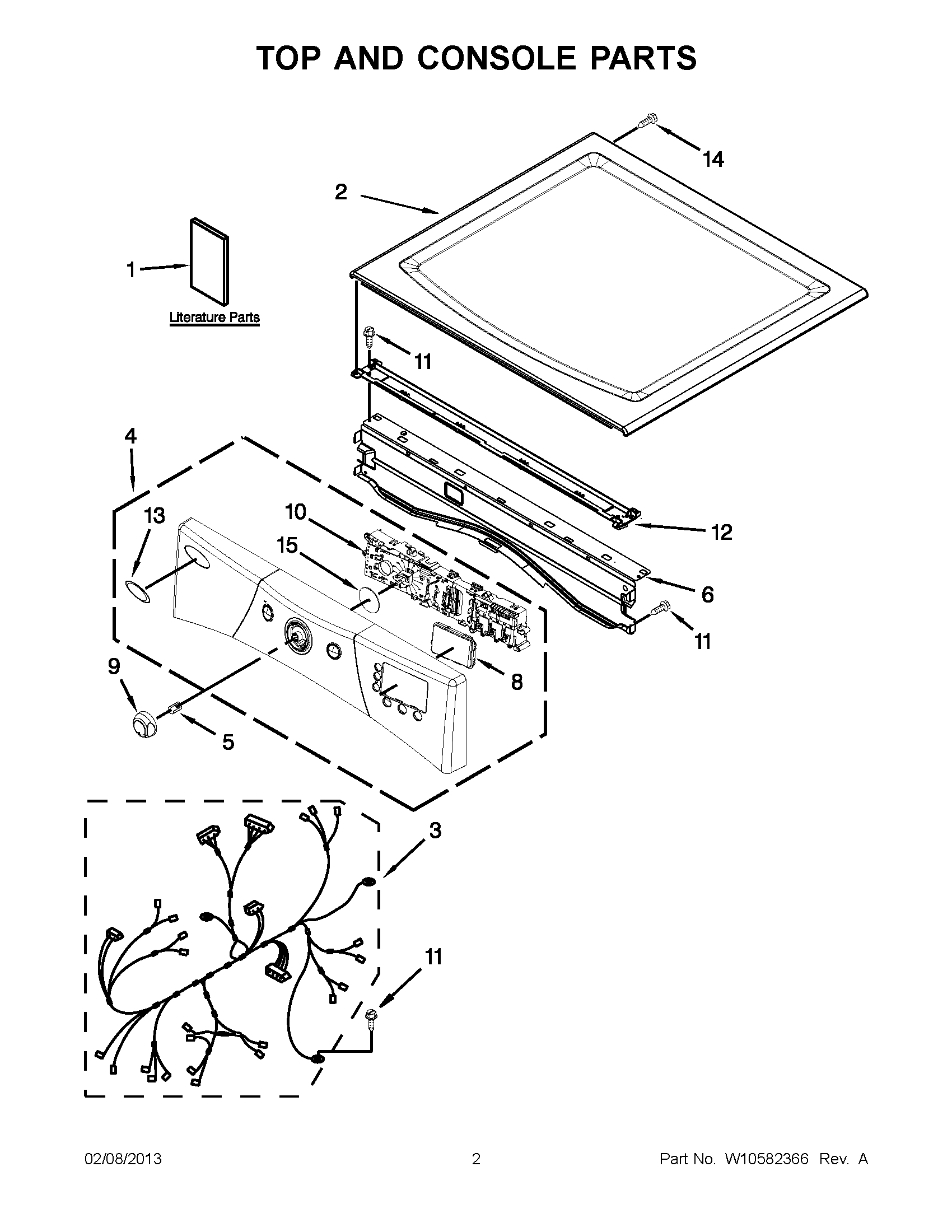

WED9371YW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION, INSTRUCTION
1	TECH SHEET
1	USE & CARE GUIDE
2	WPW10336080 Whirlpool Top Assembly
3	MAIN HARNESS
4	PANEL, CONSOLE (WHITE)
5	WP8536939 Whirlpool Spring Clip
6	WP8565237 Whirlpool Bracket Assembly
8	WINDOW, DISPLAY
9	WPW10251394 Whirlpool Knob
10	WPW10387234 Whirlpool Electronic Control Board + Core
12	WPW10266747 Whirlpool Channel
13	BADGE
14	WP488729 Whirlpool Refrigerator Door Screw
15	SEAL, USER INTERFACE
