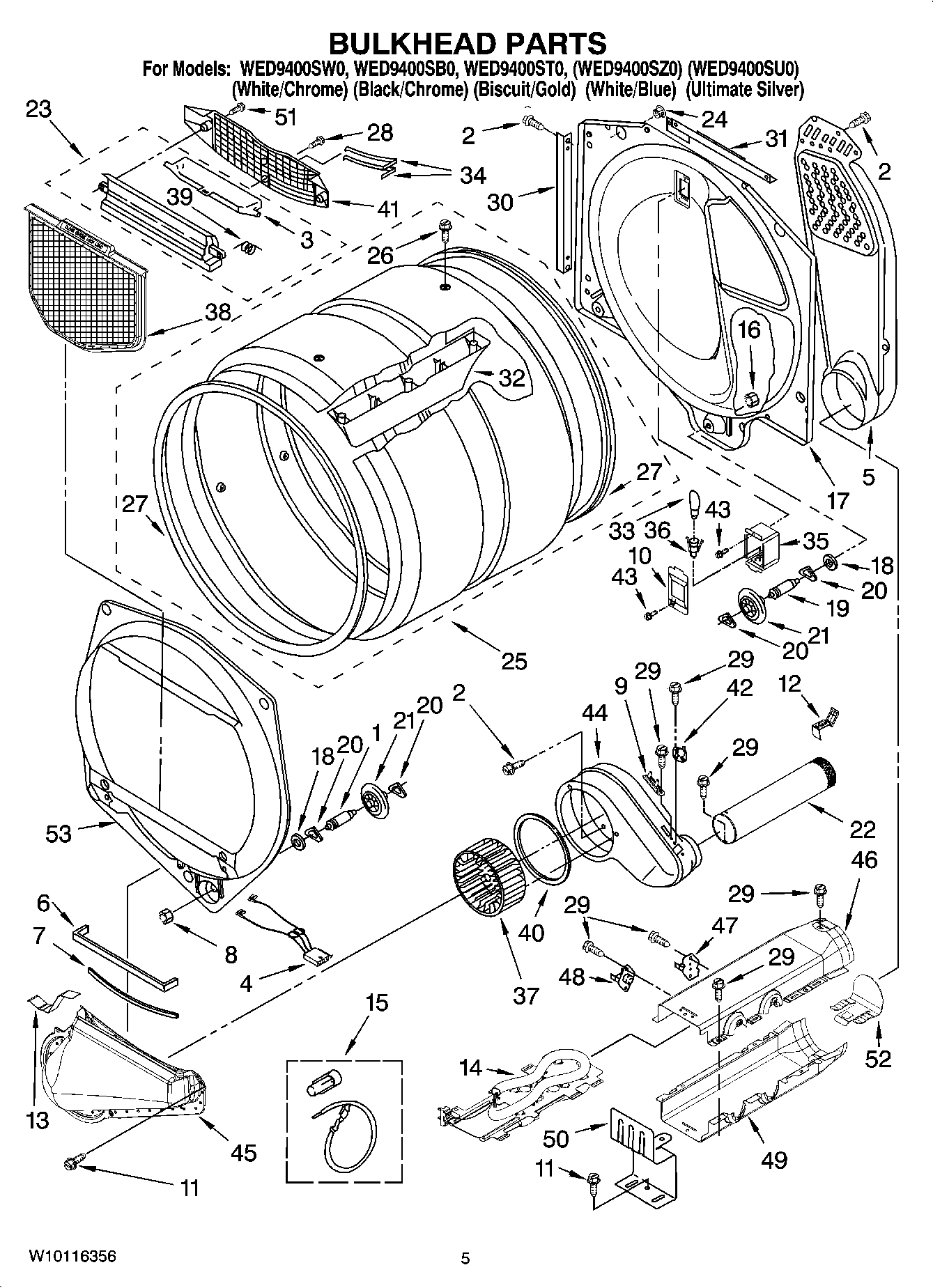

WED9400ST0 03 – BULKHEAD PARTS

WED9400ST0 03 – BULKHEAD PARTS

Written by

in

WED9400ST0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11222846 Whirlpool Door
4	WP3406653 Whirlpool Wire Harness
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	WP3392519 Whirlpool Dryer Thermal Fuse
10	W11226088 Whirlpool Lens Assembly
11	WP489463 Whirlpool Refrigerator Screw
12	W11684573 Whirlpool Clip Assembly
13	WP8066208 Whirlpool Clip
14	WP8544771 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10121334 Whirlpool Washer
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	279936 Whirlpool Exhaust Pipe
23	W11129408 Whirlpool Out Housing
24	8529007 Whirlpool Plug
25	W10545924 Whirlpool Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
29	WP90767 Whirlpool Screw
30	Channel Bracket, Rear Bulkhead (2)
31	W10118337 Whirlpool Bracket Assembly
32	WPW10113136 Whirlpool Drum Baffle
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	WP3387223 Whirlpool Electrode Assembly
35	3977373 Whirlpool Bracket
36	W11700522 Whirlpool Socket
37	WP697772 Whirlpool Dryer Blower Wheel
38	W10120998 Whirlpool Dryer Lint Screen Filter
39	WP3394986 Whirlpool Spring
40	WP697770 Whirlpool Blower Cover Plate Seal
41	W11086603 Whirlpool Dryer Link Screen Air Grille
42	WP8577274 Whirlpool Dryer Thermistor
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	WP8544769 Whirlpool Box
47	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48	WP8557403 Whirlpool Thermostat
49	HOUSING TAB, HEATER BOX
50	8066099 Whirlpool Bracket
51	WP3387230 Whirlpool Screw
52	8544776 Whirlpool Clip Assembly
53	Bulkhead, Front
