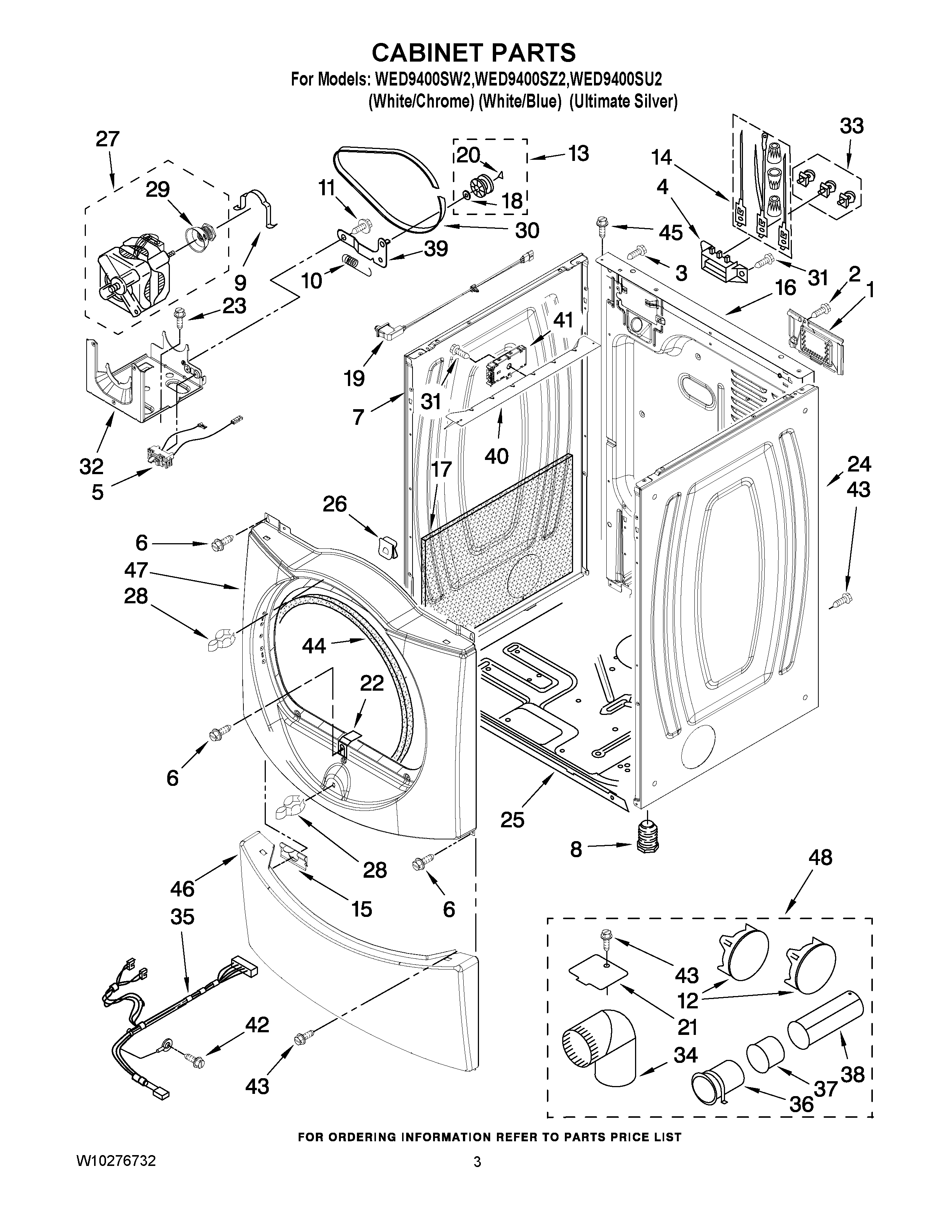

WED9400SW2 02 – CABINET PARTS

Products

Position	Product
1	WPW10119283 Whirlpool Terminal Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	WPW10411937 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
7	Panel, Side (L.H.)
8	49621 Whirlpool Leveling Feet
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
12	Top (Silver)
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	W11295573 Whirlpool Clip
16	PANEL, REAR
17	W10123956 Whirlpool Sound Absorber
18	WPW10121334 Whirlpool Washer
19	W10128087 Whirlpool Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10354249 Whirlpool Cover
22	Ramp, Door
23	SCREW
24	Panel, Side (R.H.)
25	BASE, CABINET
26	Clip, Mounting (2)
27	279787 Whirlpool Dryer Drive Motor
28	279570 Whirlpool Dryer Door Latch Kit
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	W10242904 Whirlpool Wire Harness
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	WP8563727 Whirlpool Bracket
41	CONTROL BOARD
42	WP693995 Whirlpool Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
46	TOE-PANEL (WHITE)
46	PANEL, TOE
47	WPL W10180429
47	WPL W10180423
48	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
