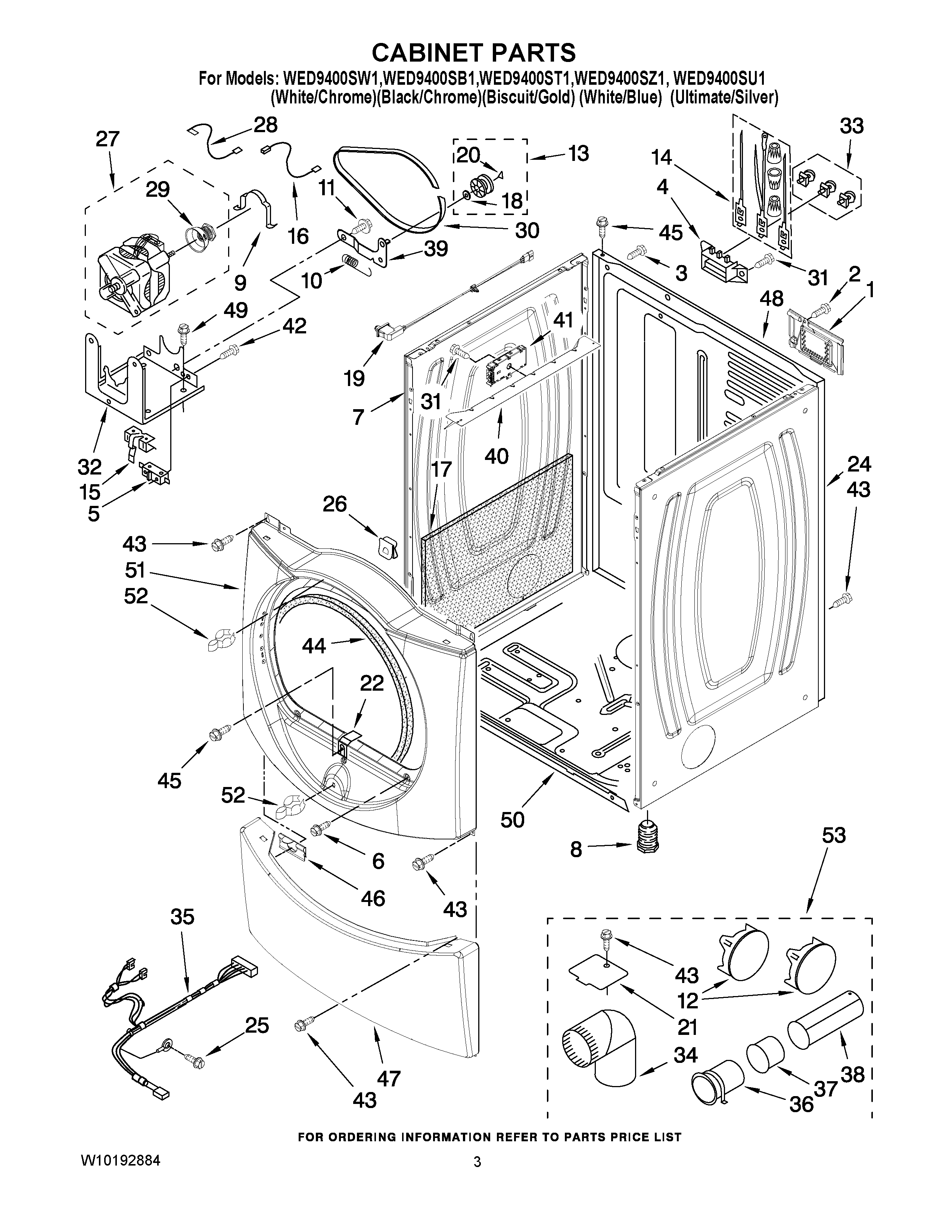

WED9400SZ1 02 – CABINET PARTS

WED9400SZ1 02 – CABINET PARTS

Written by

in

WED9400SZ1 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WPW10119283 Whirlpool Terminal Cover
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5279782 Whirlpool Lid Switch
6WP308685 Whirlpool Microwave Screw
7W11233548 Whirlpool Panel
7Panel, Side (L.H.)
7Panel, Side (L.H.) (Black/Chrome)
7Panel, Side (L.H.) (Biscuit)
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12PLUG, MULTIVENT (SILVER)
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15WP8066120 Whirlpool Lever Assembly
16W10167612 Whirlpool Wire
17W10123956 Whirlpool Sound Absorber
18WPW10121334 Whirlpool Washer
19W10128087 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22Ramp, Door
24Panel, Side (R.H.)
24Panel, Side (R.H.) (Biscuit)
24Panel, Side (R.H.) (Black/Chrome)
25W11693756 Whirlpool Screw Assembly
26Clip, Mounting (2)
27279787 Whirlpool Dryer Drive Motor
283398948 Whirlpool Wire
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
32WP3387118 Whirlpool Base Assembly
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35Harness, Digital Interface
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40WP8563727 Whirlpool Bracket
41CONTROL BOARD
42WP98129 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
46W11295573 Whirlpool Clip
47WPL W10116272
47WPL W10116277
47WPL W10116273
47Toe, Panel
48PANEL, REAR
49SCREW
50BASE, CABINET
51WPL W10180423
51WPL W10180424
51WPL W10180429
51WPL W10180425
52279570 Whirlpool Dryer Door Latch Kit
53W10470674 Whirlpool Dryer Side Vent Exhaust Kit
