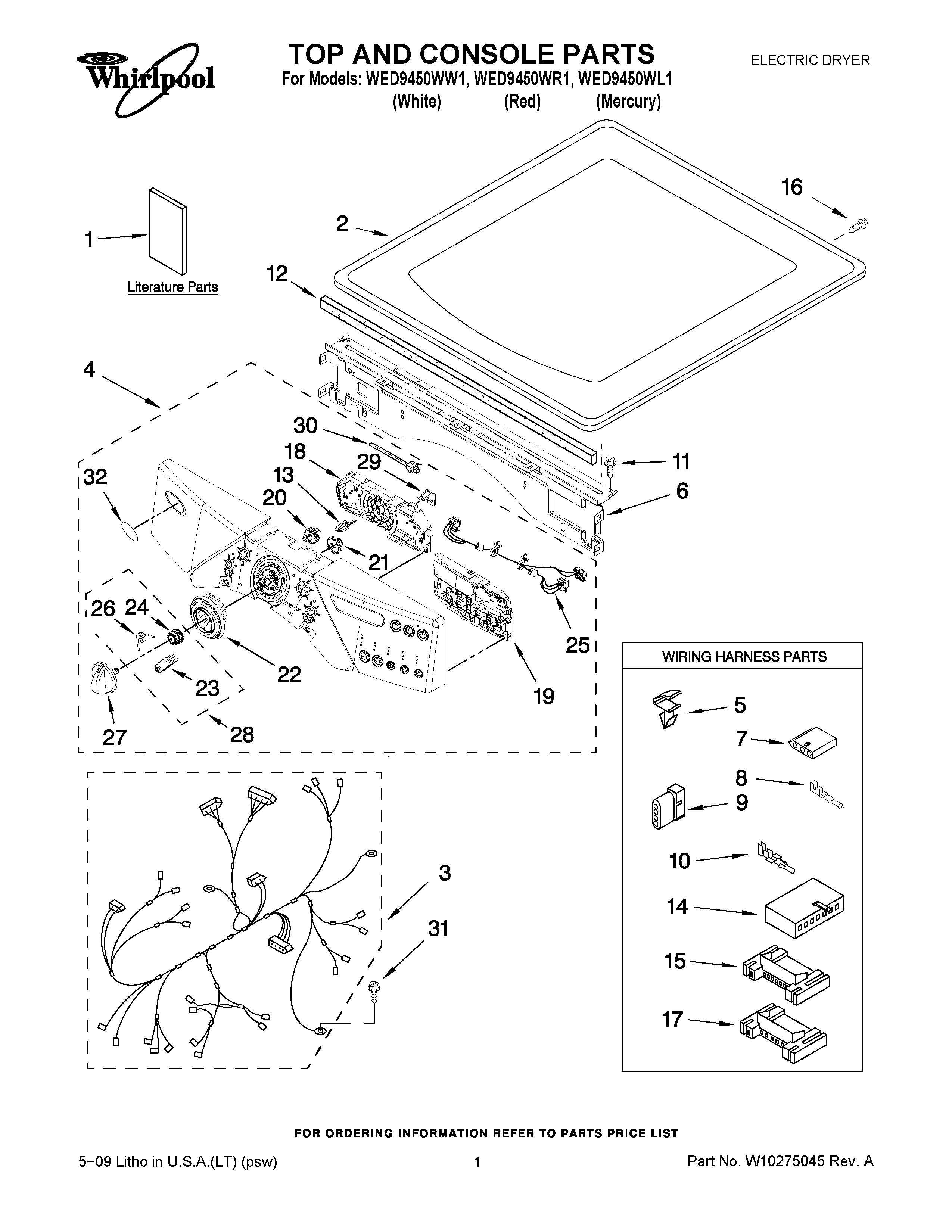

WED9450WR1 01 – TOP AND CONSOLE PARTS

WED9450WR1 01 – TOP AND CONSOLE PARTS

Written by

in

WED9450WR1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1USE & CARE GUIDE
1INSTALLATION INSTRUCTION
2Top (White)
2TOP (RED)
2TOP (MERCURY)
3HARNESS, MAIN
4PANEL, CONSOLE (INCLUDES ITEMS, 18,19,20,21,22 25,27,29,30,31 ) (RED)
4PANEL, CONSOLE (INCLUDES ITEMS, 18,19,20,21,22 25,27,29,30,31 ) (MERCURY)
4PANEL, CONSOLE (INCLUDES ITEMS, 18,19,20,21,22 25,27,29,30,31 ) (WHITE)
5WP3394427 Whirlpool Clip
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
143936150 Whirlpool Connector
153395683 Whirlpool Connector
16303776 Whirlpool Dishwasher Screw
172203186 Whirlpool Connector
18User Interface (Center) (Includes: Illus. 13)
19USER INTERFACE (RIGHT)
20Encoder-Wheel
21Retainer-Snap
22W10250089 Whirlpool Ring
23Rast, Wheel Assy. (Service Only With Item. 28)
24DETENT WHEEL
25W10242906 Whirlpool Wire Harness
26Knob, Spring (Service Only With Item 28)
27W10190685 Whirlpool Knob Assembly
28Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29W10112268 Whirlpool Clip
30WP3391018 Whirlpool Wire Tie
31WP693995 Whirlpool Screw
32Medallion
