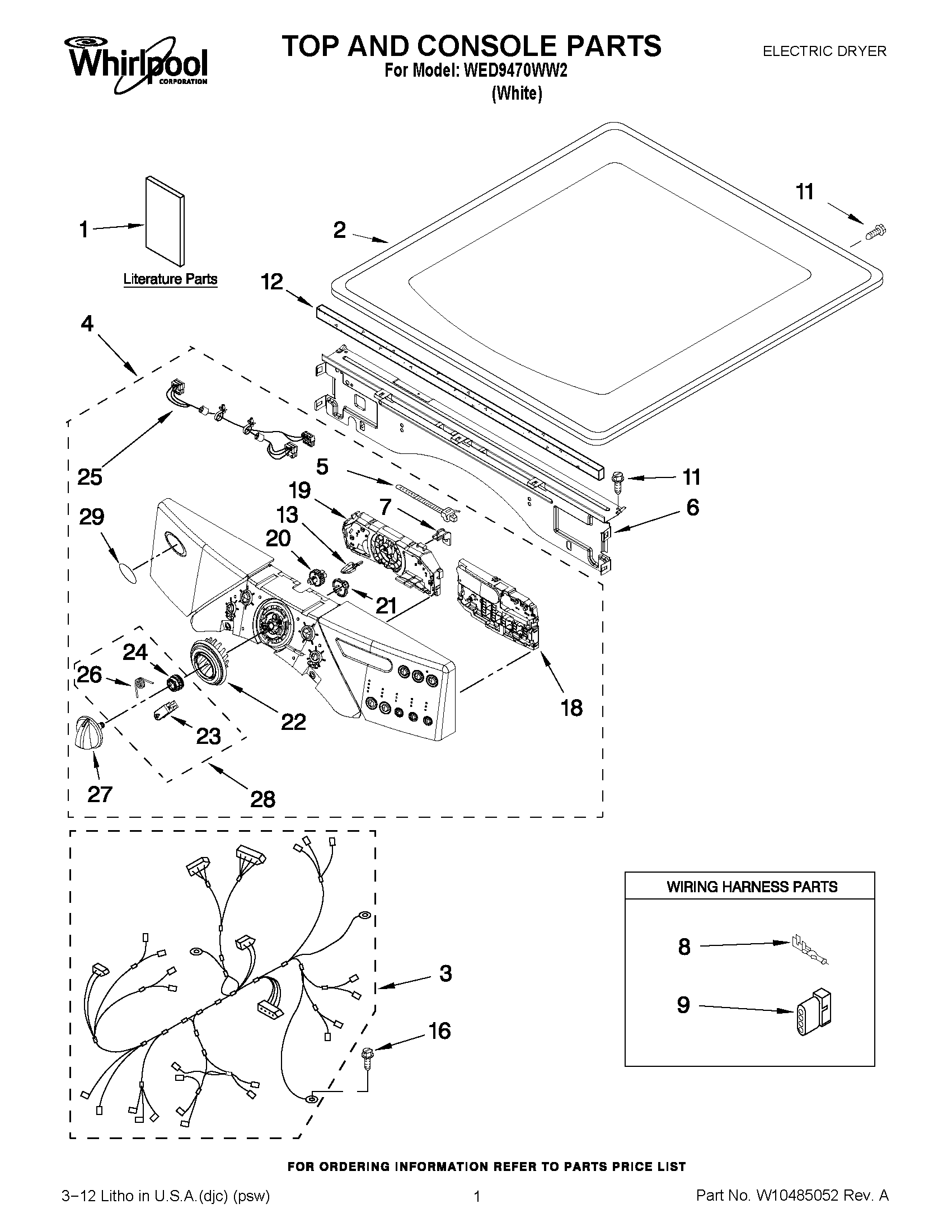

WED9470WW2 01 – TOP AND CONSOLE PARTS

WED9470WW2 01 – TOP AND CONSOLE PARTS

Written by

in

WED9470WW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1TECH SHEET
1USE & CARE GUIDE
2Top (White)
3W10251446 Whirlpool Wire Harness
4PANEL, CONSOLE (INCLUDE ITEMS, (WHITE)
5WP3391018 Whirlpool Wire Tie
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7W10112268 Whirlpool Clip
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
16WP693995 Whirlpool Screw
18USER INTERFACE (RIGHT)
19USER-INTERFACE CENTER (INCLUDE, ITEM. 11 )
20Encoder-Wheel
21Retainer-Snap
22W10250089 Whirlpool Ring
23Rast, Wheel Assy. (Service Only With Item. 28)
24Detent Wheel (Service Only With Illus. 28)
25W10242906 Whirlpool Wire Harness
26Knob, Spring (Service Only With Item 28)
27W10190685 Whirlpool Knob Assembly
28Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29Medallion
