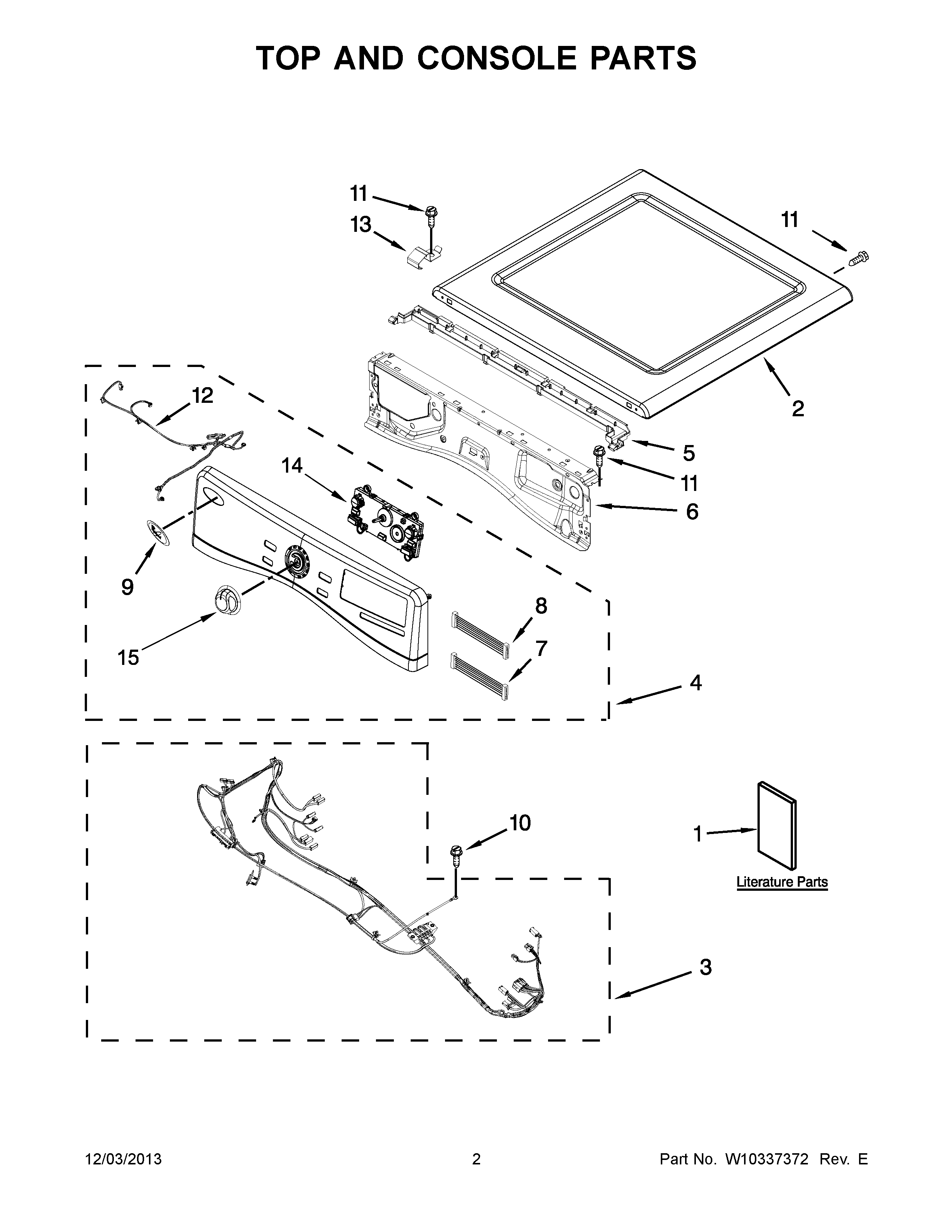

WED94HEXL0 02 – TOP AND CONSOLE PARTS

WED94HEXL0 02 – TOP AND CONSOLE PARTS

Written by

in

WED94HEXL0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1TECH SHEET
1USE AND CARE GUIDE
2WPW10316282 Whirlpool Top Assembly
2TOP (RED)
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN
4PANEL, CONSOLE ASSEMBLY (INCLUDE ITEMS, 7,8,9 & 12 ) (SILVER)
4WPW10464684 Whirlpool Console
4PANEL, CONSOLE ASSEMBLY (INCLUDE ITEMS, 7,8,9 & 12 ) (WHITE)
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7HARNESS, JUMPER UI
8W10267937 Whirlpool Wire Harness
9Medallion
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10267832 Whirlpool Wire
13W10317566 Whirlpool Clip
14UI, CENTER (INCLUDES KNOB)
15WPW10251394 Whirlpool Knob
