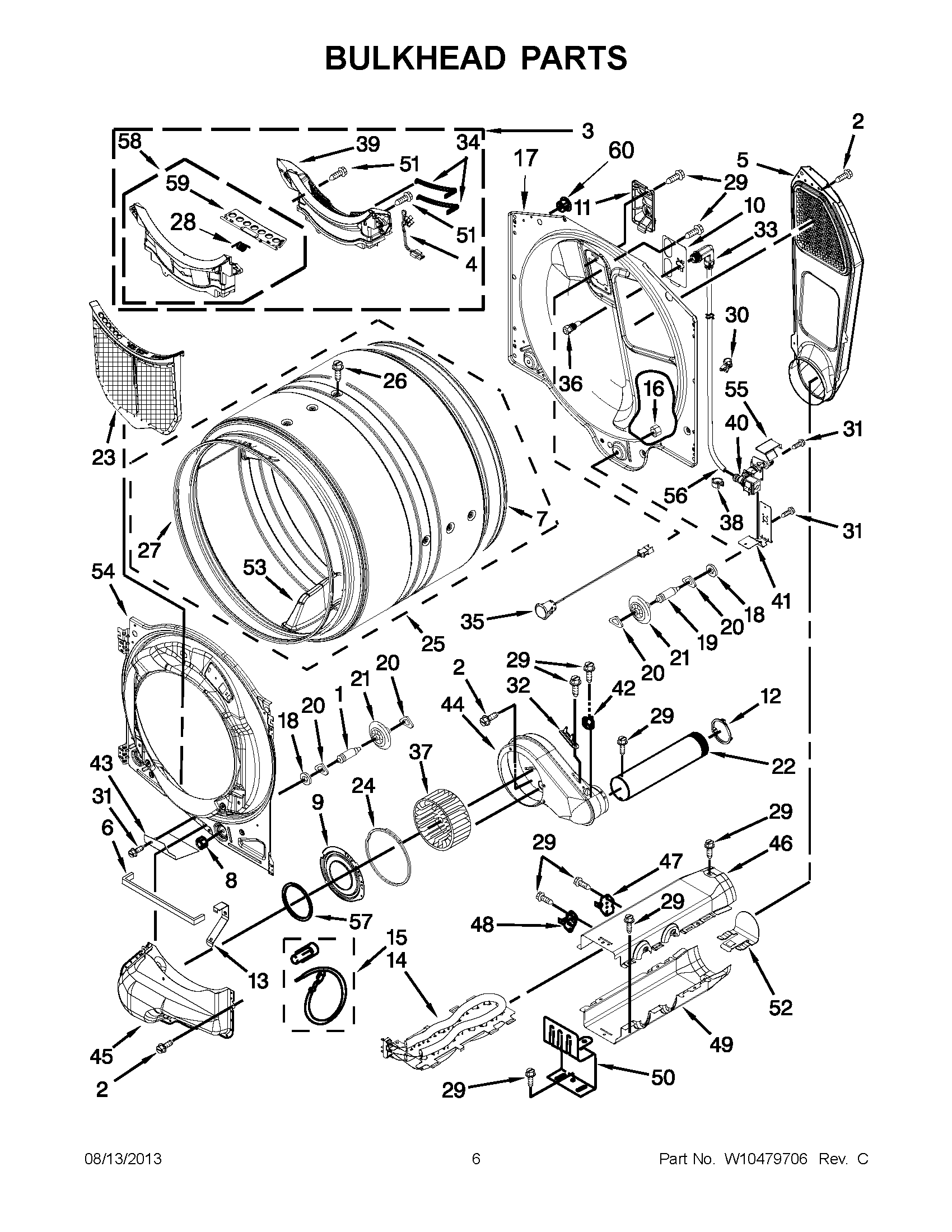

WED94HEXR2 03 – BULKHEAD PARTS

WED94HEXR2 03 – BULKHEAD PARTS

Written by

in

WED94HEXR2 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	HOUSNG-DRYER LINT
4	WPW10298258 Whirlpool Wire Harness
5	WP3387911 Whirlpool Air Duct
6	W11676493 Whirlpool Seal Assembly
7	280114 Whirlpool Dryer Drum Seal
8	WPW10080210 Whirlpool Nut
9	W10211901 Whirlpool Cover Assembly
10	WPW10656504 Whirlpool Bracket
11	WPW10208422 Whirlpool Dryer Light Deflector Cover
12	WPW10344699 Whirlpool Collar
13	W10414388 Whirlpool Clip
14	WP8544772 Whirlpool Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	BULKHEAD, REAR
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WPW10342188 Whirlpool Exhaust Pipe
23	SCREEN – LINT. ALPHA W/FELT
24	WP697770 Whirlpool Blower Cover Plate Seal
25	W10541657 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	W11193479 Whirlpool Seal
28	W11242876 Whirlpool Out Housing
29	WP693995 Whirlpool Screw
30	WP3391018 Whirlpool Wire Tie
31	WP90767 Whirlpool Screw
32	WP3392519 Whirlpool Dryer Thermal Fuse
33	WPW10347739 Whirlpool Hose
34	WP3387223 Whirlpool Electrode Assembly
35	W10422853 Whirlpool Light
36	WPW10277503 Whirlpool Nozzle
37	WP697772 Whirlpool Dryer Blower Wheel
38	W10044599 Whirlpool Clip
39	W11125442 Whirlpool Outer Grille
40	W10815373 Whirlpool Valve
42	WP8557403 Whirlpool Thermostat
43	W11257251 Whirlpool Shield
44	WPW10211911 Whirlpool Housing
45	WPW10211896 Whirlpool Duct Lint
46	WP8544769 Whirlpool Box
47	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48	WP8577274 Whirlpool Dryer Thermistor
49	HOUSING TAB, HEATER BOX
50	8066099 Whirlpool Bracket
51	WP3387230 Whirlpool Screw
52	8544776 Whirlpool Clip Assembly
53	W10280771 Whirlpool Drum Baffle
54	W10673491 Whirlpool Bulkhead Assembly
55	COVER, INLET VALVE
57	W10211899 Whirlpool Seal
58	W10905013 Whirlpool Door
59	W11156832 Whirlpool Air Grille
60	8529007 Whirlpool Plug
