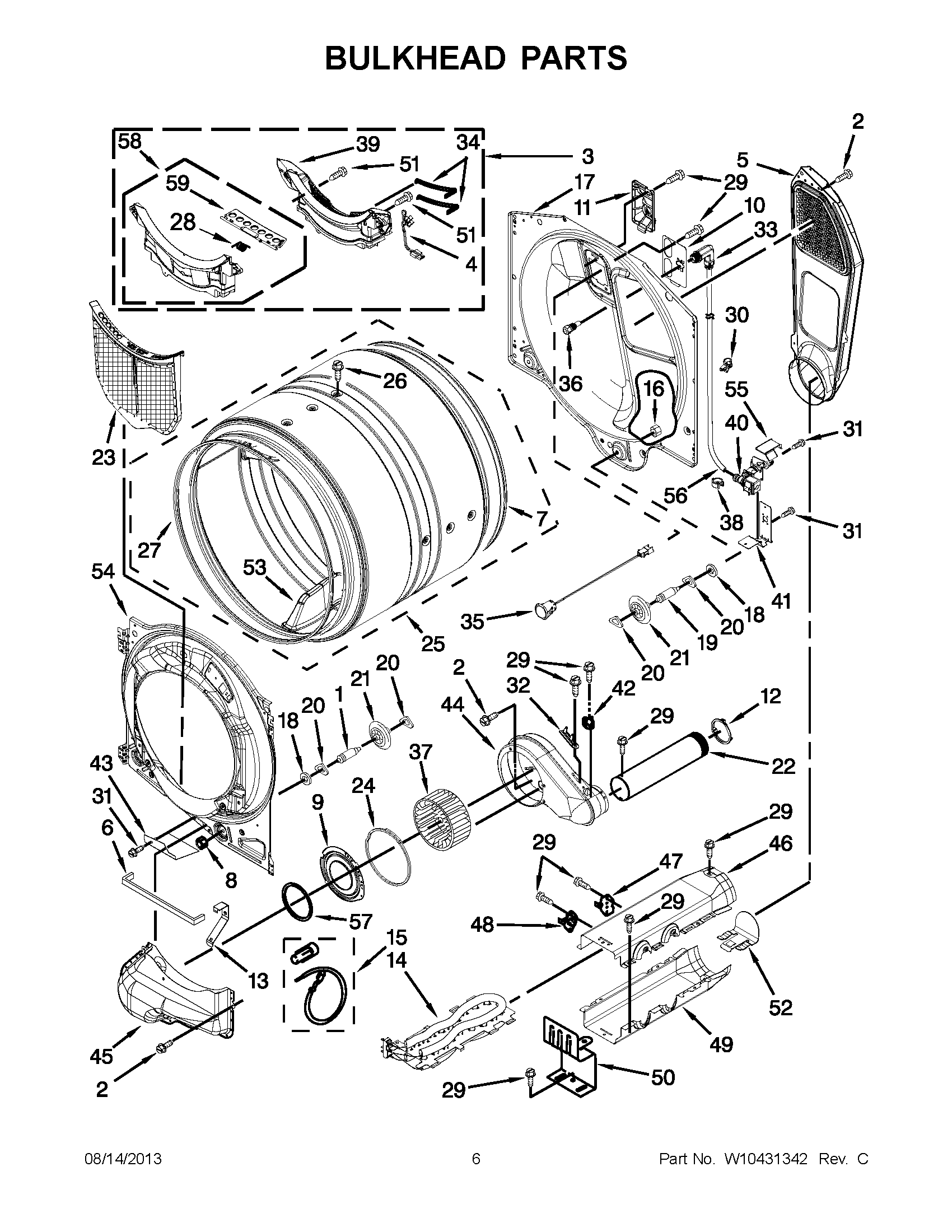

WED94HEXW1 03 – BULKHEAD PARTS

WED94HEXW1 03 – BULKHEAD PARTS

Written by

in

WED94HEXW1 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP488729 Whirlpool Refrigerator Door Screw
3HOUSNG-DRYER LINT
4WPW10298258 Whirlpool Wire Harness
5WP3387911 Whirlpool Air Duct
6W11676493 Whirlpool Seal Assembly
7280114 Whirlpool Dryer Drum Seal
8WPW10080210 Whirlpool Nut
9W10211901 Whirlpool Cover Assembly
10WPW10656504 Whirlpool Bracket
11WPW10208422 Whirlpool Dryer Light Deflector Cover
12WPW10344699 Whirlpool Collar
13W10414388 Whirlpool Clip
14WP8544772 Whirlpool Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16WPW10080190 Whirlpool Nut
17BULKHEAD, REAR
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22WPW10342188 Whirlpool Exhaust Pipe
23SCREEN – LINT. ALPHA W/FELT
24WP697770 Whirlpool Blower Cover Plate Seal
25W10541657 Whirlpool Drum Assembly
26W10853898 Whirlpool Screw
27W11193479 Whirlpool Seal
28W11242876 Whirlpool Out Housing
29WP693995 Whirlpool Screw
30WP3391018 Whirlpool Wire Tie
31WP90767 Whirlpool Screw
32WP3392519 Whirlpool Dryer Thermal Fuse
33WPW10347739 Whirlpool Hose
34WP3387223 Whirlpool Electrode Assembly
35DRUM LIGHT ASSEMBLY-LED
36WPW10277503 Whirlpool Nozzle
37WP697772 Whirlpool Dryer Blower Wheel
38W10044599 Whirlpool Clip
39W11125442 Whirlpool Outer Grille
40W10815373 Whirlpool Valve
42WP8557403 Whirlpool Thermostat
43W11257251 Whirlpool Shield
44WPW10211911 Whirlpool Housing
45WPW10211896 Whirlpool Duct Lint
46WP8544769 Whirlpool Box
47279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48WP8577274 Whirlpool Dryer Thermistor
49HOUSING TAB, HEATER BOX
508066099 Whirlpool Bracket
51WP3387230 Whirlpool Screw
528544776 Whirlpool Clip Assembly
53W10280771 Whirlpool Drum Baffle
54W10673491 Whirlpool Bulkhead Assembly
55COVER, INLET VALVE
57W10211899 Whirlpool Seal
58W10905013 Whirlpool Door
59W11156832 Whirlpool Air Grille
