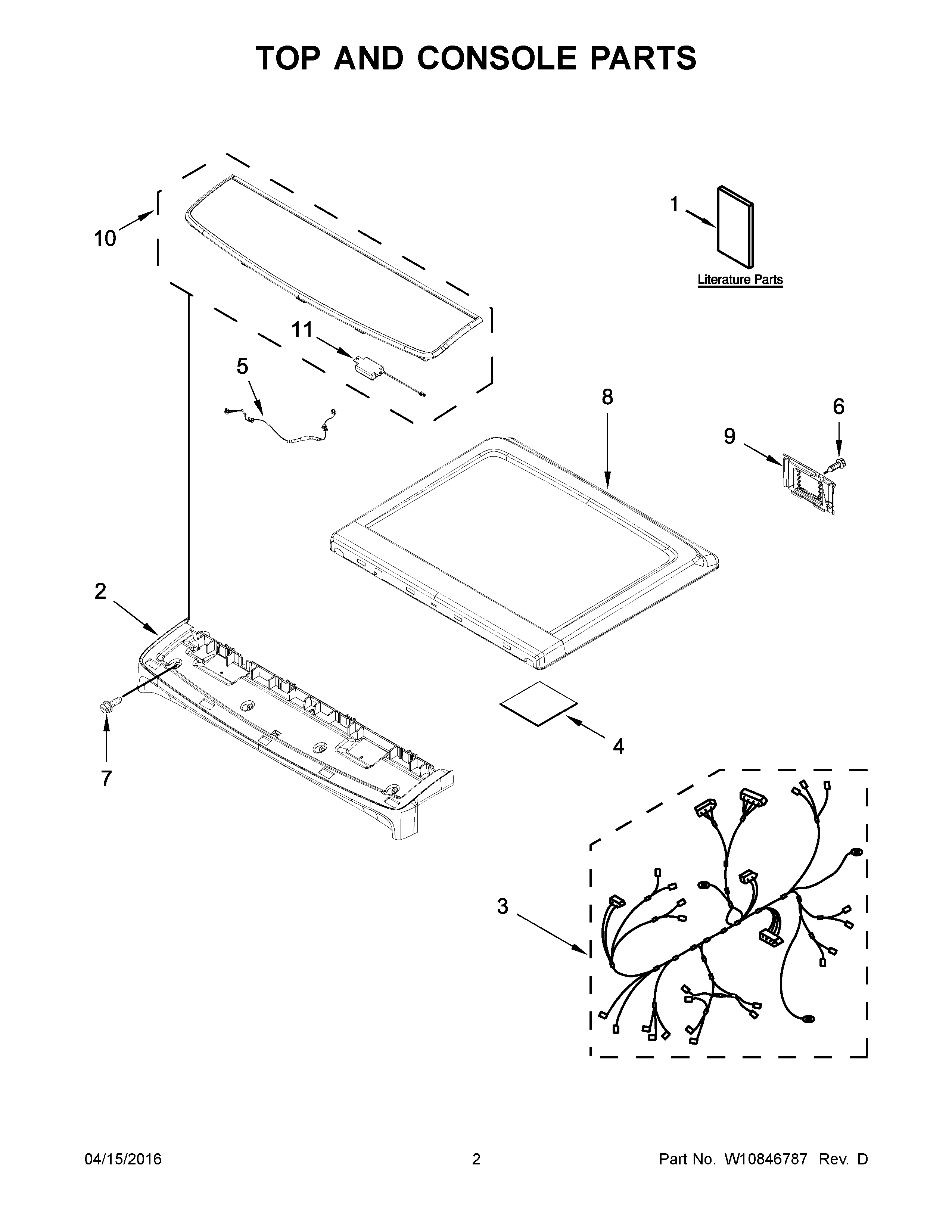

WED9500EC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
1BTECH SHEET
1CQUICKSTART GUIDE
2ACONSOLE SHELL ASSEMBLY (CHROME SHADOW)
2CONSOLE SHELL ASSEMBLY (WHITE)
3HARNESS, MAIN
4W11668653 Whirlpool Sound Panel
5HARNESS, USER INTERFACE
6WP3390631 Whirlpool Screw
7W11693756 Whirlpool Screw Assembly
8TOP (WHITE)
8ATOP (CHROME SHADOW)
9WPW10316167 Whirlpool Dishwasher Terminal Cover
10FASCIA ASSEMBLY, CONSOLE
11W11123146 Whirlpool Speaker
