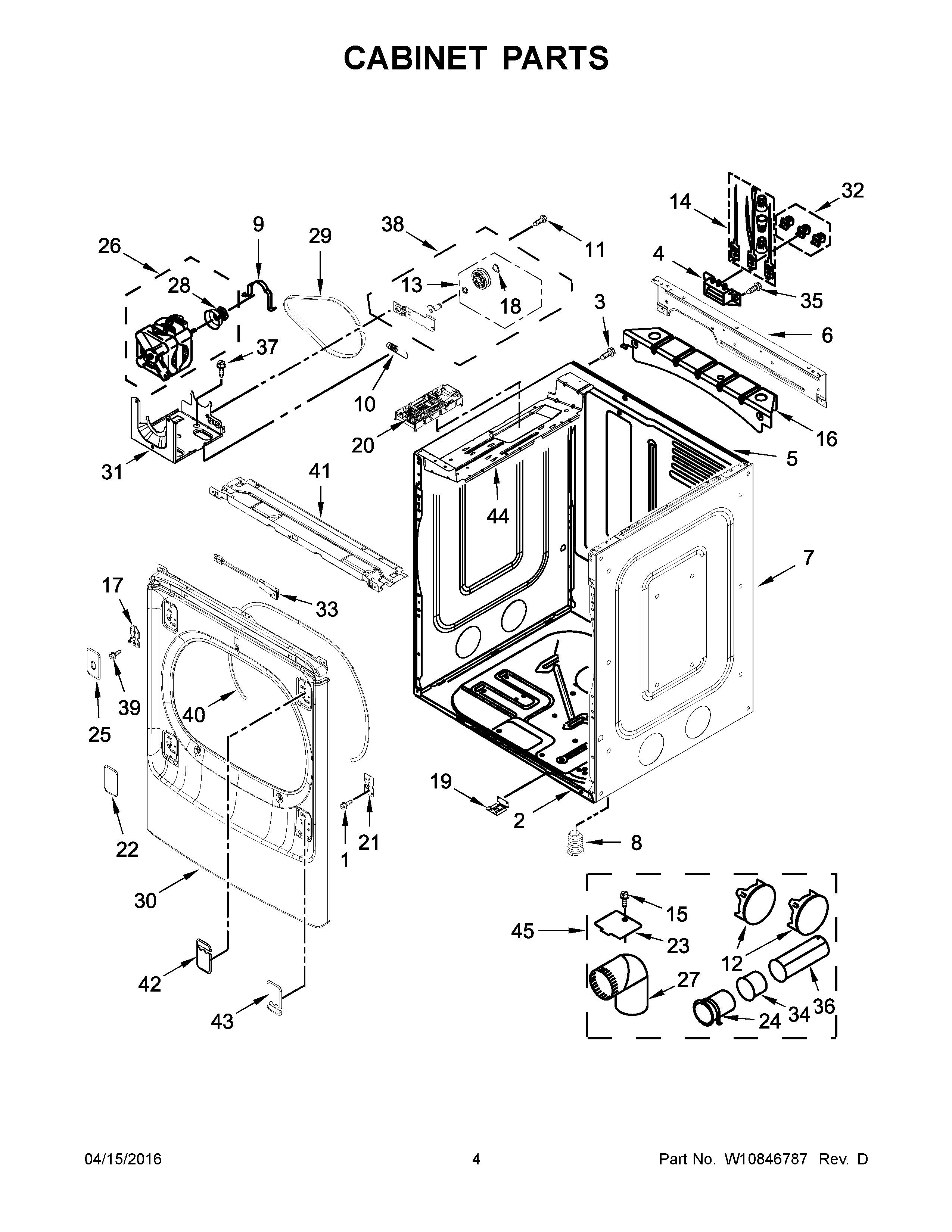

WED9500EC0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	SCREW
2	W10613683 Whirlpool Base
3	WP488729 Whirlpool Refrigerator Door Screw
4	WP3397659 Whirlpool Terminal Block
5	W10824896 Whirlpool Rear Panel
6	BRACKET, UPPER REAR PANEL
7A	W10681832 Whirlpool Cabinet Assembly
7	PANEL, SIDE (WITHOUT SIGHT HOLE) (WHITE)
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	W11568617 Whirlpool Screw
16	W11282908 Whirlpool Bracket
17	W10627440 Whirlpool Strike Assembly
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	SPACER BRACKET, LOWER
20	W10849073 Whirlpool Electronic Control Board + Core
21	BRACKET, HINGE
22A	W10627445 Whirlpool Plug
22	W10627437 Whirlpool Plug
23	WPW10354249 Whirlpool Cover
24	WP8563747 Whirlpool Exhaust Pipe
25	W10627435 Whirlpool Plate
25A	W10627443 Whirlpool Plate
26	W11105178 Whirlpool Drive Motor
27	WPW10416072 Whirlpool Elbow
28	W11568637 Whirlpool Motor Pulley
29	W11568627 Whirlpool Belt
30	PANEL, FRONT (WHITE)
30A	W10884830 Whirlpool Panel
31	W10578053 Whirlpool Base Assembly
32	279393 Whirlpool Terminal Block Screw and Nut Kit
33	W10761357 Whirlpool Door Switch
34	WPW10331278 Whirlpool Exhaust Pipe
35	WP308685 Whirlpool Microwave Screw
36	WP8563749 Whirlpool Exhaust Pipe
37	SCREW
38	W10837240 Whirlpool Dryer Idler Pulley
39	SCREW
40	WP3387242 Whirlpool Seal
41	W10627432 Whirlpool Bracket Assembly
42A	W10627444 Whirlpool Cover
42	W10627436 Whirlpool Cover
43A	W10627439 Whirlpool Cover
43	W10627438 Whirlpool Cover Assembly
44	BRACKET, ELE
45	W10858320 Whirlpool Dryer Exhaust Kit
