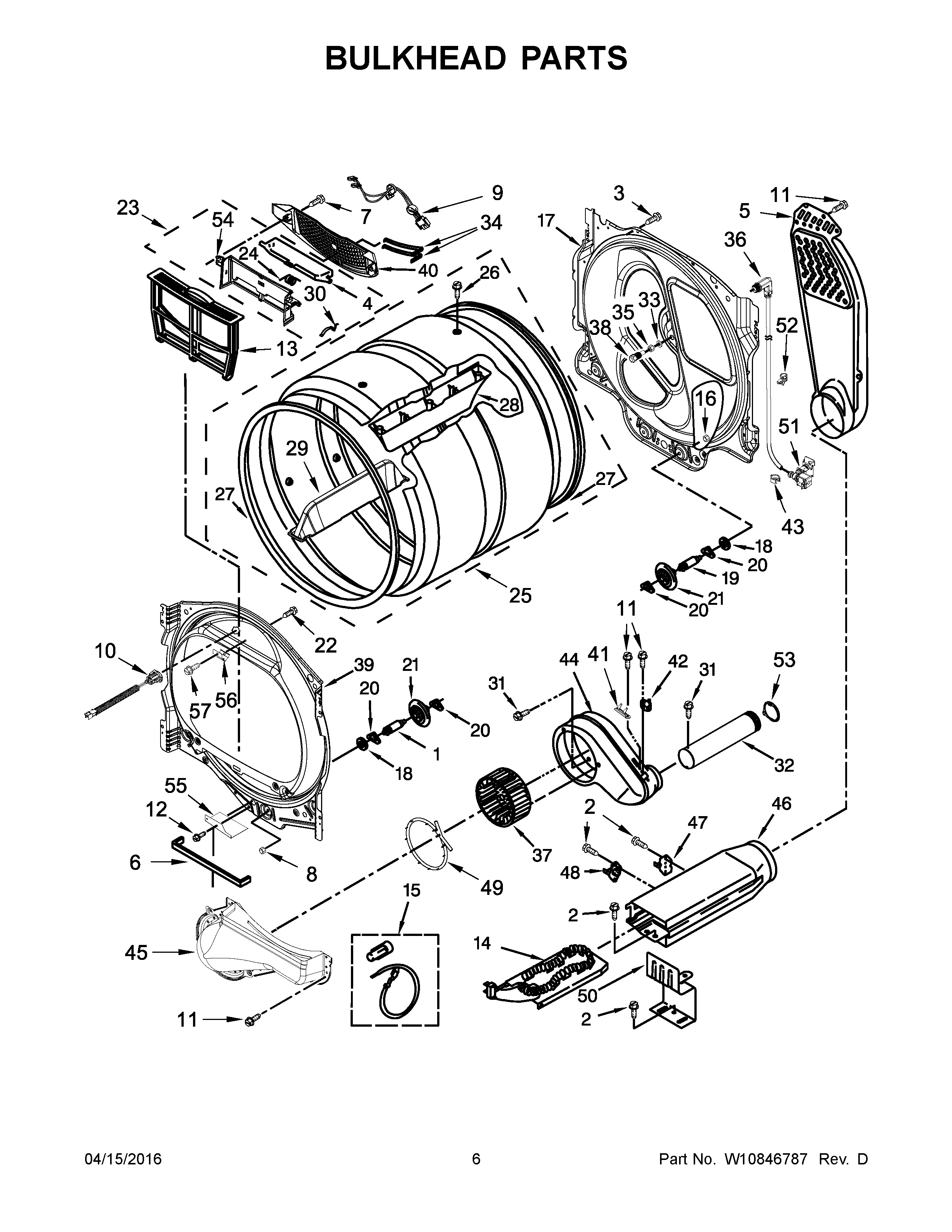

WED9500EC0 04 – BULKHEAD PARTS

WED9500EC0 04 – BULKHEAD PARTS

Written by

in

WED9500EC0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP489463 Whirlpool Refrigerator Screw
3	W10636208 Whirlpool Screw
5	W11104017 Whirlpool Air Duct Assembly
6	SEAL, HOUSING OUTLET TO LINT DUCT
7	WP3387230 Whirlpool Screw
8	WPW10080210 Whirlpool Nut
9	W11161899 Whirlpool Wire
10	W10857115 Whirlpool Light Bulb
11	WP693995 Whirlpool Screw
12	WP308685 Whirlpool Microwave Screw
13	W10859086 Whirlpool Dryer Lint Screen
14	W11025156 Whirlpool Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11135006 Whirlpool Bulkhead
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	W10718190 Whirlpool Screw
24	W11242876 Whirlpool Out Housing
25	W11647229 Whirlpool Drum Assembly SS29
26	W10853898 Whirlpool Screw
27	W11189144 Whirlpool Felt Seal
28	W10842703 Whirlpool Drum Baffle
29	W10842683 Whirlpool Drum Baffle
30	W10608815 Whirlpool Clip
31	WP90767 Whirlpool Screw
32	W10608817 Whirlpool Exhaust Pipe
33	W10044579 Whirlpool Washer
34	W11165163 Whirlpool Electrode Assembly
35	W10044628 Whirlpool Nut
36	W10638152 Whirlpool Hose
37	WP697772 Whirlpool Dryer Blower Wheel
38	W10363169 Whirlpool Nozzle
39	W10861007 Whirlpool Bulkhead Assembly
40	W10608813 Whirlpool Outside Grille
41	FUSE-THRML
42	WP8577274 Whirlpool Dryer Thermistor
43	W10044599 Whirlpool Clip
44	W11246350 Whirlpool Housing
45	W10868982 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48	WP8557403 Whirlpool Thermostat
49	W10868675 Whirlpool Seal
50	8066099 Whirlpool Bracket
51	W11245113 Whirlpool Valve Assembly
52	WP3391018 Whirlpool Wire Tie
53	WPW10344699 Whirlpool Collar
55	SHIELD
56	BRACKET, FRONT PANEL TO BULKHEAD
57	WP3400805 Whirlpool Screw Assembly
