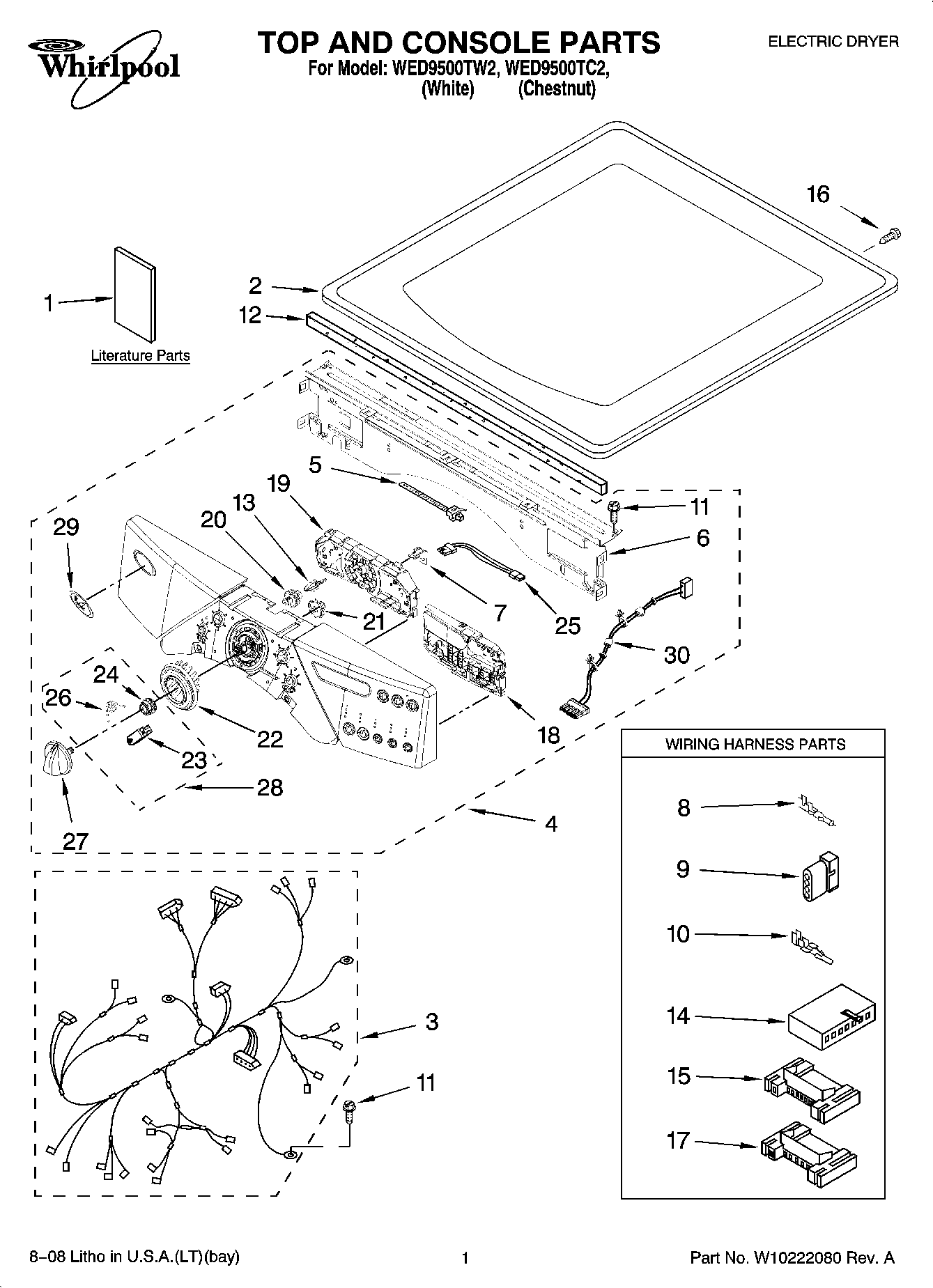

WED9500TW2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Tech Sheet
1	Use & Care Guide
1	Installation, Diagnostic Guide
1	Sheet, Tip Steam Dry
1	Guide, Quick Start
2	Top (Chestnut)
2	Top (White)
3	Harness, Main
4	Panel, Console (Includes Illus: 10,20,21,22,27 & 28) (White)
4	Panel, Console (Includes Illus: 10,20,21,22,27 & 28) (Chestnut)
5	WP3391018 Whirlpool Wire Tie
6	BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7	W10112268 Whirlpool Clip
8	WP94614 Whirlpool Terminal
9	3936144 Whirlpool Connector
10	WP596797 Whirlpool Terminal
11	WP488729 Whirlpool Refrigerator Door Screw
12	W10112267 Whirlpool Seal Assembly
13	W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
14	3936150 Whirlpool Connector
15	3395683 Whirlpool Connector
16	303776 Whirlpool Dishwasher Screw
17	2203186 Whirlpool Connector
18	User-Interface Center (Includes Illus: 13.)
19	User-Interface (Right)
20	Encoder-Wheel
21	Retainer-Snap
22	KNOB, LIGHT RING (INCLUDES: ITEM 21)
23	Rast, Wheel Assy. (Service Only With Item. 28)
24	Detent Wheel (Service Only With Illus. 28)
25	Harness, Communication
26	Knob, Spring (Service Only With Item 28)
27	Knob, Control (Includes: Item 21) (Chestnut)
27	Knob, Control (Includes: Item. 21) (White)
28	Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29	Medallion
30	WPL W10111020
