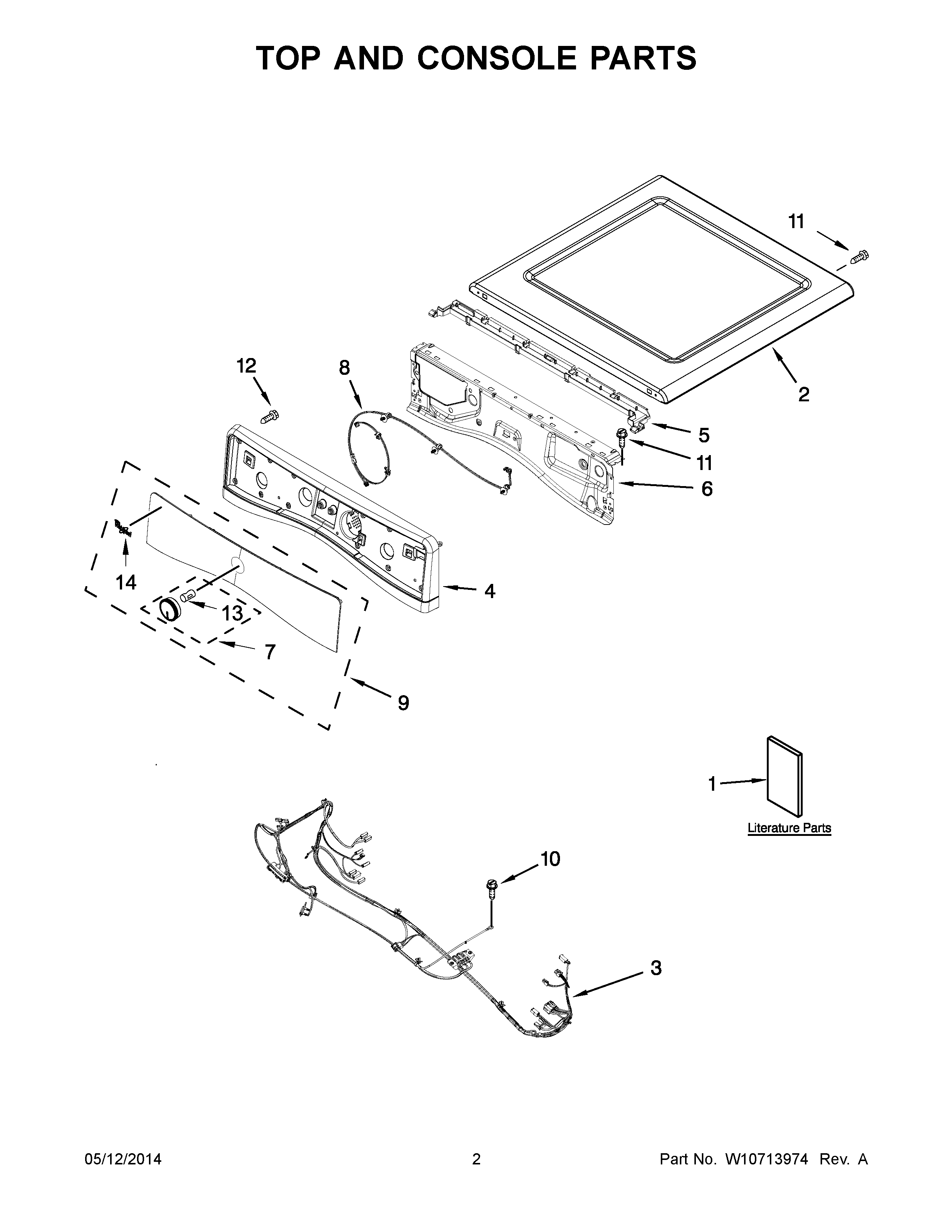

WED95HEDC0 02 – TOP AND CONSOLE PARTS

WED95HEDC0 02 – TOP AND CONSOLE PARTS

Written by

in

WED95HEDC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1QUICK START GUIDE
1TECH SHEET
1USE AND CARE GUIDE
2WPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
2WPW10316282 Whirlpool Top Assembly
3HARNESS, MAIN
4WPW10463687 Whirlpool Console Assembly
4PANEL, CONSOLE ASSEMBLY (SILVER)
4WPW10446407 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7WPW10631127 Whirlpool Knob
7W10875909 Whirlpool Timer Knob
7W10631128 Whirlpool Knob Assembly
8W10837344 Whirlpool Wire Harness
9W10838287 Whirlpool Control Panel
9W10750357 Whirlpool Control Panel
9W10750358 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14W11178521 Whirlpool Dishwasher Nameplate
14W10510982 Whirlpool Nameplate
