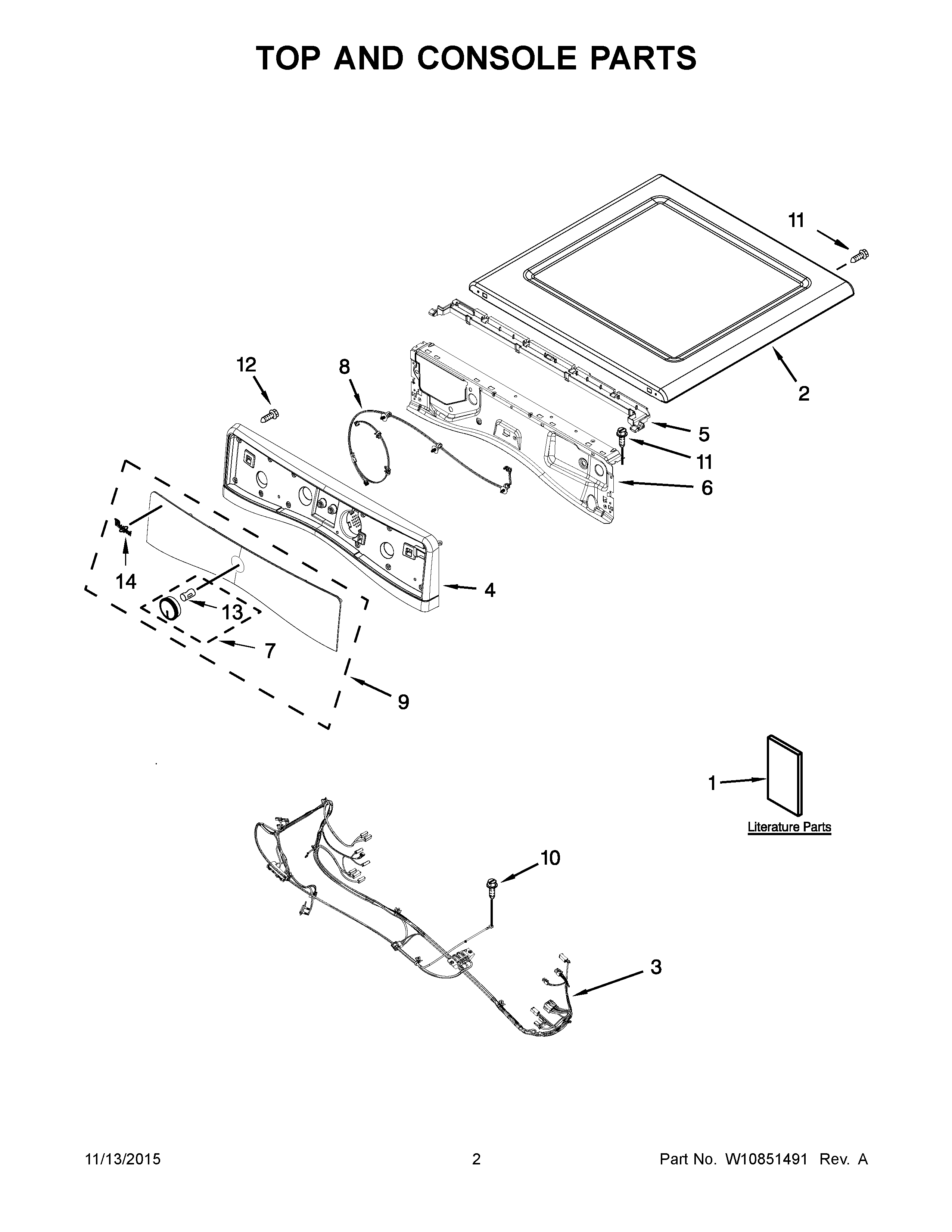

WED95HEDC1 02 – TOP AND CONSOLE PARTS

WED95HEDC1 02 – TOP AND CONSOLE PARTS

Written by

in

WED95HEDC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1CINSTALLATION INSTRUCTIONS
1QUICK START GUIDE
1AUSE AND CARE GUIDE
2AWPW10460919 Whirlpool Top
2BWPW10316282 Whirlpool Top Assembly
2WPW10208383 Whirlpool Top Panel
3W10637533 Whirlpool Wire Harness
4BPANEL, CONSOLE ASSEMBLY (SILVER)
4WPW10446407 Whirlpool Console
4AWPW10463687 Whirlpool Console Assembly
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
7BW10631128 Whirlpool Knob Assembly
7AWPW10631127 Whirlpool Knob
8W10837344 Whirlpool Wire Harness
9BW10800230 Whirlpool Control Panel
9AW10800229 Whirlpool Control Panel
9W10800228 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14W11178521 Whirlpool Dishwasher Nameplate
14AWPW10393264 Whirlpool Refrigerator Nameplate
