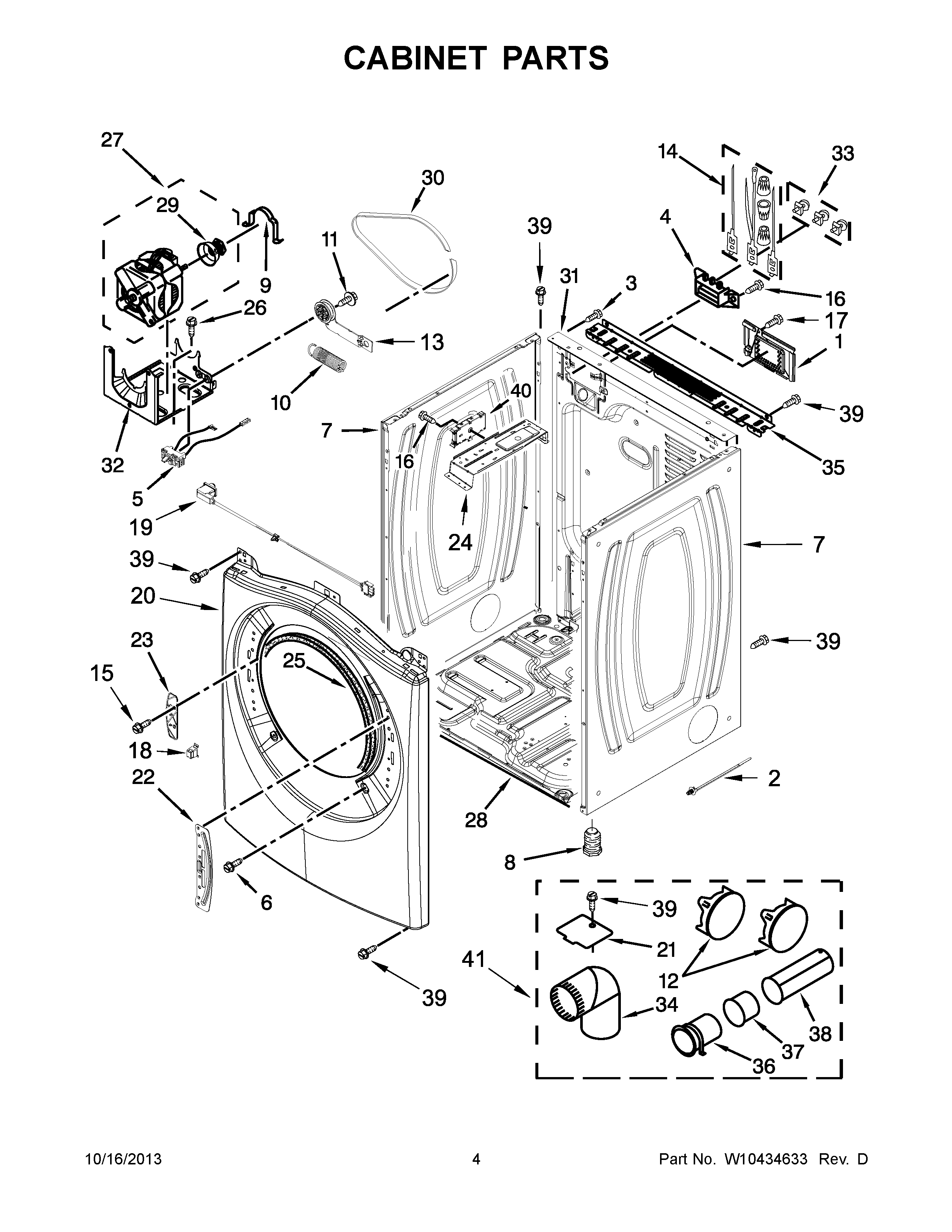

WED95HEXL1 03 – CABINET PARTS

WED95HEXL1 03 – CABINET PARTS

Written by

in

WED95HEXL1 03 – CABINET PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NI49621 Whirlpool Leveling Feet
1WPW10316167 Whirlpool Dishwasher Terminal Cover
2WPW10339879 Whirlpool Wire Tie
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5W10847984 Whirlpool Switch
6WP308685 Whirlpool Microwave Screw
7WPW10468499 Whirlpool Panel
7PANEL, SIDE (L.H.) (RED)
7W11233548 Whirlpool Panel
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13W10837240 Whirlpool Dryer Idler Pulley
14279318 Whirlpool Terminal
15SCREW
17WP3390631 Whirlpool Screw
18W11240283 Whirlpool Catch Assembly
19DOOR SWITCH ASSEMBLY
20FRONT PANEL (INCLUDE ITEM, 25. ) (WHITE)
20W10337783 Whirlpool Panel
20WPW10316296 Whirlpool Panel
21WPW10354249 Whirlpool Cover
22BRACKET, DOOR HINGE
23WPW10208250 Whirlpool Strike
24BRACKET, CONTROL
25WP3387242 Whirlpool Seal
26SCREW
27279787 Whirlpool Dryer Drive Motor
28W11215531 Whirlpool Base
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10487430 Whirlpool Rear Panel
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35WPW10208382 Whirlpool Dryer Bracket
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39WP488729 Whirlpool Refrigerator Door Screw
40W10845086 Whirlpool Control Board + Core
41W10323246 Whirlpool Dryer Vent Kit 4-Way
