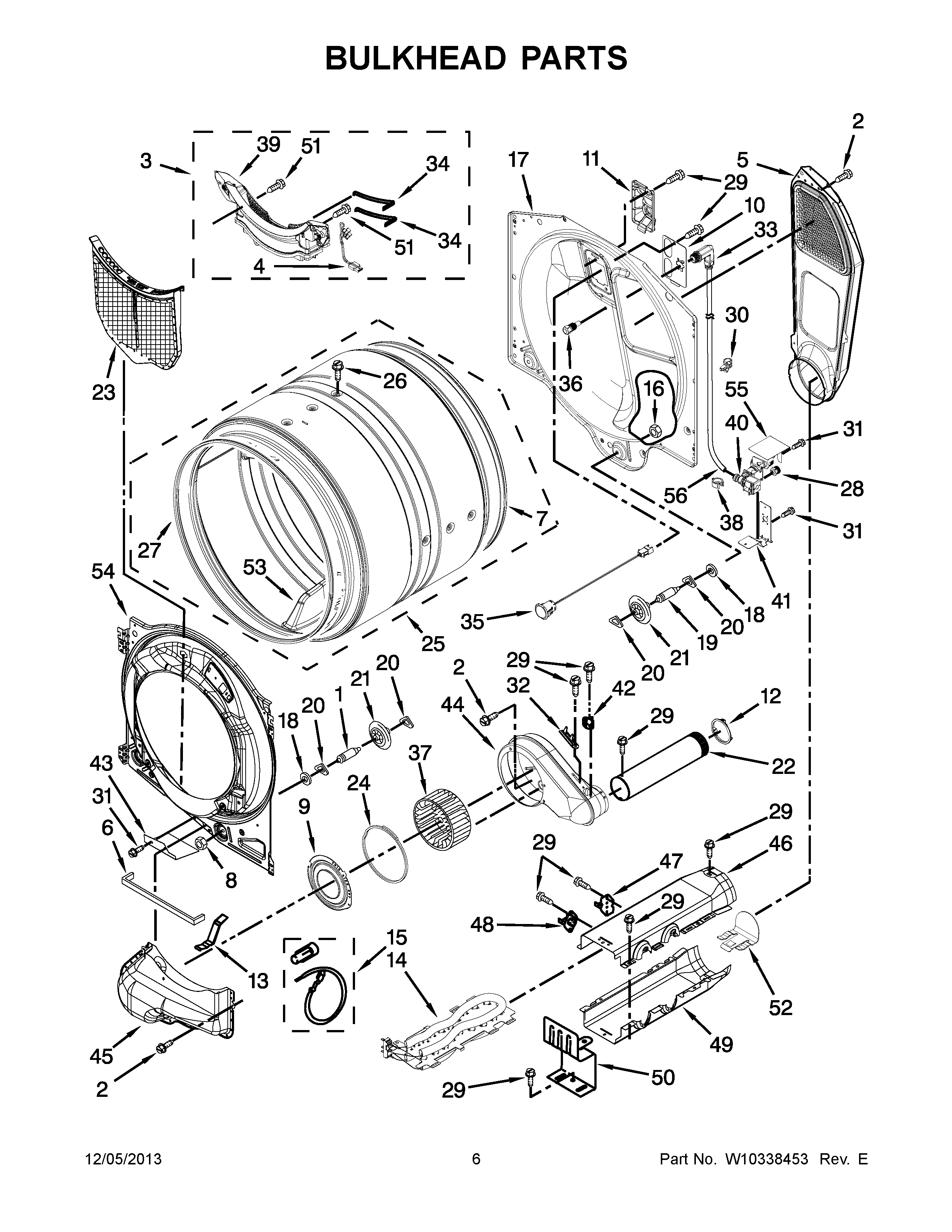

WED95HEXW0 04 – BULKHEAD PARTS
Written by
in
WED95HEXW0 04 – BULKHEAD PARTS
Products
Position
Product
1
SHAFT
2
WP488729 Whirlpool Refrigerator Door Screw
3
HOUSNG-DRYER LINT
4
WPW10298258 Whirlpool Wire Harness
5
WP3387911 Whirlpool Air Duct
6
W11676493 Whirlpool Seal Assembly
7
280114 Whirlpool Dryer Drum Seal
8
WPW10080210 Whirlpool Nut
9
W10211901 Whirlpool Cover Assembly
10
WPW10656504 Whirlpool Bracket
11
WPW10208422 Whirlpool Dryer Light Deflector Cover
12
WPW10344699 Whirlpool Collar
13
W10414388 Whirlpool Clip
14
WP8544772 Whirlpool Element
15
279457 Whirlpool Dryer Heating Element Wide Spade Connection
16
WPW10080190 Whirlpool Nut
17
BULKHEAD, REAR
18
W11236646 Whirlpool Washer Assembly
19
SHAFT
20
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21
WPW10314173 Whirlpool Dryer Drum Support Wheel
22
279936 Whirlpool Exhaust Pipe
23
SCREEN – LINT. ALPHA W/FELT
24
SEAL, BLOWER COVER
25
W10541657 Whirlpool Drum Assembly
26
W10853898 Whirlpool Screw
27
W11193479 Whirlpool Seal
28
W10859554 Whirlpool Coupler
29
WP693995 Whirlpool Screw
30
WP3391018 Whirlpool Wire Tie
31
WP90767 Whirlpool Screw
32
WP3392519 Whirlpool Dryer Thermal Fuse
34
WP3387223 Whirlpool Electrode Assembly
35
DRUM LIGHT ASSEMBLY-LED
36
WPW10277503 Whirlpool Nozzle
37
WP697772 Whirlpool Dryer Blower Wheel
38
W10044599 Whirlpool Clip
39
W11125442 Whirlpool Outer Grille
40
W10815373 Whirlpool Valve
41
BRACKET, VALVE
42
WP8577274 Whirlpool Dryer Thermistor
43
W11257251 Whirlpool Shield
44
WPW10211911 Whirlpool Housing
45
WPW10211896 Whirlpool Duct Lint
46
WP8544769 Whirlpool Box
47
WP8557403 Whirlpool Thermostat
48
280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
49
HOUSING TAB, HEATER BOX
50
8066099 Whirlpool Bracket
51
WP3387230 Whirlpool Screw
52
8544776 Whirlpool Clip Assembly
53
W10280771 Whirlpool Drum Baffle
54
W10673491 Whirlpool Bulkhead Assembly
55
W10184825 Whirlpool Cover
56
WPW10347739 Whirlpool Hose
←
