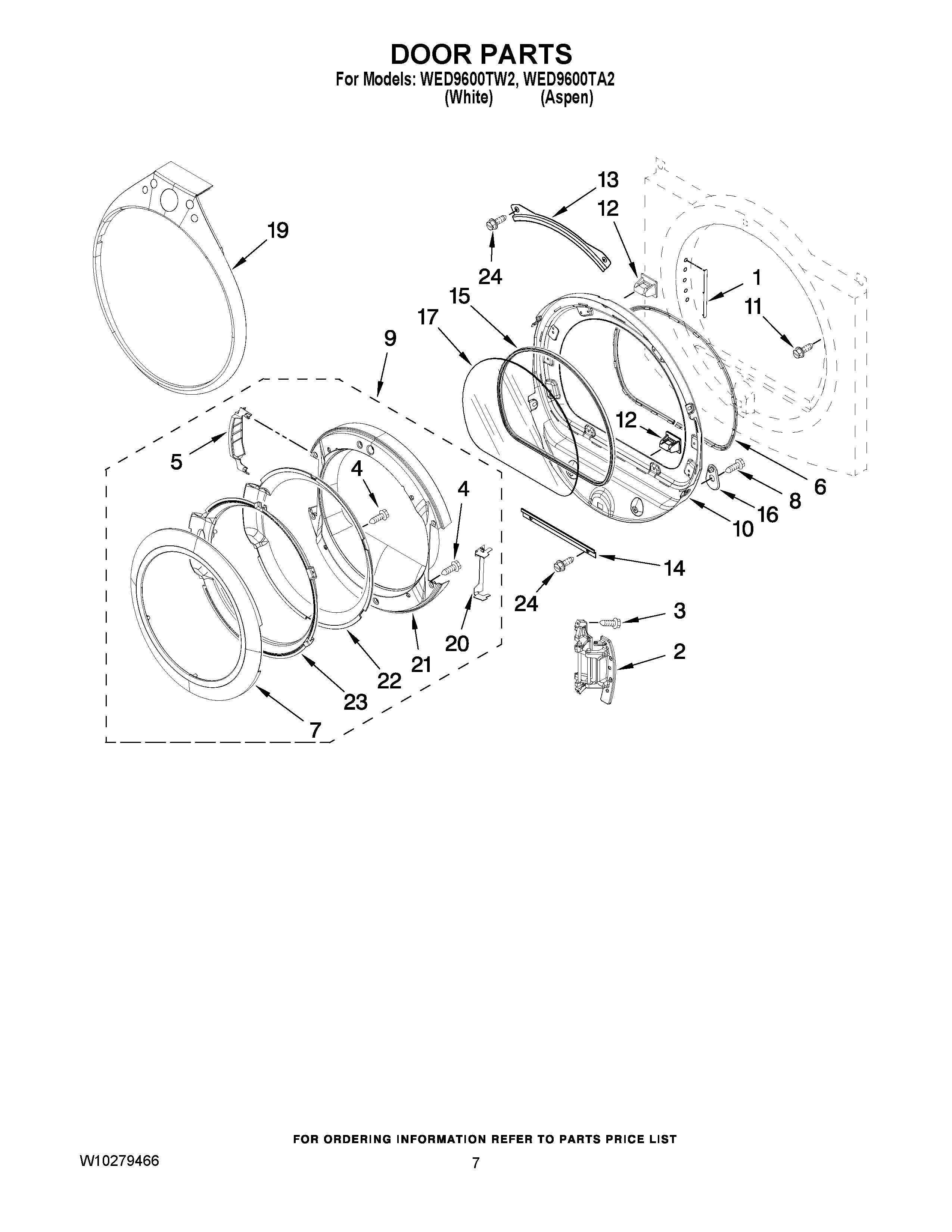

WED9600TA2 04 – DOOR PARTS

Products

Position	Product
1	W10085210 Whirlpool Label
1	WPW10085230 Whirlpool Label Assembly
2	WPW10310366 Whirlpool Hinge
3	WPW10159996 Whirlpool Screw
4	SCREW
5	Cover-Hinge, Stationary (LH)
5	COVER HINGE (STATIONARY (RH))
6	WPW10139457 Whirlpool Door Seal
7	Handle, Ring Door (Silver)
8	WP308685 Whirlpool Microwave Screw
9	Door Assembly (Outer) (Silver)
10	Door Assembly (Inner) (Includes Illus. 12 & 18)
11	WP355515 Whirlpool Screw
12	279570 Whirlpool Dryer Door Latch Kit
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	Screw-Plug
17	WP8566254 Whirlpool Window Assembly
19	WPW10180500 Whirlpool Trim
20	Door Shield
21	Door, Intermediate
22	Door Mask
23	Door Screen
24	WP3373329 Whirlpool Dishwasher Screw
