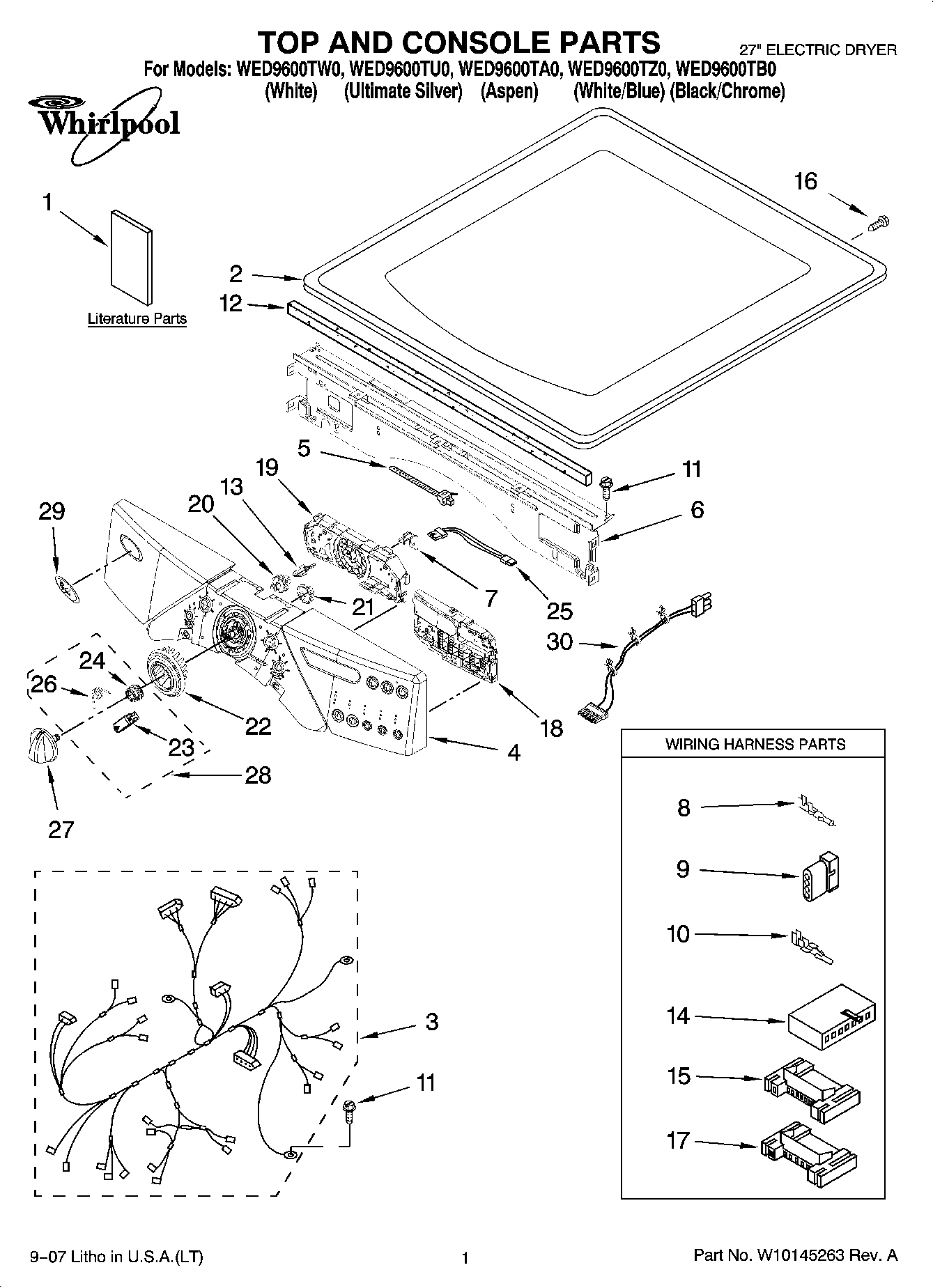

WED9600TB0 01 – TOP AND CONSOLE PARTS
Written by
in
WED9600TB0 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
Guide, Quick Start
1
Use & Care Guide
1
Sheet, Tip Steam Dry
1
Installation, Diagnostic Guide
1
Tech Sheet
2
Top (Ultimate Silver)
2
Top (Aspen)
2
Top (Black/Chrome)
2
Top (White)
3
Harness, Main
4
Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (Ultimate Silver)
4
Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (Aspen)
4
Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (White/Blue)
4
Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (Black/Chrome)
4
Panel, Console (Includes Illus: 20,21,22,27,28 & 29) (White)
5
WP3391018 Whirlpool Wire Tie
6
Bracket, Console (Includes No.12)
7
W10112268 Whirlpool Clip
8
WP94614 Whirlpool Terminal
9
3936144 Whirlpool Connector
10
WP596797 Whirlpool Terminal
11
WP488729 Whirlpool Refrigerator Door Screw
12
W10112267 Whirlpool Seal Assembly
13
W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
14
3936150 Whirlpool Connector
15
3395683 Whirlpool Connector
16
Screw, 8-18 x 1/2
17
2203186 Whirlpool Connector
18
User Interface (Right)
19
W10110658 Whirlpool Electronic Control Board
20
Encoder-Wheel
21
Retainer-Snap
22
KNOB, LIGHT RING (INCLUDES: ITEM 21)
23
Rast, Wheel Assy. (Service Only With Item. 28)
24
Detent Wheel (Service Only With Illus. 28)
25
Harness, Communication
26
Knob, Spring (Service Only With Item 28)
27
Knob, Control (Black/Chrome (Includes: Item. 21))
27
Knob,
27
WPL W10116706
27
Knob, Control (Includes: Item. 21) (Ultimate Silver)
27
Knob, Control (Includes: Item. 21) (White)
28
Encoder, Wheel Kit (Includes Items: 23, 24, & 26
29
Medallion
30
WPL W10110976
←
