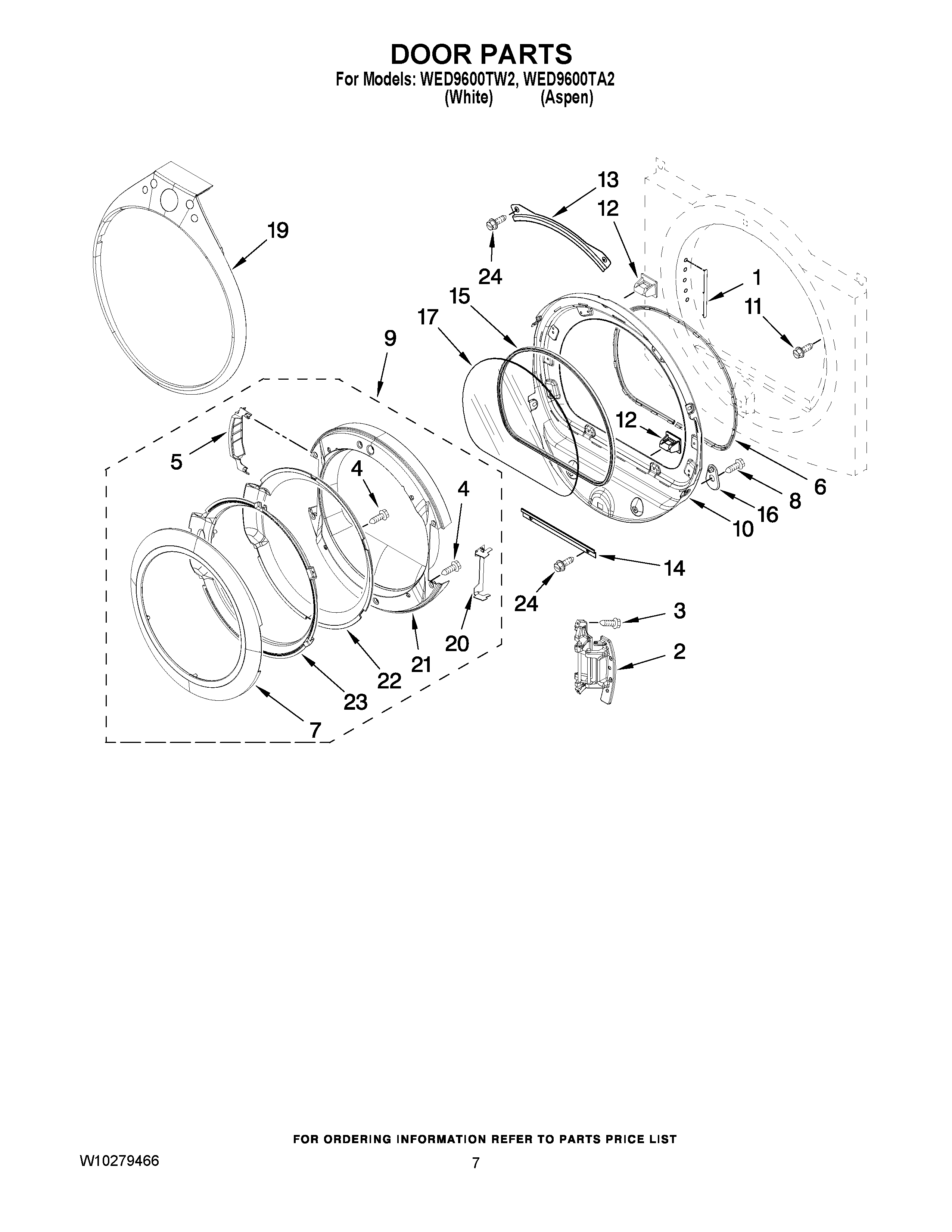

WED9600TW2 04 – DOOR PARTS

Products

PositionProduct
1W10085210 Whirlpool Label
1WPW10085230 Whirlpool Label Assembly
2WPW10310366 Whirlpool Hinge
3WPW10159996 Whirlpool Screw
4SCREW
5Cover-Hinge, Stationary (LH)
5COVER HINGE (STATIONARY (RH))
6WPW10139457 Whirlpool Door Seal
7Handle, Ring Door (Silver)
8WP308685 Whirlpool Microwave Screw
9Door Assembly (Outer) (Silver)
10Door Assembly (Inner) (Includes Illus. 12 & 18)
11WP355515 Whirlpool Screw
12279570 Whirlpool Dryer Door Latch Kit
138519356 Whirlpool Retainer
14W10822054 Whirlpool Retainer
158579662 Whirlpool Seal
16Screw-Plug
17WP8566254 Whirlpool Window Assembly
19WPW10180500 Whirlpool Trim
20Door Shield
21Door, Intermediate
22Door Mask
23Door Screen
24WP3373329 Whirlpool Dishwasher Screw
