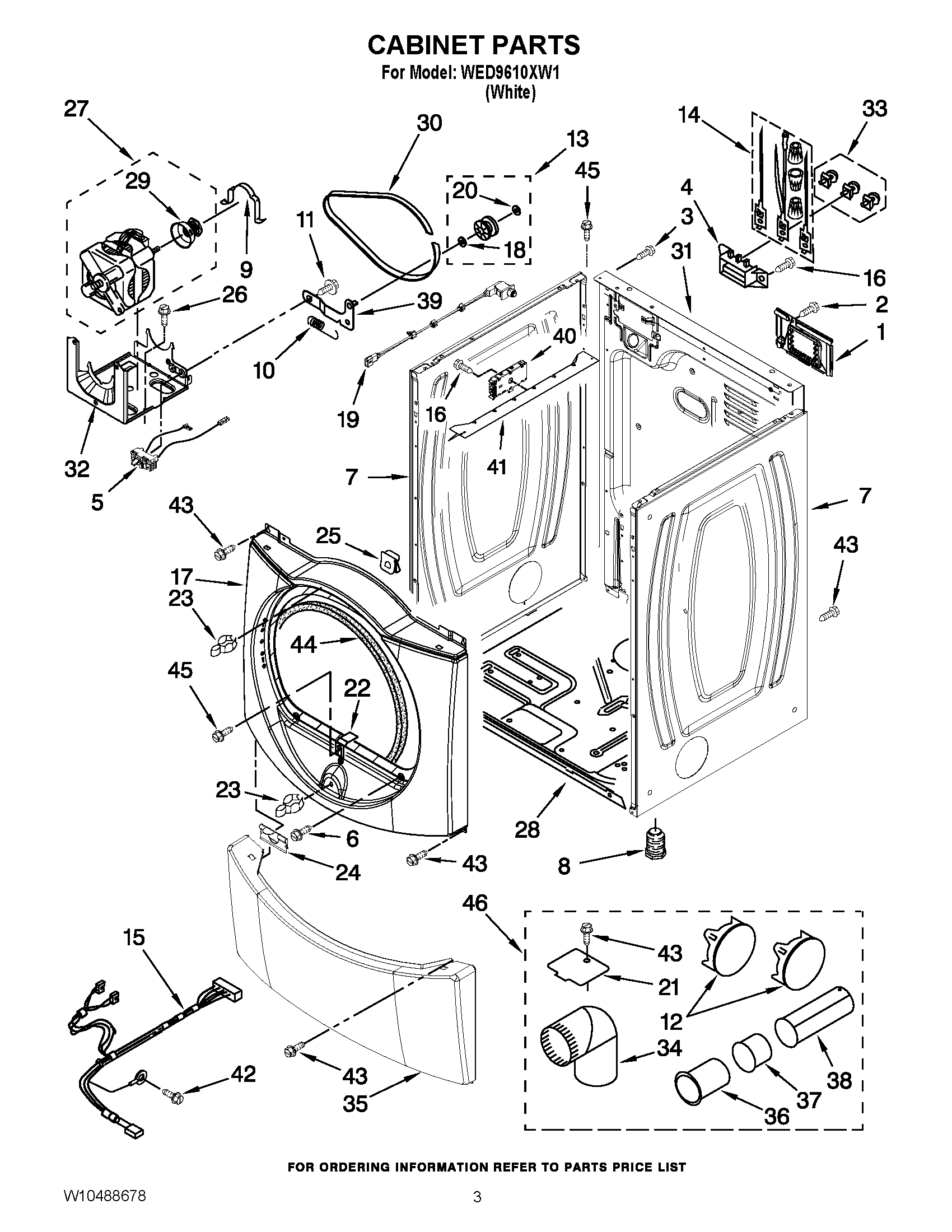

WED9610XW1 02 – CABINET PARTS

Products

Position	Product
NI	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
NI	49621 Whirlpool Leveling Feet
1	WPW10119283 Whirlpool Terminal Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10847984 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	W10242904 Whirlpool Wire Harness
17	WPL W10180423
18	WPW10121334 Whirlpool Washer
19	W10128087 Whirlpool Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10354249 Whirlpool Cover
22	Ramp, Door
23	279570 Whirlpool Dryer Door Latch Kit
24	W11295573 Whirlpool Clip
25	Clip, Mounting (2)
26	SCREW
27	279787 Whirlpool Dryer Drive Motor
28	BASE, CABINET
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10487430 Whirlpool Rear Panel
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	TOE-PANEL (WHITE)
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	CONTROL BOARD
41	WP8563727 Whirlpool Bracket
42	WP693995 Whirlpool Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
