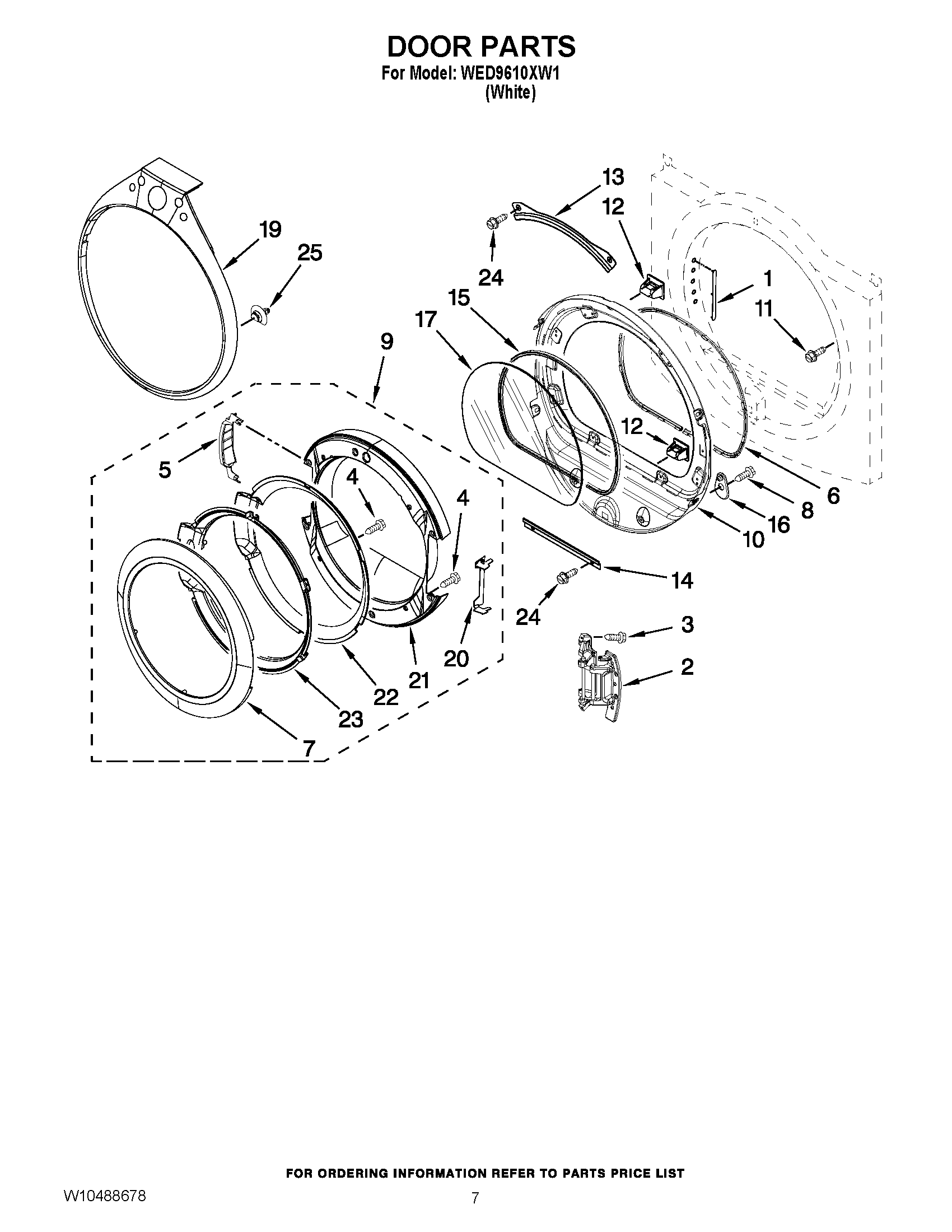

WED9610XW1 04 – DOOR PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	COVER HINGE (STATIONARY (RH))
1	WPW10085230 Whirlpool Label Assembly
2	WPW10310366 Whirlpool Hinge
3	WPW10159996 Whirlpool Screw
4	SCREW
5	Cover-Hinge, Stationary (LH)
6	WPW10139457 Whirlpool Door Seal
7	HANDLE, RING DOOR
8	WP308685 Whirlpool Microwave Screw
9	DOOR ASSEMBLY (OUTER)
10	INNER DOOR ASSEMBLY
11	WP355515 Whirlpool Screw
12	279570 Whirlpool Dryer Door Latch Kit
13	8519356 Whirlpool Retainer
14	W10822054 Whirlpool Retainer
15	8579662 Whirlpool Seal
16	Screw-Plug
17	WP8566254 Whirlpool Window Assembly
19	TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE)
20	Door Shield
21	Door, Intermediate
22	Door Mask
23	DOOR SCREEN
24	WP3373329 Whirlpool Dishwasher Screw
25	WPW10129065 Whirlpool Clip
