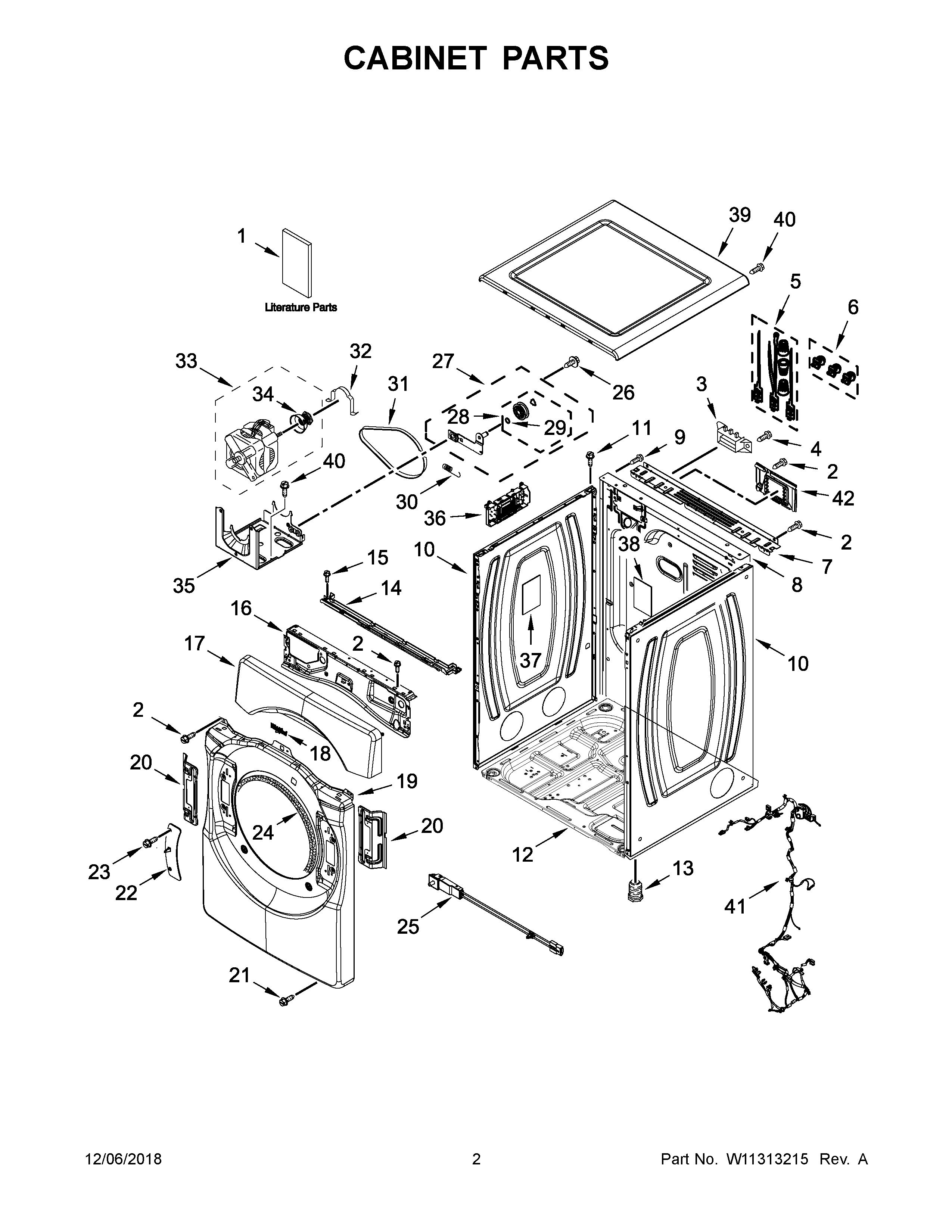

WED9620HBK0 02 – CABINET PARTS

WED9620HBK0 02 – CABINET PARTS

Written by

in

WED9620HBK0 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1USE AND CARE GUIDE
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
1DQUICK START GUIDE
1CWIRING DIAGRAM
2WP488729 Whirlpool Refrigerator Door Screw
3WP3397659 Whirlpool Terminal Block
4WP489463 Whirlpool Refrigerator Screw
5279318 Whirlpool Terminal
6279393 Whirlpool Terminal Block Screw and Nut Kit
7WPW10208382 Whirlpool Dryer Bracket
8W10487430 Whirlpool Rear Panel
9W10850756 Whirlpool Screw
10W11233548 Whirlpool Panel
10AW11315726 Whirlpool Panel Assembly
10BW11315732 Whirlpool Panel
12W11215531 Whirlpool Base
14W11310027 Whirlpool Bracket
15W11686675 Whirlpool Screw
16W11480682 Whirlpool Bracket
17AW11315728 Whirlpool Console
17BW11315731 Whirlpool Console
17W11310042 Whirlpool Console
18W11223753 Whirlpool Refrigerator Nameplate
19W11310029 Whirlpool Panel
19BW11315733 Whirlpool Panel
19APANEL
20W11310030 Whirlpool Bracket Assembly
21WP308685 Whirlpool Microwave Screw
22W11310031 Whirlpool Strike Assembly
23SCREW
24WP3387242 Whirlpool Seal
25W11427601 Whirlpool Door Switch
26WP3389420 Whirlpool Screw
27W10837240 Whirlpool Dryer Idler Pulley
28279640 Whirlpool Dryer Idler Pulley Kit
29WPW10121334 Whirlpool Washer
30WPW10446781 Whirlpool Spring
31661570V Whirlpool Dryer Drum Belt
32CLAMP
33MOTOR-DRVE
34WP8066184 Whirlpool Dryer Motor Pulley
35W11481730 Whirlpool Bracket
36W11419219 Whirlpool Electronic Control Board + Core
37W11409002 Whirlpool Pad
39AWPW10460919 Whirlpool Top
39WPW10208383 Whirlpool Top Panel
39BW11315730 Whirlpool Top
40SCREW
41W11690849 Whirlpool Wire Harness
42WPW10316167 Whirlpool Dishwasher Terminal Cover
