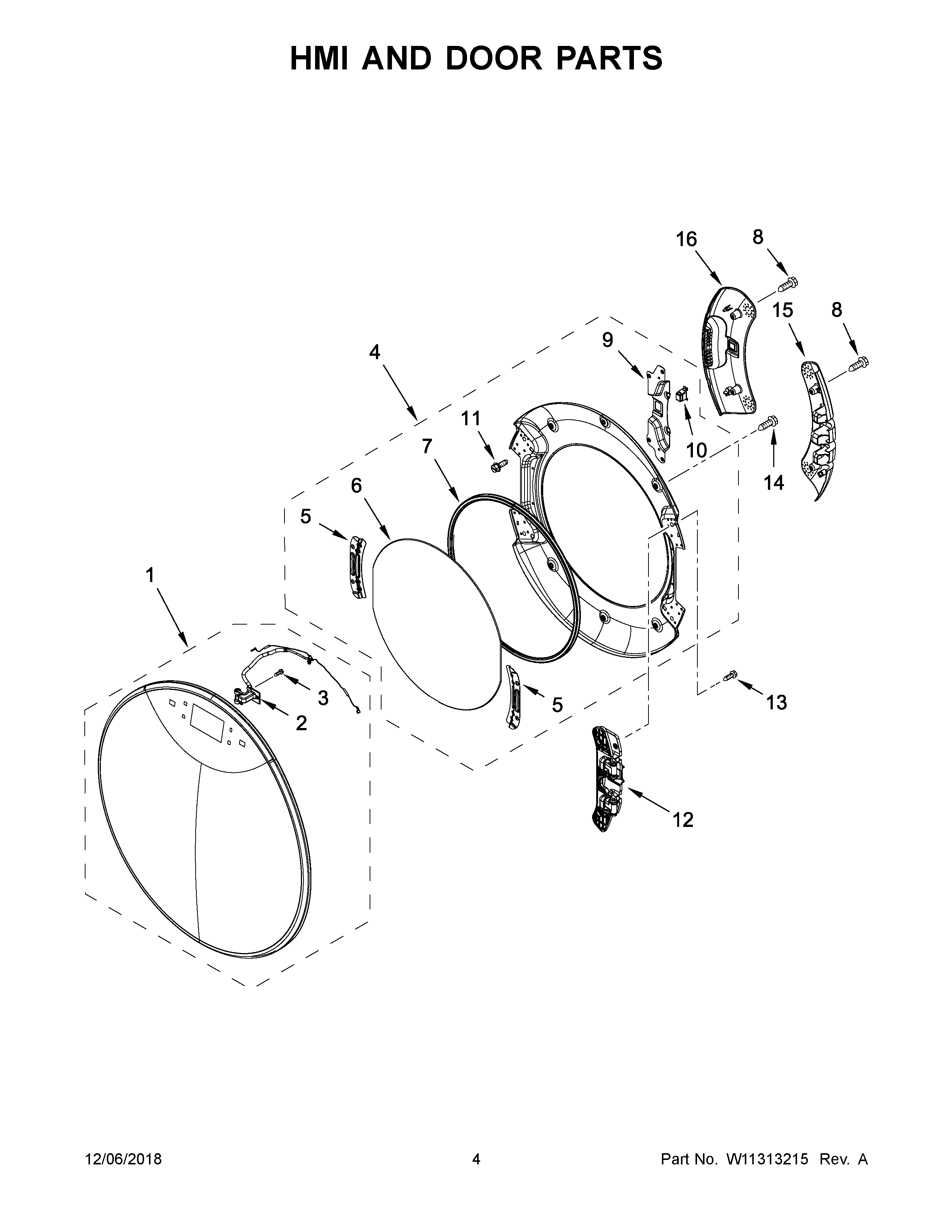

WED9620HW0 03 – HMI AND DOOR PARTS

WED9620HW0 03 – HMI AND DOOR PARTS

Written by

in

WED9620HW0 03 – HMI AND DOOR PARTS

Products

PositionProduct
2W11338345 Whirlpool Wire Harness
3WP8534022 Whirlpool Screw
4W11701946-includeCORE Whirlpool Panel-Ui+Core
5W11310037 Whirlpool Retainer
6W11310036 Whirlpool Door Glass
7W11310035 Whirlpool Seal
8SCREW
9W11310039 Whirlpool Cover
10W11240283 Whirlpool Catch Assembly
11SCREW
12W11310038 Whirlpool Hinge
138540479 Whirlpool Screw
14WP9740849 Whirlpool Screw
15COVER, HINGE
16W11114028 Whirlpool Cover Assembly
