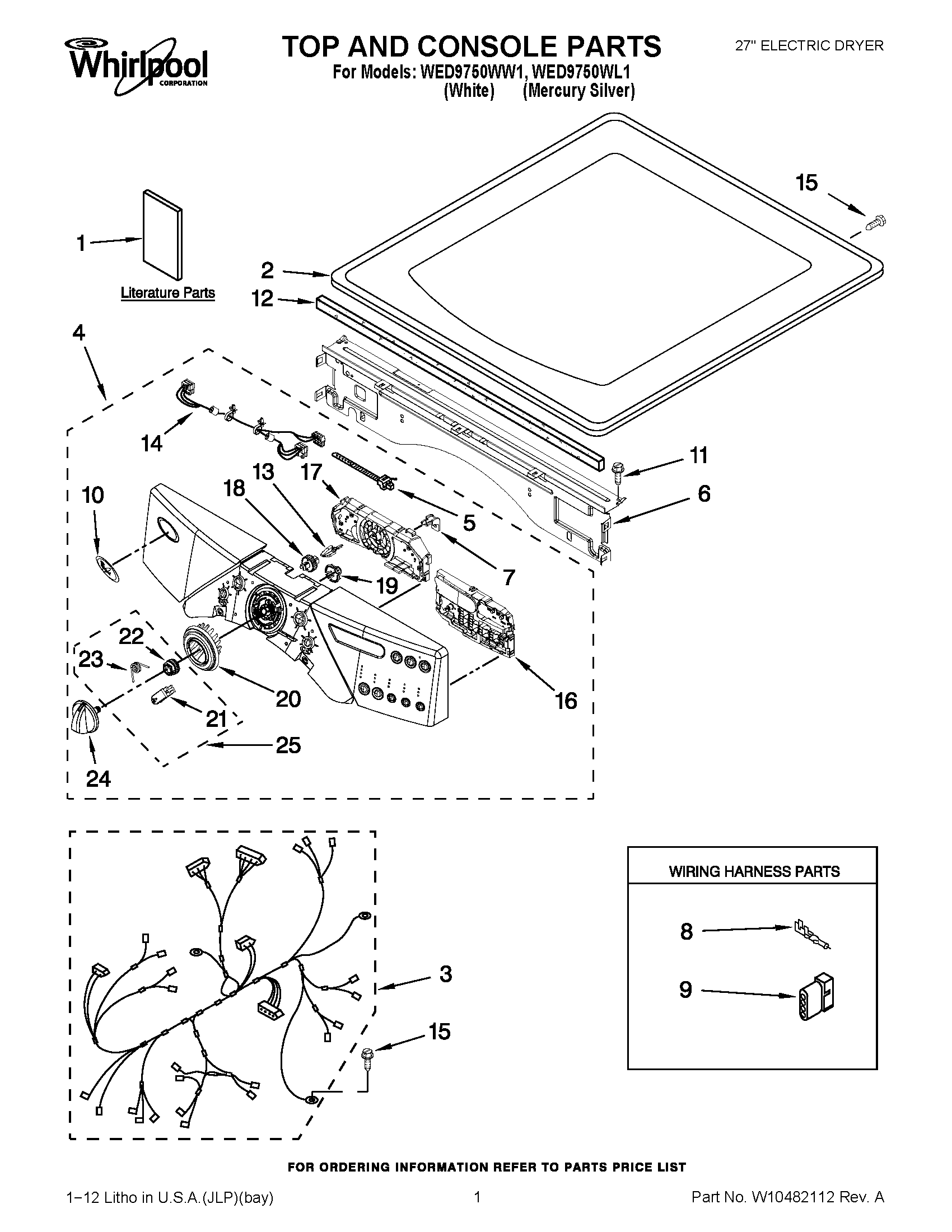

WED9750WW1 01 – TOP AND CONSOLE PARTS

WED9750WW1 01 – TOP AND CONSOLE PARTS

Written by

in

WED9750WW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1USE & CARE GUIDE
1TECH SHEET
2Top (White)
2TOP (MERCURY)
3HARNESS, MAIN
4PANEL, CONSOLE ASSEMBLY (WHITE)
4PANEL, CONSOLE (SILVER)
5WP3391018 Whirlpool Wire Tie
6BRACKET, CONSOLE (INCLUDE, ITEM. 12)
7W10112268 Whirlpool Clip
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10Medallion
11WP488729 Whirlpool Refrigerator Door Screw
12W10112267 Whirlpool Seal Assembly
13W10012480 Whirlpool WP Dishwasher Encoder Adapt Wheel
14W10242906 Whirlpool Wire Harness
15WP693995 Whirlpool Screw
16USER-INTERFACE (RIGHT)
17USER-INTERFACE CENTER (INCLUDES ILLUS: 13.)
18Encoder-Wheel
19Retainer-Snap
20W10250089 Whirlpool Ring
21Rast, Wheel Assy. (Service Only With Item. 28)
22DETENT WHEEL (SERVICE ONLY WITH ITEM. 28 )
23Knob, Spring (Service Only With Item 28)
24W10190685 Whirlpool Knob Assembly
