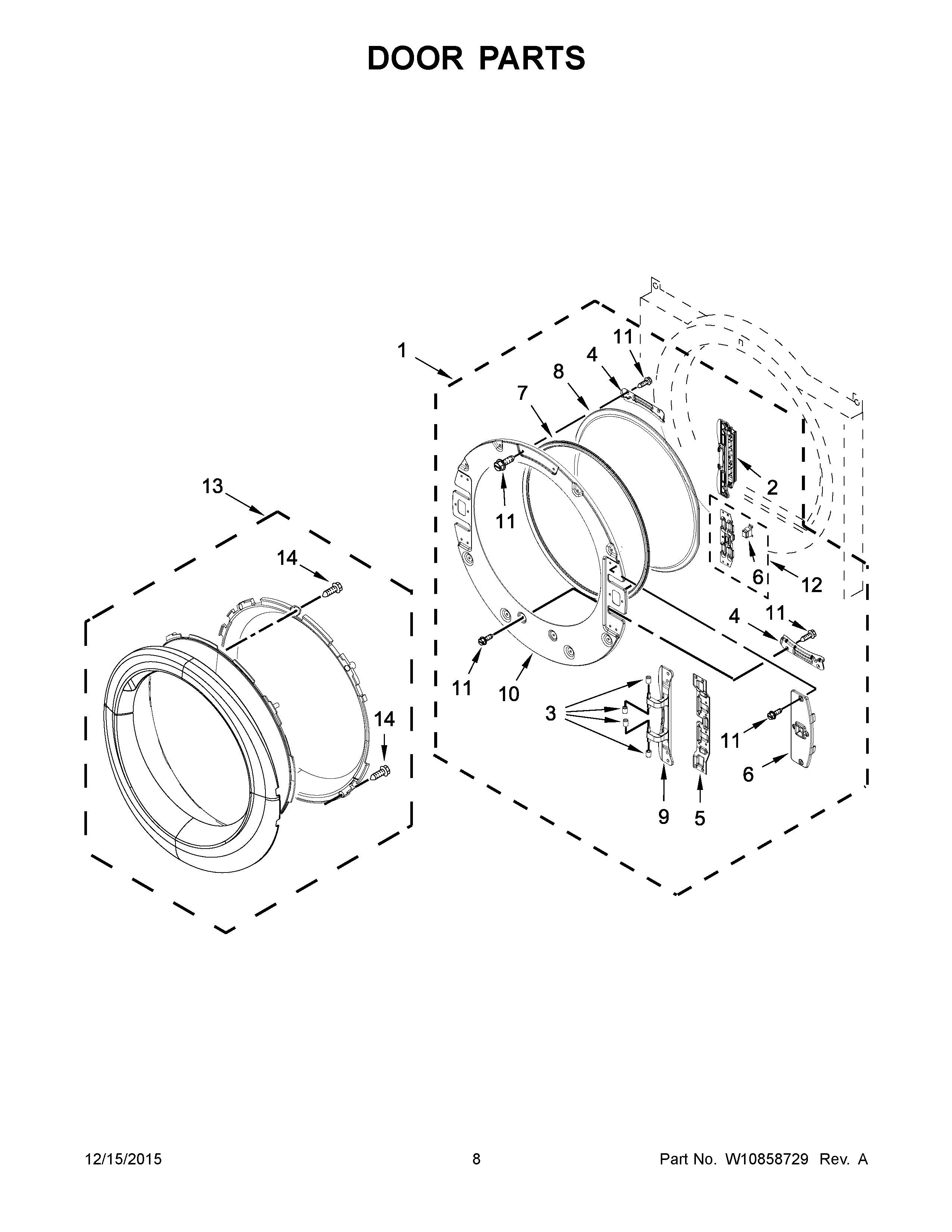

WED97HEDBD1 05 – DOOR PARTS

Products

Position	Product
1	ASSEMBLY, INNER DOOR (CHROME SHADOW)
2	HINGE
3	WPW10208398 Whirlpool Hinge Pin Cap
4	W10208252 Whirlpool Retainer
5	WPW10208419 Whirlpool Plate
6	W11240283 Whirlpool Catch Assembly
7	W11126230 Whirlpool Seal
8	W10823368 Whirlpool Window Assembly
9	HINGE
10	DOOR, INNER
11	SCREW
12	WPW10208254 Whirlpool Catch
13	ASSEMBLY, OUTER DOOR
14	SCREW
