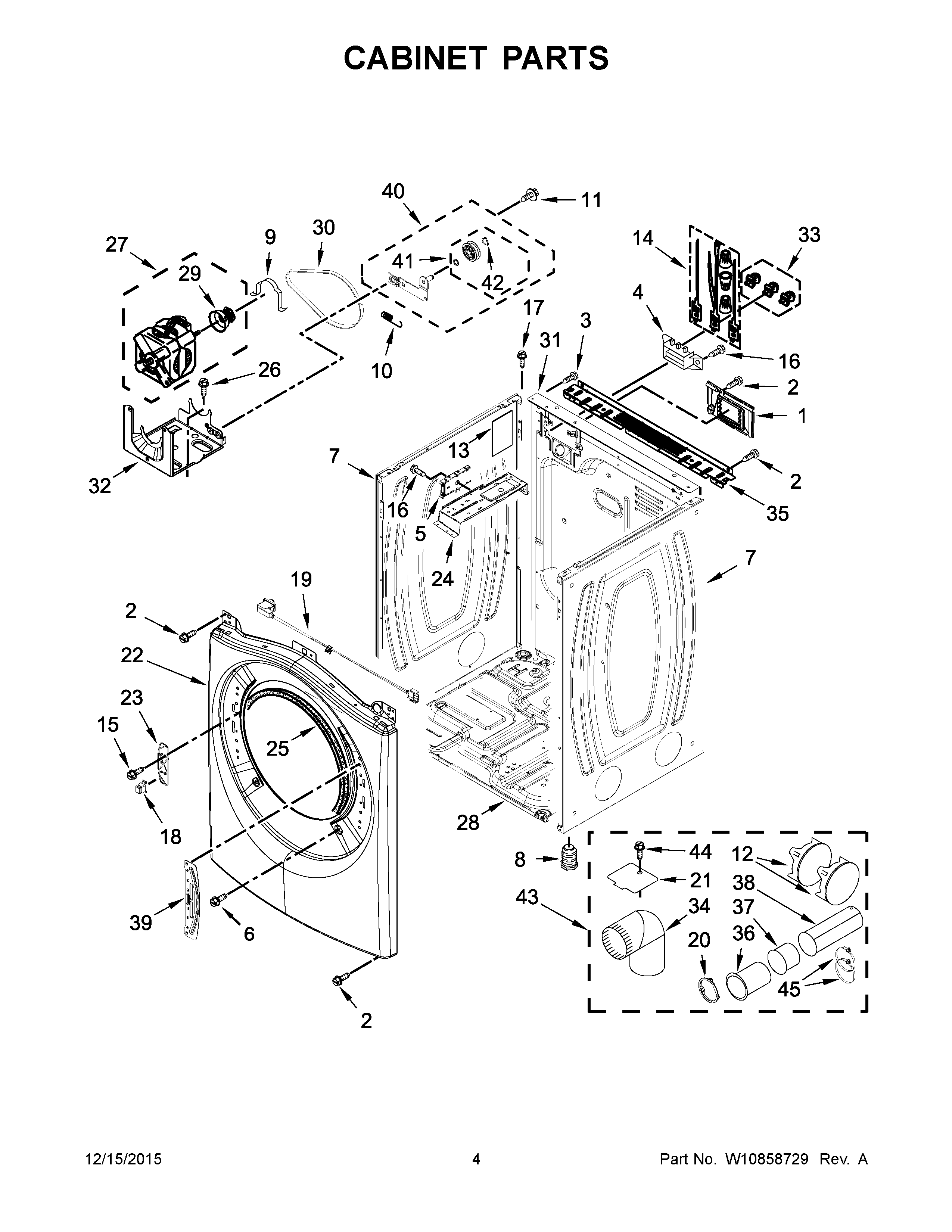

WED97HEDW1 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	WP488729 Whirlpool Refrigerator Door Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10849080 Whirlpool Electronic Control Board + Core
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
7A	W11315726 Whirlpool Panel Assembly
7C	W10628249 Whirlpool Panel Assembly
7B	WPW10468499 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	W11409002 Whirlpool Pad
14	279318 Whirlpool Terminal
15	SCREW
16	WP489463 Whirlpool Refrigerator Screw
18	W11240283 Whirlpool Catch Assembly
19	WPW10350906 Whirlpool Door Switch
20	WPW10344699 Whirlpool Collar
21	WPW10354249 Whirlpool Cover
22A	WPW10463309 Whirlpool Dishwasher Panel
22C	W10433063 Whirlpool Panel
22B	WPW10460923 Whirlpool Panel
22	WPW10363953 Whirlpool Dishwasher Panel
23	WPW10208250 Whirlpool Strike
24	BRACKET, CONTROL
25	WP3387242 Whirlpool Seal
26	SCREW
27	MOTOR-DRVE
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10487430 Whirlpool Rear Panel
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	WPW10208382 Whirlpool Dryer Bracket
36	PIPE, EXHAUST (MEDIUM)
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	BRACKET, DOOR HINGE
40	W10837240 Whirlpool Dryer Idler Pulley
41	279640 Whirlpool Dryer Idler Pulley Kit
42	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
43	W10704365 Whirlpool Dryer Exhaust Kit
45	WP696392 Whirlpool Hose Clamp
