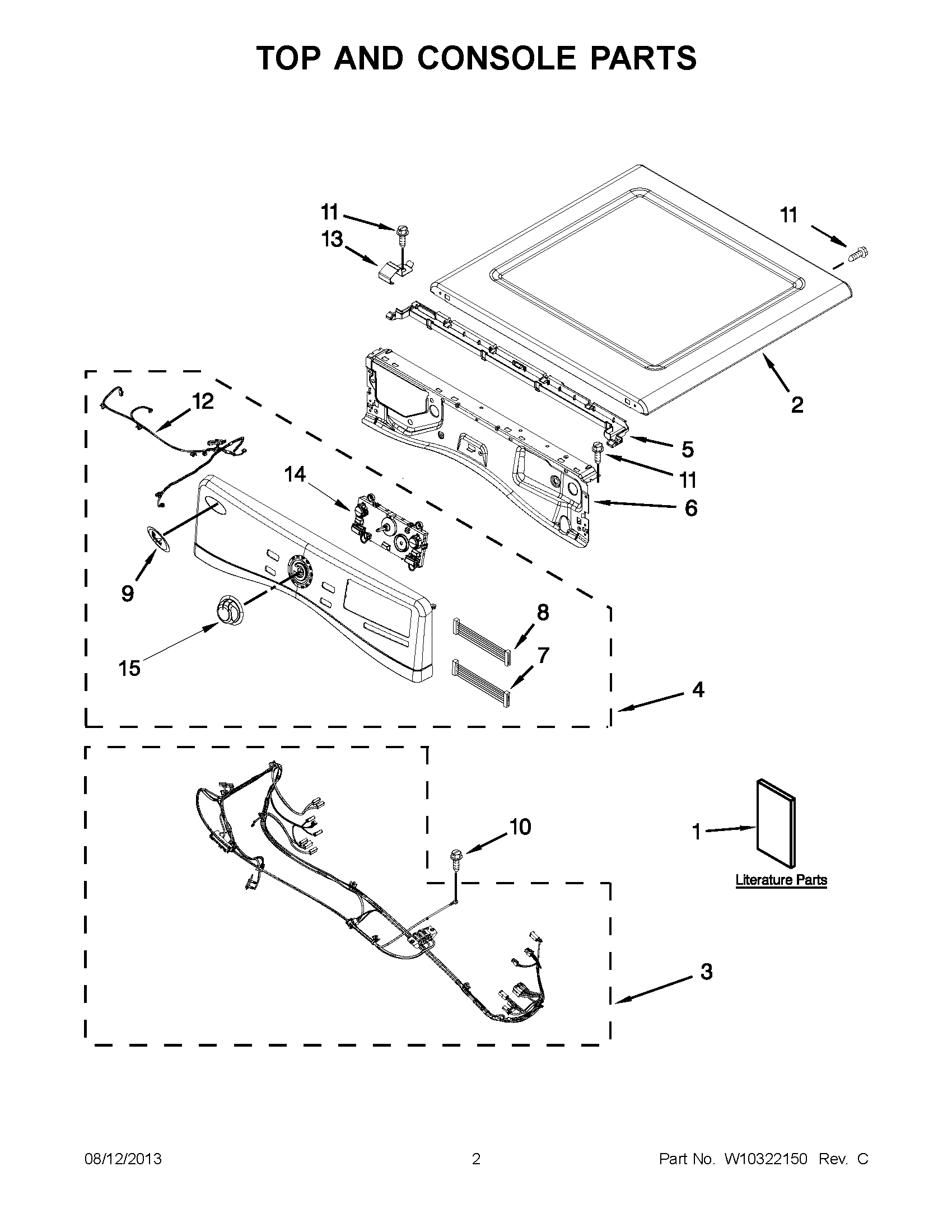

WED97HEXL0 01 – TOP AND CONSOLE PARTS

WED97HEXL0 01 – TOP AND CONSOLE PARTS

Written by

in

WED97HEXL0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2WPW10208383 Whirlpool Top Panel
2TOP (RED)
2WPW10316282 Whirlpool Top Assembly
3HARNESS, MAIN
4WPW10352485 Whirlpool Console
4PANEL, CONSOLE (SILVER)
4PANEL, CONSOLE (WHITE)
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7HARNESS, JUMPER UI
8W10267937 Whirlpool Wire Harness
9Medallion
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10267832 Whirlpool Wire
13W10317566 Whirlpool Clip
14UI, CENTER (INCLUDES KNOB)
15WPW10251394 Whirlpool Knob
