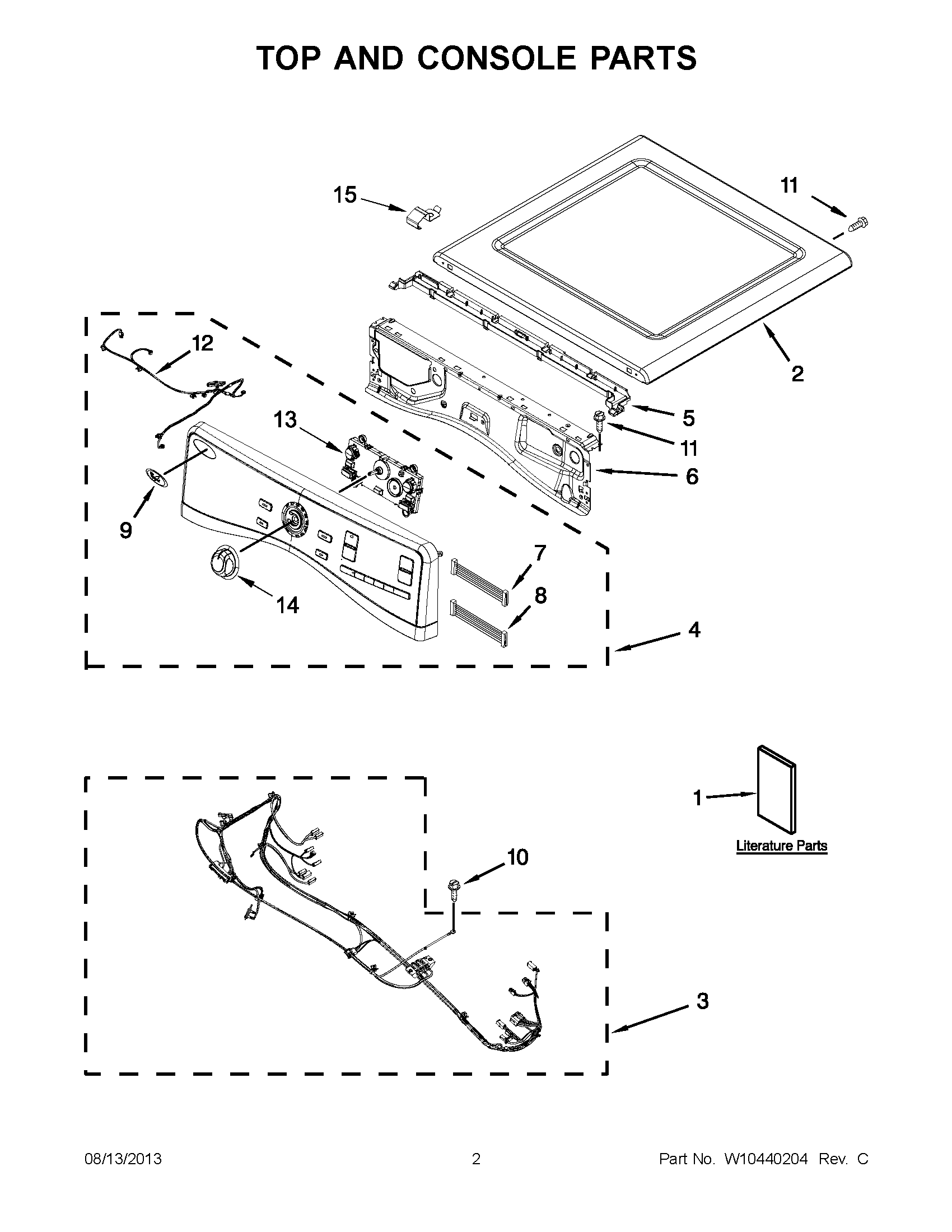

WED97HEXW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION, INSTRUCTION
1TECH SHEET
1WIRING DIAGRAM
2WPW10208383 Whirlpool Top Panel
2TOP (RED)
2WPW10316282 Whirlpool Top Assembly
3HARNESS, MAIN
4PANEL, CONSOLE (SILVER)
4WPW10388456 Whirlpool Console
4PANEL, CONSOLE (WHITE)
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7HARNESS, JUMPER UI
8W10267937 Whirlpool Wire Harness
9Medallion
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10450060 Whirlpool Wire
13UI, CENTER (INCLUDES KNOB)
14WPW10251394 Whirlpool Knob
15W10317566 Whirlpool Clip
